917300 - Ariens 27-Ton Log Splitter, 6hp Subaru (SN: 010000 - 011999) Frame And Tires Parts Diagram

27-Ton Log Splitter, 6hp Subaru

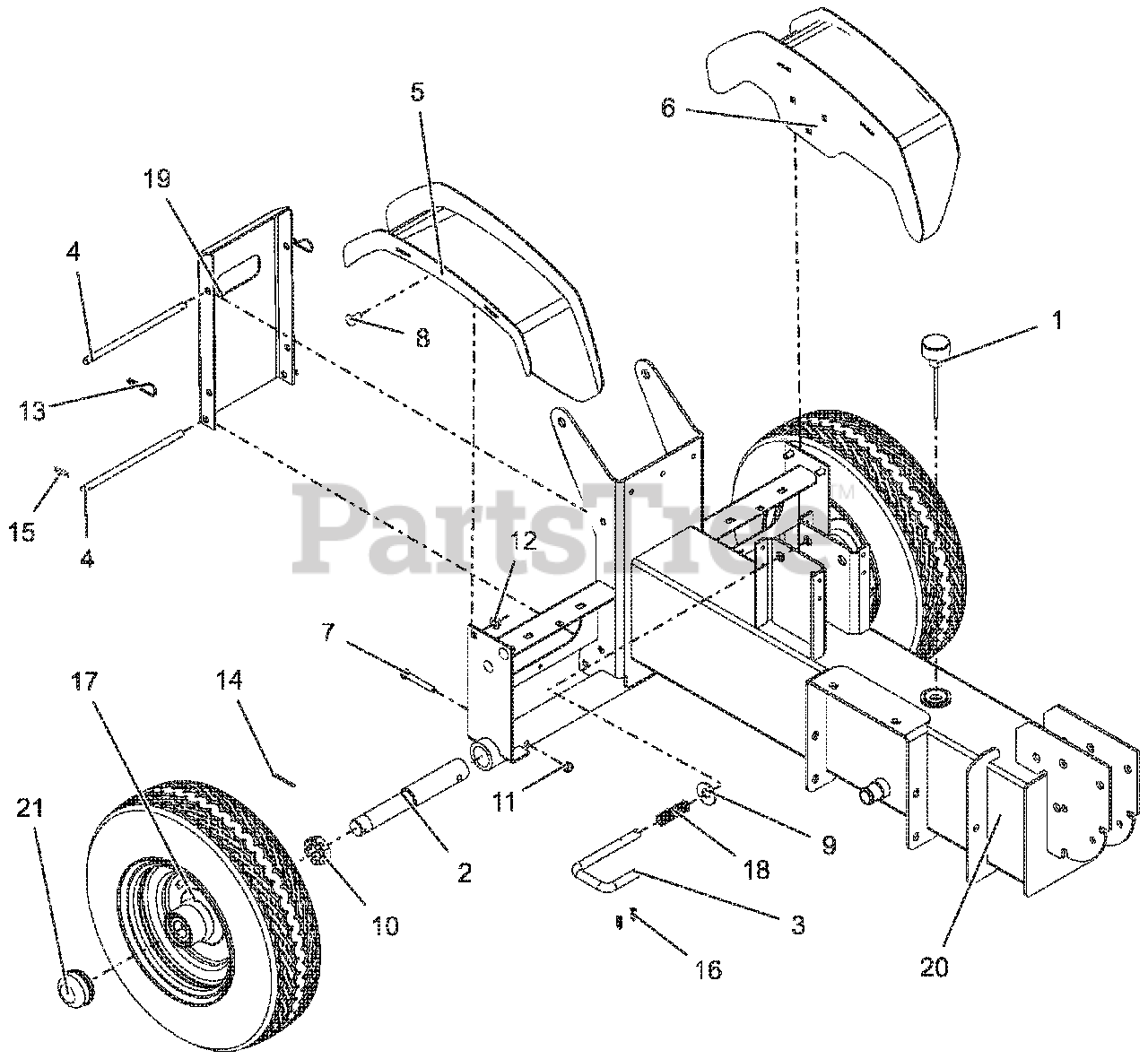

Frame And Tires Parts Diagram

  • Title

1

Ariens 00463000

BREATHER, DIPSTICK

$

$

Not available

2

Ariens 03857000

AXLE, SPLITTER

$86.99

$

Usually ships in 4-12 days

0

3

Ariens 03857500

LOCK, BEAM

$

$

Not available

4

Ariens 04852351

PIN, .373 X 7.30 X 2X .109 THRU (BLACK)

$

$

Not available

5

Ariens 04969759

WLDMT, FENDER -RH (ORANGE)

$184.99

$

Usually ships in 4-12 days

0

6

Ariens 04969859

WLDMT, FENDER -LH (ORANGE)

$184.99

$

Usually ships in 4-12 days

0

7

Ariens 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

10

Ariens 06513100

NUT, SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06712900

HAIR, PIN #7 CLIP .094 X 2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

14

Ariens 06713800

PIN, CTR .15 X 1.50 YWZC

$3.99

$

In Stock, Qty 5

0

15

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07101210

ASSM TIRE\WHEEL, 4.80/4.00-8 P47 GRAY

$

$

Not available

18

Ariens 08325900

SPRG, COMPRESSION .058X.65X2.13

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 51700400

SUPPORT, REAR LEG

$96.99

$

Usually ships in 4-12 days

0

20

Ariens 51705300

WLDMT, CHASSIS -SPLITTER (ORANGE)

$

$

Not available

21

Ariens M135582

CAP, DUST
(Superseded to 05117700)

$5.99

$

In Stock, only 2 left!

0
