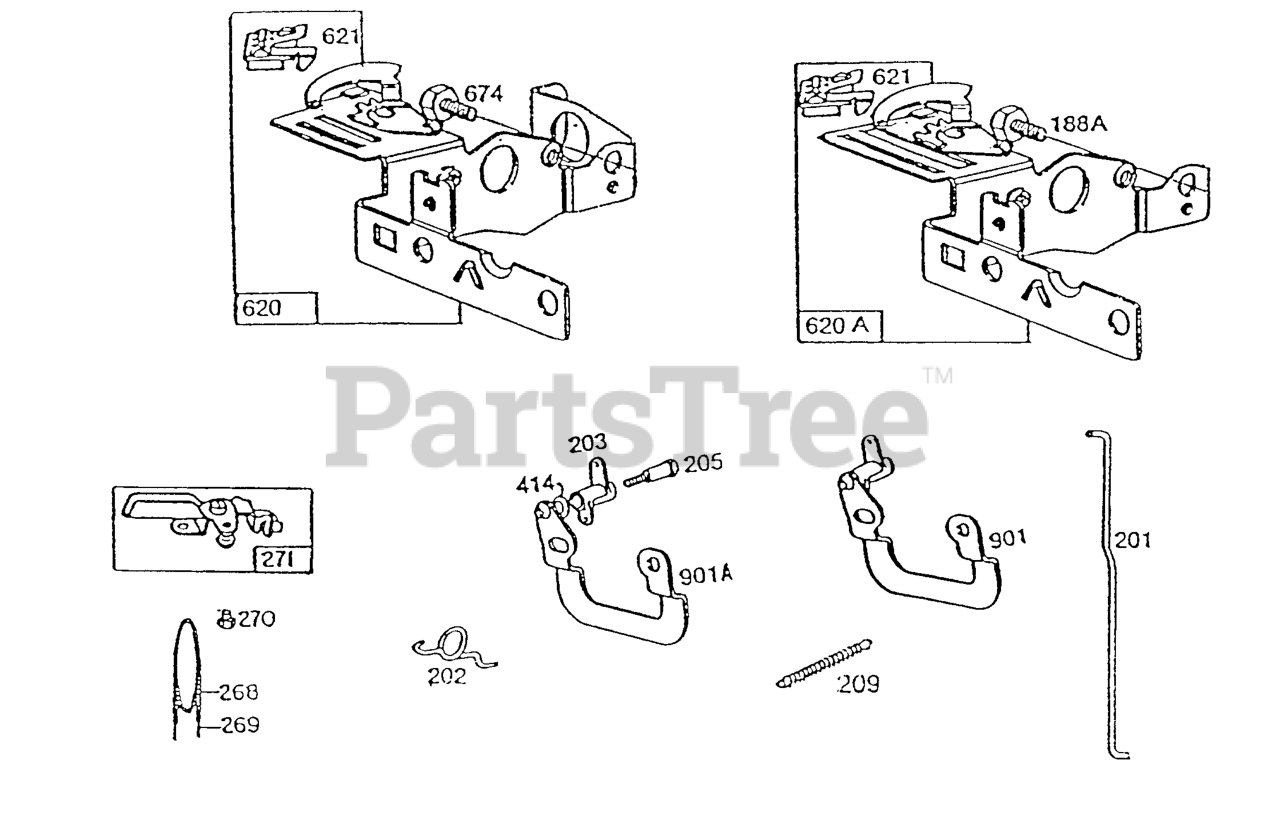

91708-0120-01 - Briggs & Stratton Vertical Engine Control Bracket Assemblies Parts Diagram

Vertical Engine

Control Bracket Assemblies Parts Diagram

  • Title
188A

Briggs & Stratton 93847

Screw-Tank Mounting
(Superseded to 691088)

$3.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 262066

Link-Governor

$7.49

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 262065

Link-Throttle

$5.49

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280533

Crank-Bell

Note: Used Before Code Date 87020900

$1.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 87020900

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 262077

Spring-Governor

$6.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Needed, Specify Length in Inches; if a Shorter Casing is Needed, Order Part No. 66986 and Cut to Required Length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length in Inches; if Shorter Wire is Needed, Order Part No. 26099 and Cut to Required Length

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

Note: Used Before Code Date 87020900

$7.49

$

In Stock, only 1 left!

0

620A

Briggs & Stratton 398861

Plate-Carburetor Control

$32.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

674

Briggs & Stratton 94117

Screw-Tank To Bracket
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

901A

Briggs & Stratton 398368

Bracket-Bell Crank

$7.99

$

In Stock, only 1 left!

0

901

Briggs & Stratton 398368

Bracket-Bell Crank

$7.99

$

In Stock, only 1 left!

0
