917036 - Ariens 34-Ton Log Splitter (SN: 000101 & Above) Hydraulic Hoses And Fittings Parts Diagram
34-Ton Log Splitter

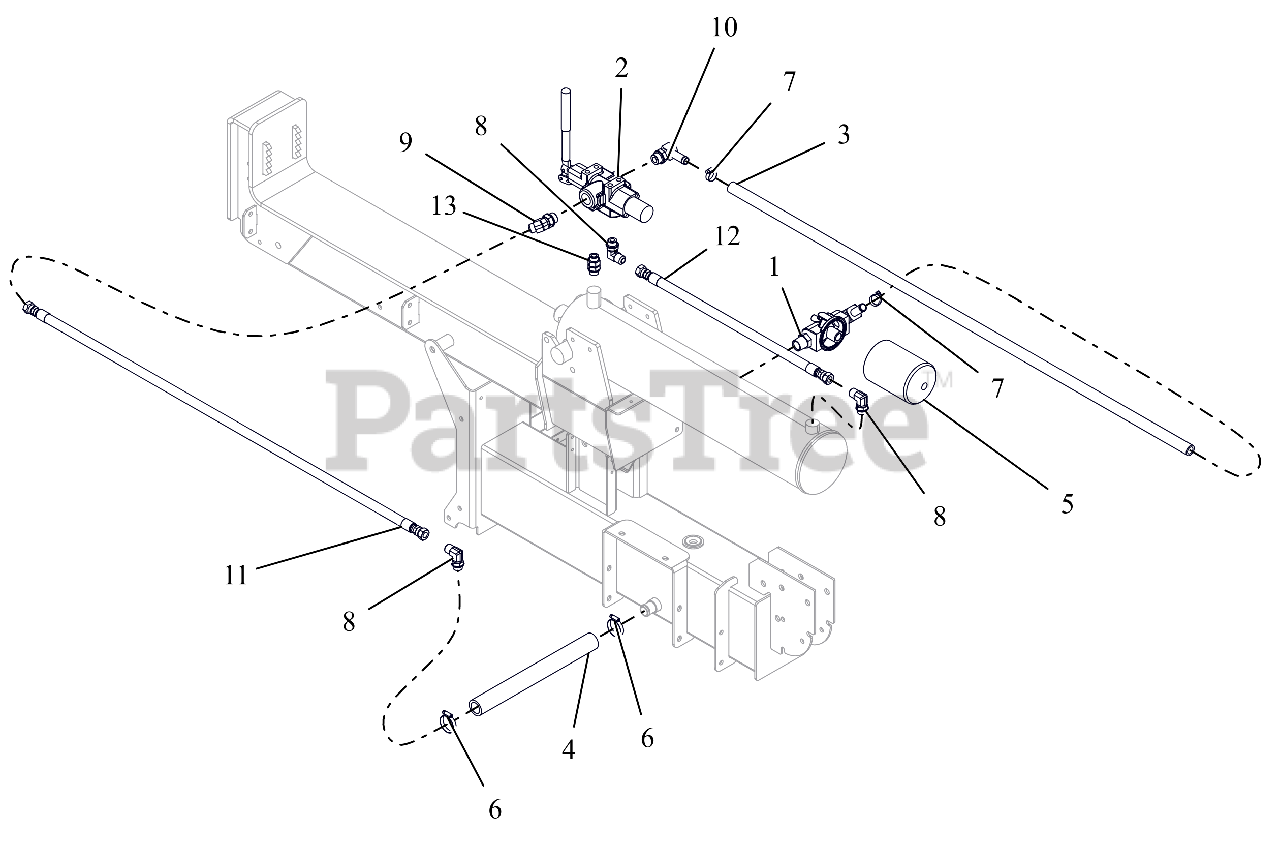

Hydraulic Hoses And Fittings Parts Diagram
Ariens 61700400
ASM, FILTER HEAD
$71.99
$
Usually ships in 4-12 days
Ariens 03846300
VALVE CONTROL-SPLITTER
$297.99
$
In Stock, only 2 left!
Ariens 03859600
HOSE,HYD RETURN 10LOLA X 53"
$78.99
$
Usually ships in 4-12 days
Ariens 03859700
HOSE,HYD SUCTION 16G4H X 13.5
$55.99
$
Usually ships in 4-12 days
Ariens 04975800
FILTER,HYDRAULIC OIL-NO BYPASS
$36.99
$
Usually ships in 4-12 days
Ariens 06922200
CLAMP-HOSE 1.50X.81X1.42
$5.99
$
Usually ships in 4-12 days
Ariens 06923500
CLAMP,.88 DIA. HOSE
$1.99
$
In Stock, Qty 6
Ariens 07001535
FTG,HYD 6801-8-8
$28.99
$
Usually ships in 4-12 days
Ariens 07001537
FTG,HYD 6802-8-10
$25.99
$
Usually ships in 4-12 days
Ariens 07001538
FTG,HYD 4601-10-10
$40.99
$
Usually ships in 4-12 days
Ariens 07001539
HOSE, ASM - 46"
$141.99
$
Usually ships in 4-12 days
Ariens 07001540
HOSE, HYD - 22"
$68.99
$
Usually ships in 4-12 days
Ariens 07001713
FTG, HYD - STR 08MAORB-08MORB
$11.99
$
In Stock, Qty 7
