917035 - Ariens 27-Ton Log Splitter (SN: 000101 & Above) Hydraulic Hoses And Fittings Parts Diagram

27-Ton Log Splitter

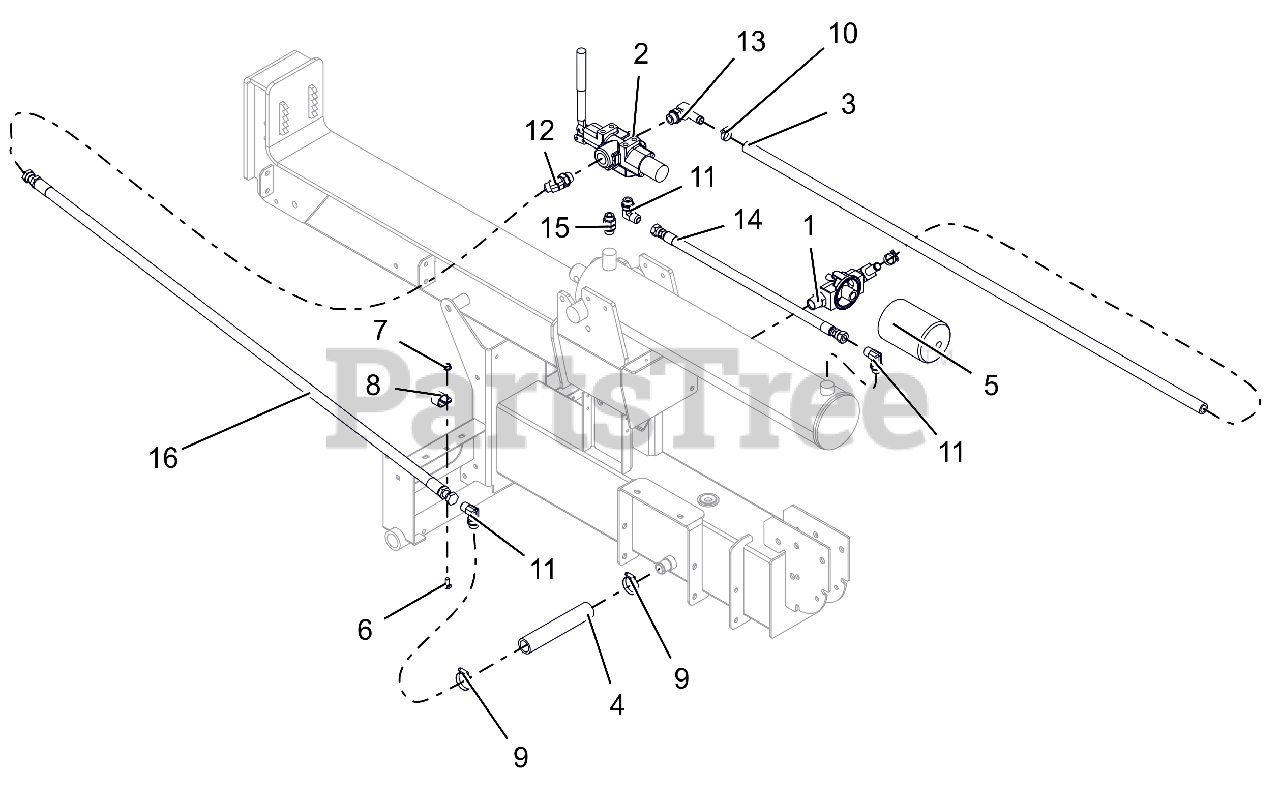

Hydraulic Hoses And Fittings Parts Diagram

  • Title

1

Ariens 61700400

ASM, FILTER HEAD

$71.99

$

Usually ships in 4-12 days

0

2

Ariens 03846300

VALVE CONTROL-SPLITTER

$297.99

$

In Stock, only 2 left!

0

3

Ariens 03859600

HOSE,HYD RETURN 10LOLA X 53"

$78.99

$

Usually ships in 4-12 days

0

4

Ariens 04594300

HOSE, HYD - SUCTION 7.375"

$

$

Not available

5

Ariens 04975800

FILTER,HYDRAULIC OIL-NO BYPASS

$36.99

$

Usually ships in 4-12 days

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

11

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

12

Ariens 07001537

FTG,HYD 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 07001538

FTG,HYD 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

14

Ariens 07001540

HOSE, HYD - 22"

$68.99

$

Usually ships in 4-12 days

0

15

Ariens 07001713

FTG, HYD - STR 08MAORB-08MORB

$11.99

$

In Stock, Qty 7

0

16

Ariens 07001717

HOSE, HYD - 58"

$86.99

$

Usually ships in 4-12 days

0
