917034 - Ariens 34-Ton Log Splitter (SN: 000101 - 004999) Frame And Tires Parts Diagram

34-Ton Log Splitter

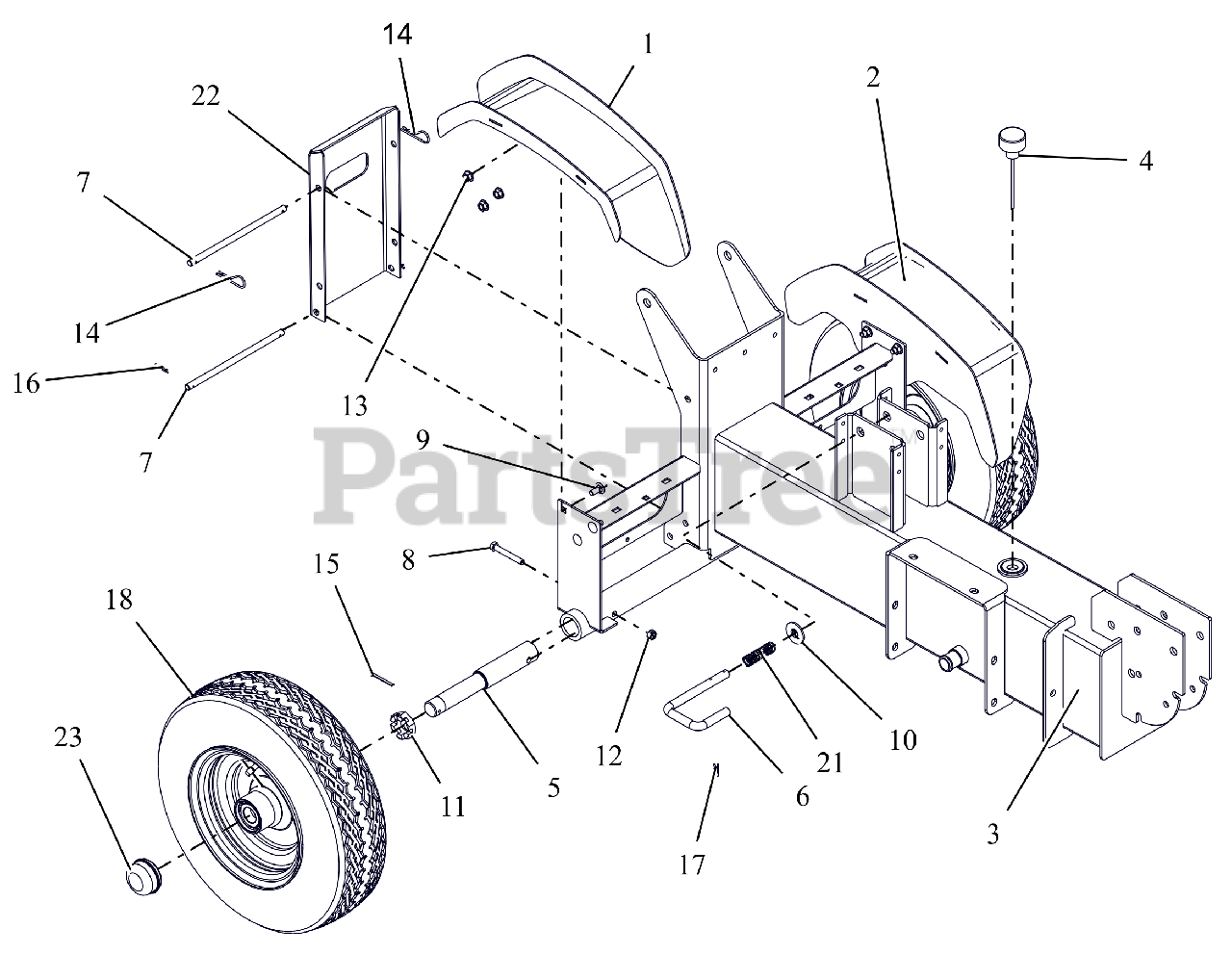

Frame And Tires Parts Diagram

  • Title

1

Ariens 04969759

WMT-FENDER-RH

$184.99

$

Usually ships in 4-12 days

0

2

Ariens 04969859

WMT-FENDER-LH

$184.99

$

Usually ships in 4-12 days

0

3

Ariens 51703800

CHASSIS-SPLITTER W/SFTY DECALS

$

$

Not available

4

Ariens 00463000

BREATHER, DIPSTICK

$

$

Not available

5

Ariens 03857000

AXLE, SPLITTER

$86.99

$

Usually ships in 4-12 days

0

6

Ariens 03857500

LOCK, BEAM

$

$

Not available

7

Ariens 04852351

PIN, .373 X 7.30 X 2X.109 THRU

$

$

Not available

8

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

11

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

15

Ariens 06713800

@PIN-CTR .15X1.50 YWZC

$3.99

$

In Stock, Qty 5

0

16

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07101210

ASM,TIRE/WHEEL 4.8/4-8 P47GRAY

$

$

Not available

21

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 51700400

REAR STAND W/DECALS (ARIENS)

$96.99

$

Usually ships in 4-12 days

0

23

Ariens M135582

CAP, DUST
(Superseded to 05117700)

$5.99

$

In Stock, only 2 left!

0
