917033 - Ariens 27-Ton Log Splitter (SN: 005000 & Above) Jack Stand w/ Wheel Kit - 71703400 Parts Diagram

27-Ton Log Splitter

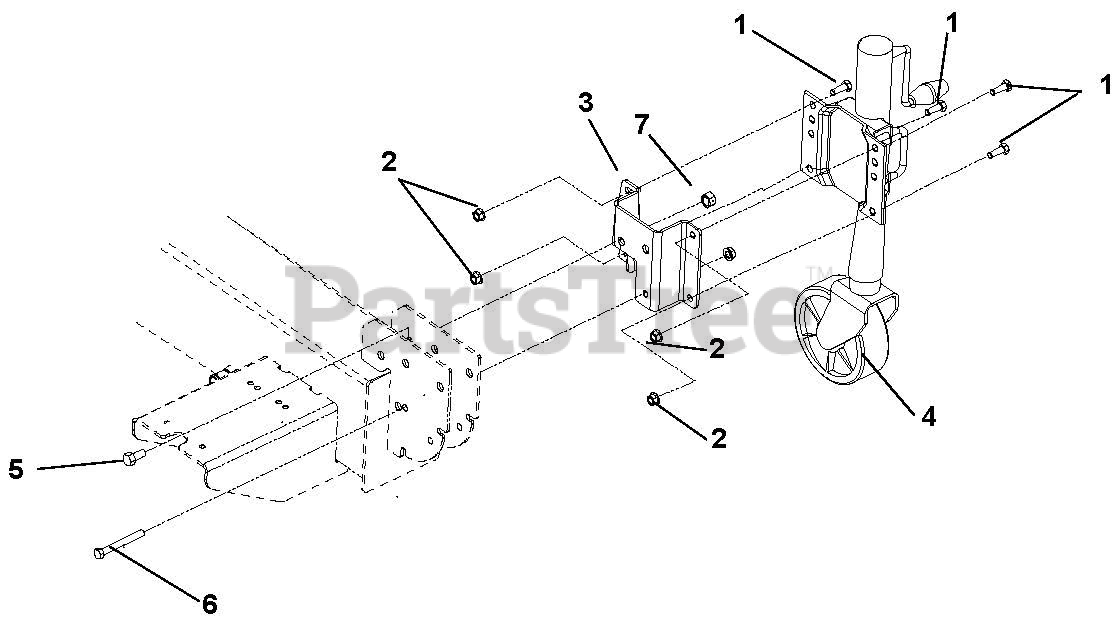

Jack Stand w/ Wheel Kit - 71703400 Parts Diagram

  • Title

1

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: Bolt, Hex .38-16 x 1.00 GR5

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: Nut, Top Flange Locking .38-16

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03938251

BRACKET, MOUNTING

Note: Bracket, Mounting

$

$

Not available

4

Ariens 03938300

STAND, JACK-W/WHEEL

Note: Stand, Jack w/Wheel

$142.99

$

Usually ships in 4-12 days

0

5

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: Bolt, Hex .50-13 x 1.00

$2.49

$

In Stock, Qty 7

0

6

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

Note: Bolt, Hex .38-16 x 3.25 GR5

$3.99

$

In Stock, Qty 20+

0

7

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

Note: Nut, Center Locking Flange .50-13

$1.49

$

In Stock, Qty 20+

0
