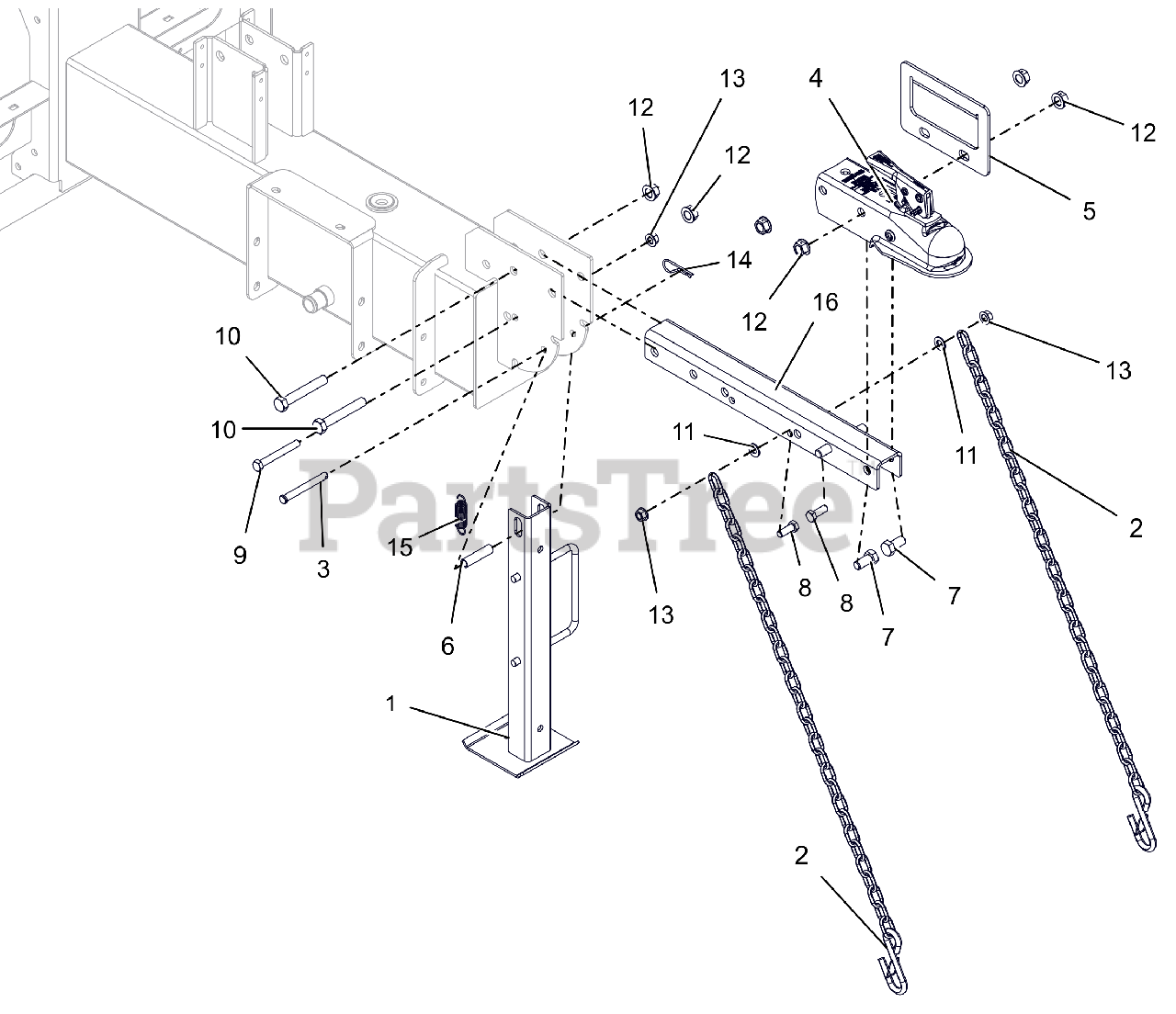

917033 - Ariens 27-Ton Log Splitter (SN: 005000 & Above) Hitch And Stand Parts Diagram

27-Ton Log Splitter

Hitch And Stand Parts Diagram

  • Title

1

Ariens 03938151

WLDMT, JACK STAND

$170.99

$

Usually ships in 4-12 days

0

2

Ariens 04649800

CHAIN, SAFETY 3/16"-30LINK

$39.99

$

Usually ships in 4-12 days

0

3

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 2 left!

0

4

Ariens 05131100

COUPLER-BALL 2.000"

$85.99

$

Usually ships in 4-12 days

0

5

Ariens 04378651

HANDLE, SPLITTER DRAW BAR

$16.99

$

Usually ships in 4-12 days

0

6

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

15

Ariens 08300435

SPRG, TENSION .063X.625X2.50

$

$

Not available

16

Ariens 51705700

HITCH BAR W/SAFETY DECAL

$

$

Not available
