917030 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 017000 & Above) Chassis Parts Diagram

22-Ton Log Splitter, 174cc Subaru

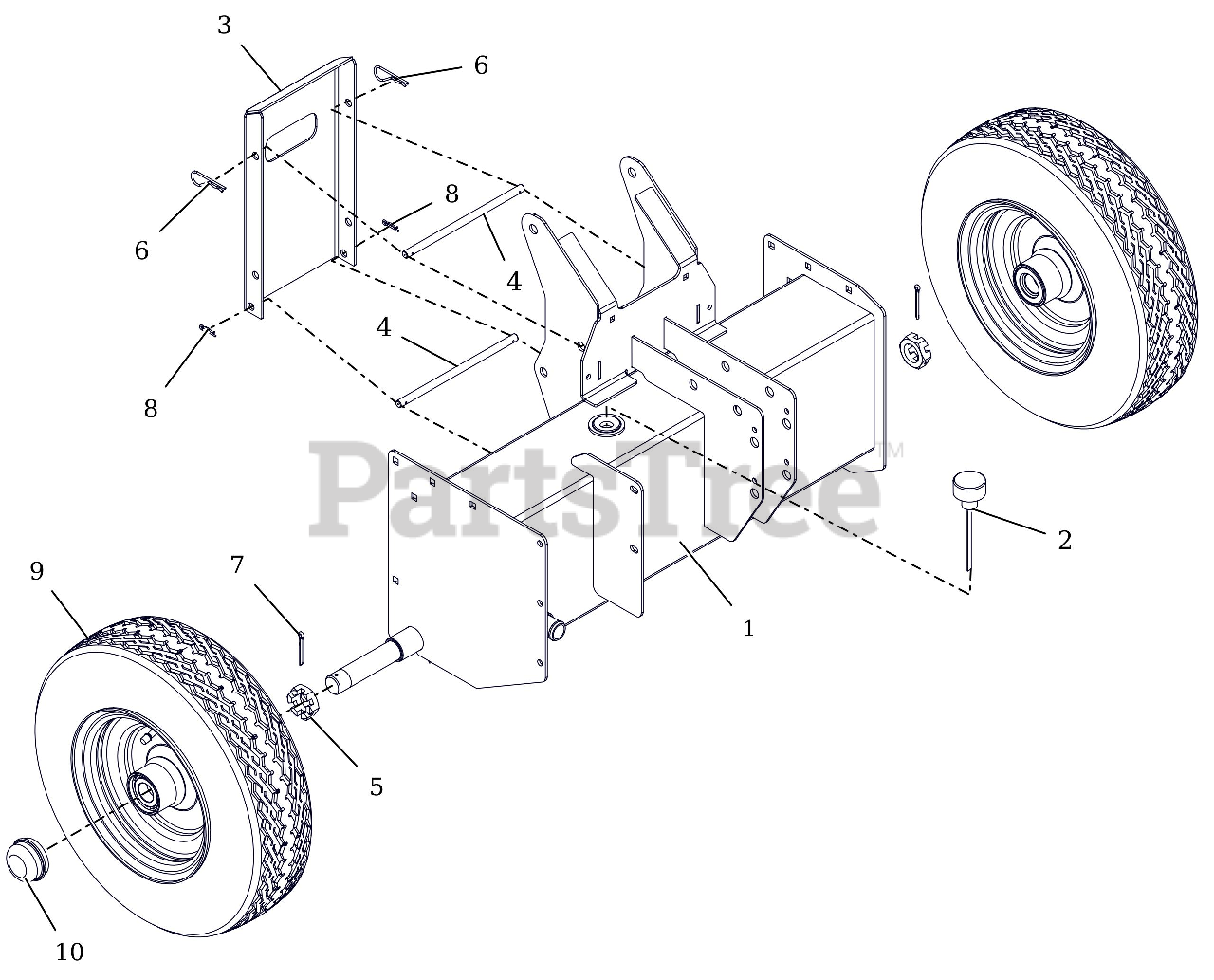

Chassis Parts Diagram

  • Title
1

Ariens 51704900

CHASSIS-SPLIT W/SFTY DECAL-22T

$

$

Not available

2

Ariens 00463000

BREATHER, DIPSTICK

$

$

Not available

3

Ariens 51700400

REAR STAND W/DECALS (ARIENS)

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 04852351

PIN, .373 X 7.30 X 2X.109 THRU

$

$

Not available

5

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

7

Ariens 06713800

@PIN-CTR .15X1.50 YWZC

$3.99

$

In Stock, Qty 5

0

8

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07101210

ASM,TIRE/WHEEL 4.8/4-8 P47GRAY

$

$

Not available

10

Ariens 05117700

CAP-DUST

$5.99

$

In Stock, only 2 left!

0
