917030 - Ariens 22-Ton Log Splitter, 174cc Subaru (SN: 000101 - 011999) Beam Parts Diagram

22-Ton Log Splitter, 174cc Subaru

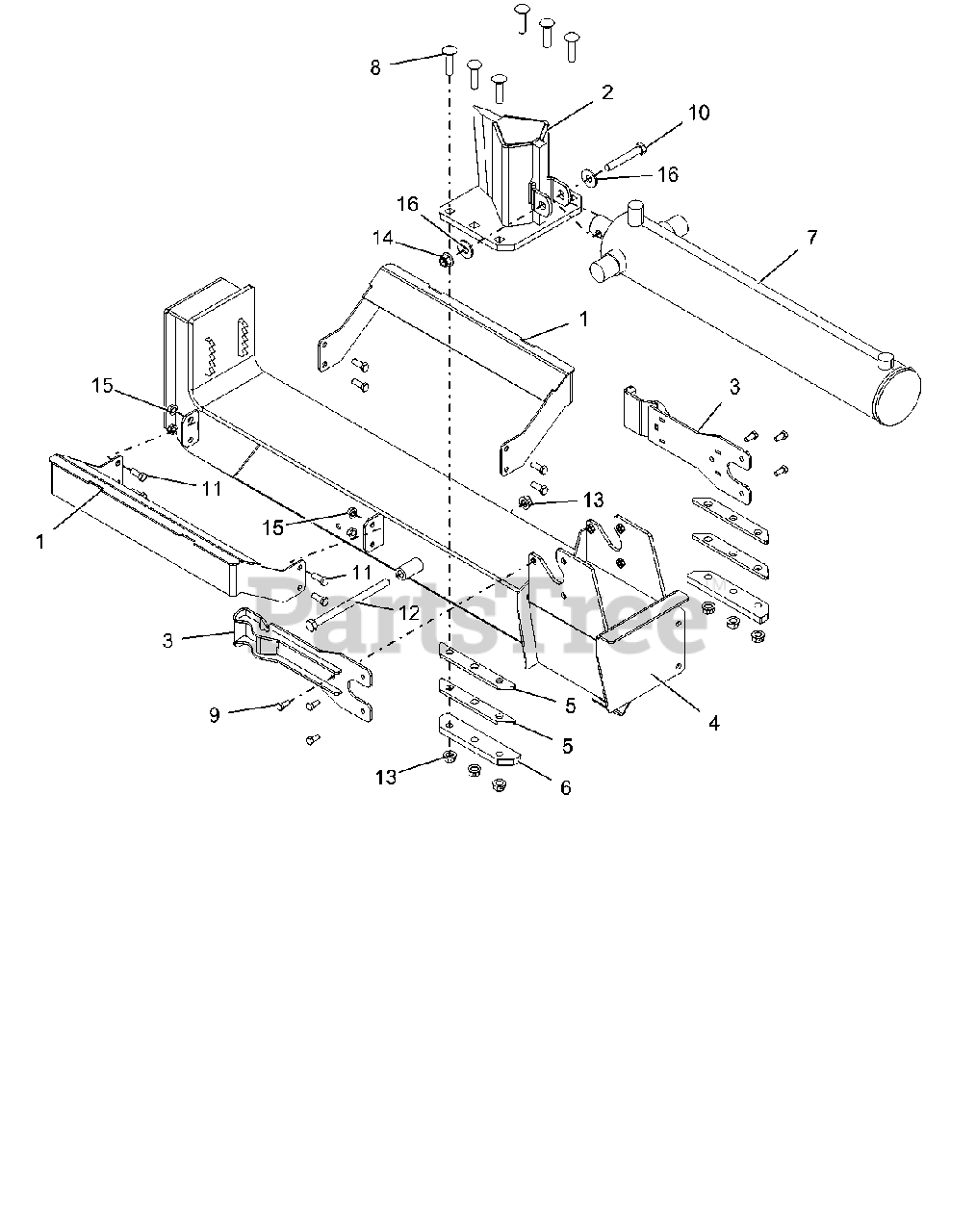

Beam Parts Diagram

  • Title

1

Ariens 04590851

WLDMT, CRADLE, LOG SPLITTER

$168.99

$

In Stock, only 2 left!

0

2

Ariens 04824851

WMT, WEDGE - SPLITTER

$681.99

$

Usually ships in 4-12 days

0

3

Ariens 04861459

WLDMT, PLATE - STRIPPER

$142.99

$

In Stock, Qty 5

0

4

Ariens 04981451

WMT-BEAM-LOG SPLITTER

$

$

Not available

5

Ariens 03967151

SPACER, WEDGE

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 04353251

RETAINER,WEDGE

$24.99

$

In Stock, Qty 5

0

7

Ariens 51702600

CYLINDER, 4.0" W/DECALS

$882.99

$

Usually ships in 4-12 days

0

8

Ariens 06200208

BLT-RDHDSQNKFTH.50-13X2 G8YWZC
(Superseded to 06200422)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

13

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
