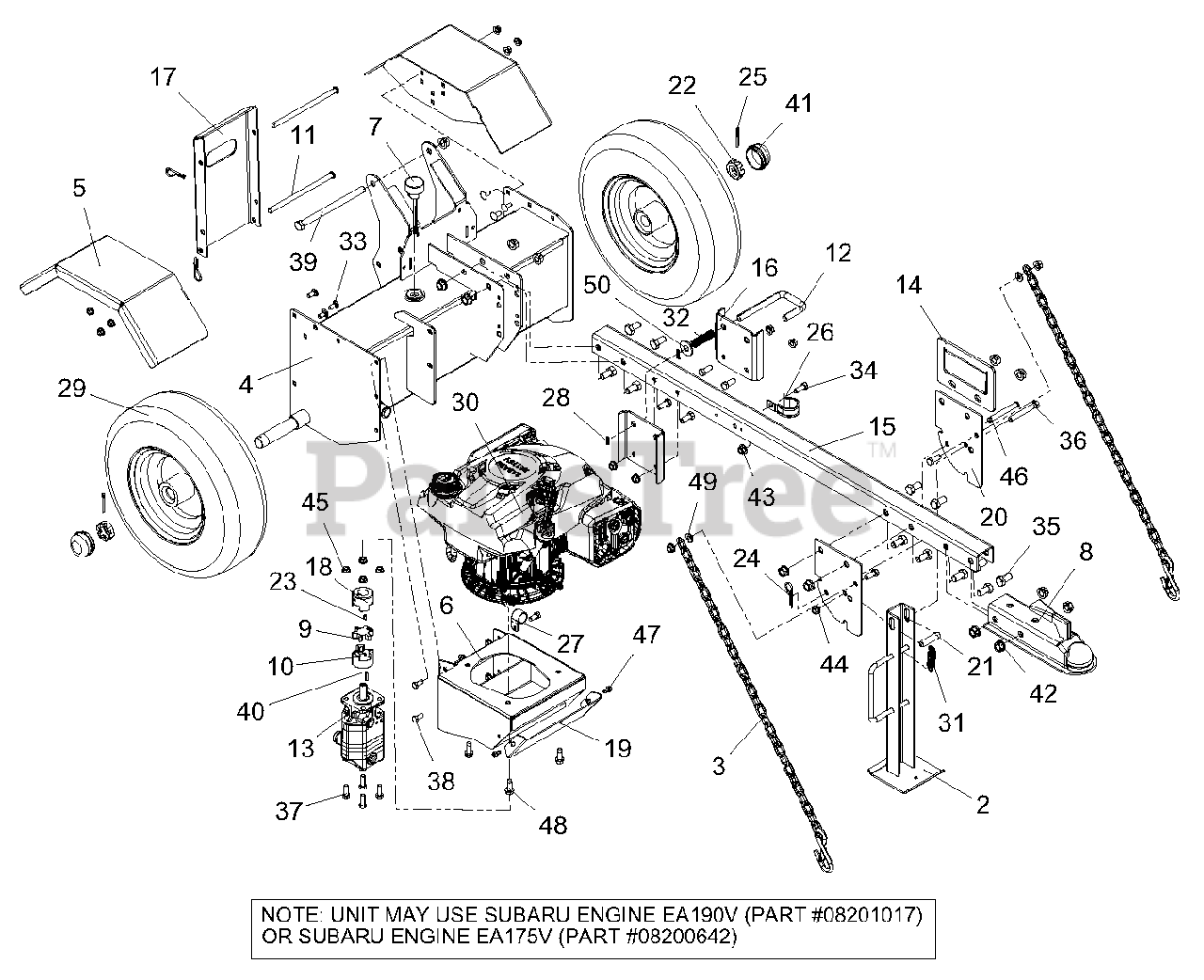

917014 - Gravely 22-Ton Log Splitter (SN: 000101 & Above) Frame, Engine And Pump Parts Diagram

22-Ton Log Splitter

Frame, Engine And Pump Parts Diagram

  • Title
2

Gravely 03938151

WLDMT, JACK STAND

$170.99

$

Usually ships in 4-12 days

0

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 04577053

WLDMT, CHASSIS-SPLITTER-(SMALL)-RED
(Superseded to 51703000)

Note: (SMALL)-RED

$

$

Not available

5

Gravely 03857153

WLDMT, FENDER

$105.99

$

Usually ships in 4-12 days

0

6

Gravely 04580153

WLDMT, ENGINE /PUMP MOUNT

$150.99

$

Usually ships in 4-12 days

0

7

Gravely 00463000

BREATHER, DIPSTICK

$

$

Not available

8

Gravely 03846600

HITCH, BALL - 2"
(Superseded to 51706100)

$

$

Not available

9

Gravely 03856200

SPIDER, URETHANE
(Superseded to 04586500)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 03856300

HUB, DRIVE COUPLING 1/2"
(Superseded to 04586600)

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 03857200

PIN, CLEVIS .375 x 7.25

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 03857500

LOCK, BEAM

$

$

Not available

13

Gravely 03926900

PUMP, SPLITTER - 11 GPM

$732.99

$

Usually ships in 4-12 days

0

14

Gravely 04378651

HANDLE, SPLITTER DRAW BAR-BLACK

$16.99

$

Usually ships in 4-12 days

0

15

Gravely 04577351

DRAWBAR, (CHANNEL)
(Superseded to 51702700)

Note: (CHANNEL)

$130.99

$

Usually ships in 4-12 days

0

16

Gravely 04577651

GUIDE, LOCK DOWN

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 04579653

SUPPORT, REAR LEG
(Superseded to 51701500)

$

$

Not available

18

Gravely 04586400

HUB, DRIVE COUPLING 7/8
(Superseded to 04586800)

$27.99

$

In Stock, only 1 left!

0

19

Gravely 04587853

COVER, COUPLING

$25.99

$

Usually ships in 4-12 days

0

20

Gravely 04635751

MOUNT, SPRG LOADED JACK

$28.99

$

Usually ships in 4-12 days

0

21

Gravely 05533500

SPCR, WHEEL .385 x .500 x 2.00

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 06513100

NUT, SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 06600004

KEY, WDRF .125 x .50 x .20 (HRDEND)

Note: (HRDEND)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06712900

HAIR, PIN #7 CLIP .094 x 2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

25

Gravely 06713800

PIN, CTR .15 x 1.50 YWZC

$3.99

$

In Stock, Qty 5

0

26

Gravely 06900526

CLAMP, CUSHIONED STEEL, 1.25

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07100806

WHEEL, SPLITTER 8 x 3.75 W/4.125 GREY
(Superseded to 07101019)

$113.99

$

Usually ships in 4-12 days

0

30

Gravely 08200642

ENGINE, SABARU EA175V SS 4.5HP

$

$

Not available

31

Gravely 08300435

SPRG, EXTENSION

$

$

Not available

32

Gravely 08325900

SPRG, COMPRESSION .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

33

Gravely 06215700

BLT-RDHDSQNK .31-18 x .75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 05948700

BLT-HEX .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05947100

BLT-HEX .50-13 x 1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

36

Gravely 05957800

BLT-HEX .38-16 x 3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 05946900

BLT-HEX .31-18 x 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05947000

BLT-HEX .31-18 x .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05978200

BLT-HEX .50-13 x 7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

40

Gravely 06606100

KEY-SQ .188 x .188 x .750

$3.99

$

In Stock, Qty 11

0

41

Gravely M135582

CAP, DUST
(Superseded to 05117700)

$5.99

$

In Stock, only 2 left!

0

42

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 02747500

PIN, CLEV .375 x 3.25 YWZC

$5.99

$

In Stock, only 2 left!

0

47

Gravely 07400034

SCR-TAP .25-20 x .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 07414100

SCR-TAP .38-16 x 1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

49

Gravely 06436200

WSHR-FL-STL .406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 06442000

WSHR-FL-STL .563 x 1.38 x .109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
