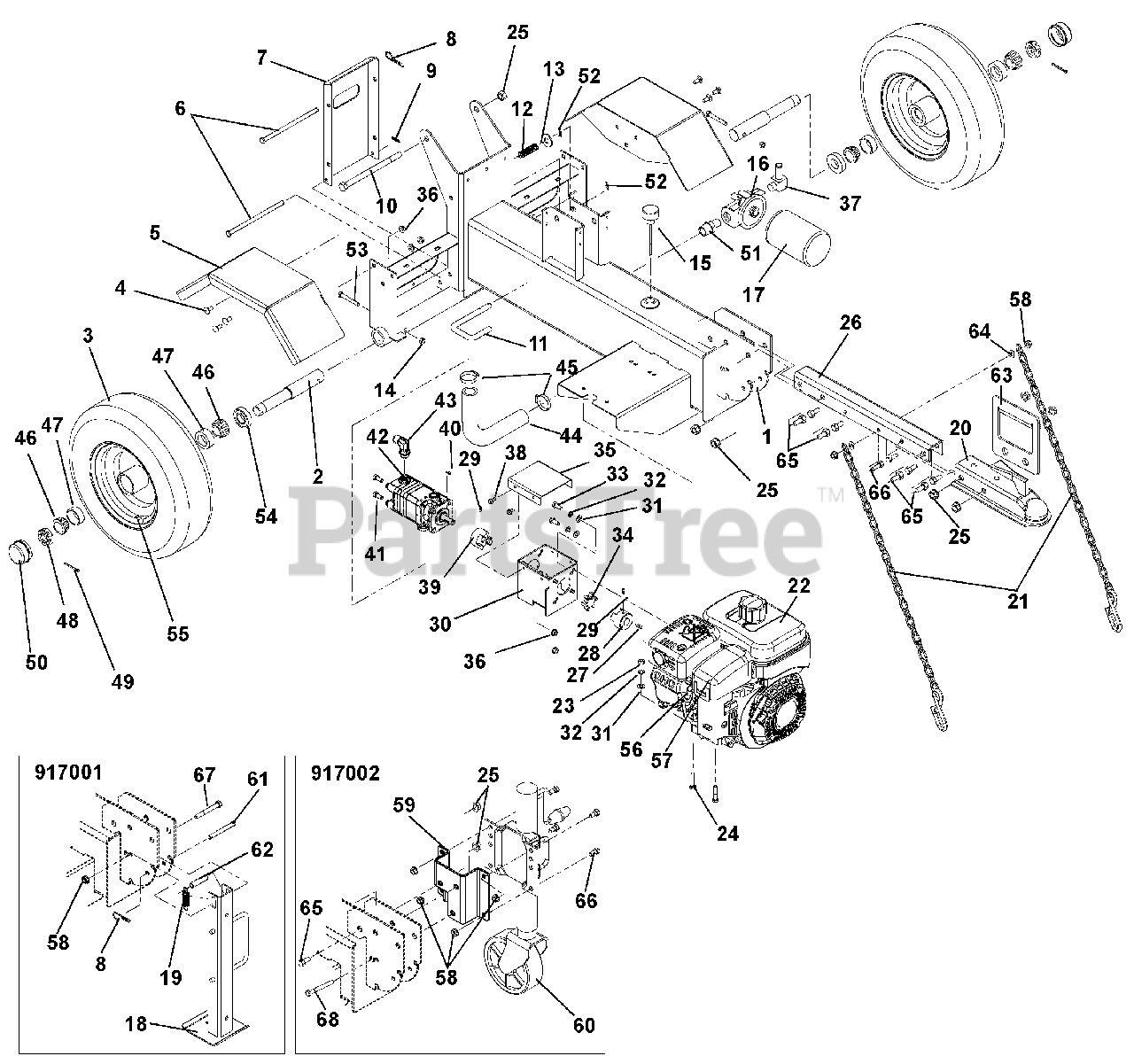

917001 - Ariens 27-Ton Log Splitter, 170cc Subaru (SN: 019000 & Above) Frame, Engine And Pump Parts Diagram

27-Ton Log Splitter, 170cc Subaru

Frame, Engine And Pump Parts Diagram

  • Title

1

Ariens 51700800

CHASSIS,SPLITTER W/SAFTY DECAL
(Superseded to 51703600)

$475.99

$

Usually ships in 4-12 days

0

2

Ariens 03857000

AXLE, SPLITTER

$86.99

$

Usually ships in 4-12 days

0

3

Ariens 07100806

WHEEL, SPLITTER
(Superseded to 07101019)

Note: (Includes Items 46, 47, 54 and 55)

$113.99

$

Usually ships in 4-12 days

0

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03857159

WLDMT, FENDER

$109.99

$

Usually ships in 4-12 days

0

6

Ariens 03857200

PIN, LOCK

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 51700400

REAR STAND W/DECALS (ARIENS)

$96.99

$

Usually ships in 4-12 days

0

8

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

9

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

11

Ariens 03857500

LOCK, BEAM

$

$

Not available

12

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

14

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 00463000

BREATHER, DIPSTICK

$

$

Not available

16

Ariens 04367300

HEAD,FILTER-3/4 NPT BYPASS

$

$

Not available

17

Ariens 03931900

FILTER,OIL-W/BYPASS

$26.99

$

In Stock, Qty 20+

0

18

Ariens 03938151

WLDMT, JACK STAND

Note: (917001)

$170.99

$

Usually ships in 4-12 days

0

19

Ariens 08300435

SPRG, TENSION .063X.625X2.50

Note: (917001)

$

$

Not available

20

Ariens 03846600

HITCH, BALL-2"
(Superseded to 51706100)

$

$

Not available

21

Ariens 04649800

CHAIN, SAFETY 3/16"-30LINK

$39.99

$

Usually ships in 4-12 days

0

22

Ariens 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (917001)

$

$

Not available

22

Ariens 08200635

ENGINE,SUBARU EX210DT1032-MP

Note: (917002)

$

$

Not available

23

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

24

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

25

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

Note: (917001)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

Note: (917002)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 51702300

BAR, HITCH - WITH DECALS

$

$

Not available

27

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 11

0

28

Ariens 04586700

COUPLER - DRIVE, 3/4"

$26.99

$

In Stock, only 1 left!

0

29

Ariens 06000222

SCR,SET .25-20X.75 PCPT SH

$1.99

$

In Stock, only 1 left!

0

30

Ariens 03858351

WLDMT, PUMP MOUNT BRKT

$61.99

$

In Stock, only 1 left!

0

31

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 04586500

SPIDER - URETHANE

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 51700600

COVER W/DECALS

$

$

Not available

36

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 07001602

FTG,HYD 4501-10-12-FG

$17.99

$

Usually ships in 4-12 days

0

38

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 04586600

COUPLER - DRIVE 1/2"

$25.99

$

In Stock, only 1 left!

0

40

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.49

$

In Stock, Qty 20+

0

41

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03926900

PUMP,SPLITTER-11 GPM

Note: (917001)

$732.99

$

Usually ships in 4-12 days

0

42

Ariens 03874000

PUMP,SPLITTER-13 GPM

Note: (917002)

$757.99

$

Usually ships in 4-12 days

0

43

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

44

Ariens 03859700

HOSE,HYD SUCTION 16G4H X 13.5

$55.99

$

Usually ships in 4-12 days

0

45

Ariens 06922200

CLAMP-HOSE 1.50X.81X1.42

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

47

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

48

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

49

Ariens 06713800

@PIN-CTR .15X1.50 YWZC

$3.99

$

In Stock, Qty 5

0

50

Ariens M135582

CAP, DUST
(Superseded to 05117700)

$5.99

$

In Stock, only 1 left!

0

51

Ariens 07001601

FTG,HYD 5404-12-12

$13.99

$

Usually ships in 4-12 days

0

52

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

53

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 00092498

SEAL

$

$

Not available

55

Ariens 07520000

VALVE STEM ASS'Y

$2.49

$

In Stock, Qty 5

0

56

Ariens 20020001

SPARK PLUG,SP-170

$3.49

$

In Stock, only 3 left!

0

57

Ariens 20020002

FILTER,SP-170 SPONGE/ROBIN
(Superseded to 21551200)

$38.99

$

Usually ships in 4-12 days

0

58

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (917001)

$1.49

$

In Stock, Qty 20+

0

58

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (917002)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 03938259

BRACKET, MOUNTING

Note: (917002)

$

$

Not available

60

Ariens 03938300

STAND, JACK-W/WHEEL

Note: (917002)

$142.99

$

Usually ships in 4-12 days

0

61

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

Note: (917001)

$5.99

$

In Stock, only 1 left!

0

62

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

Note: (917001)

$9.49

$

Usually ships in 4-12 days

0

63

Ariens 04378651

HANDLE, SPLITTER DRAW BAR

$16.99

$

Usually ships in 4-12 days

0

64

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: (917001)

$2.49

$

In Stock, Qty 7

0

65

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

Note: (917002)

$2.49

$

In Stock, Qty 7

0

66

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (917001)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (917002)

$1.49

$

In Stock, Qty 20+

0

67

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: (917001)

$2.49

$

In Stock, Qty 20+

0

68

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

Note: (917002)

$3.99

$

In Stock, Qty 20+

0
