917001 - Ariens 27-Ton Log Splitter, 170cc Subaru (SN: 001400 - 003999) Beam And Hydraulic Cylinder Parts Diagram

27-Ton Log Splitter, 170cc Subaru

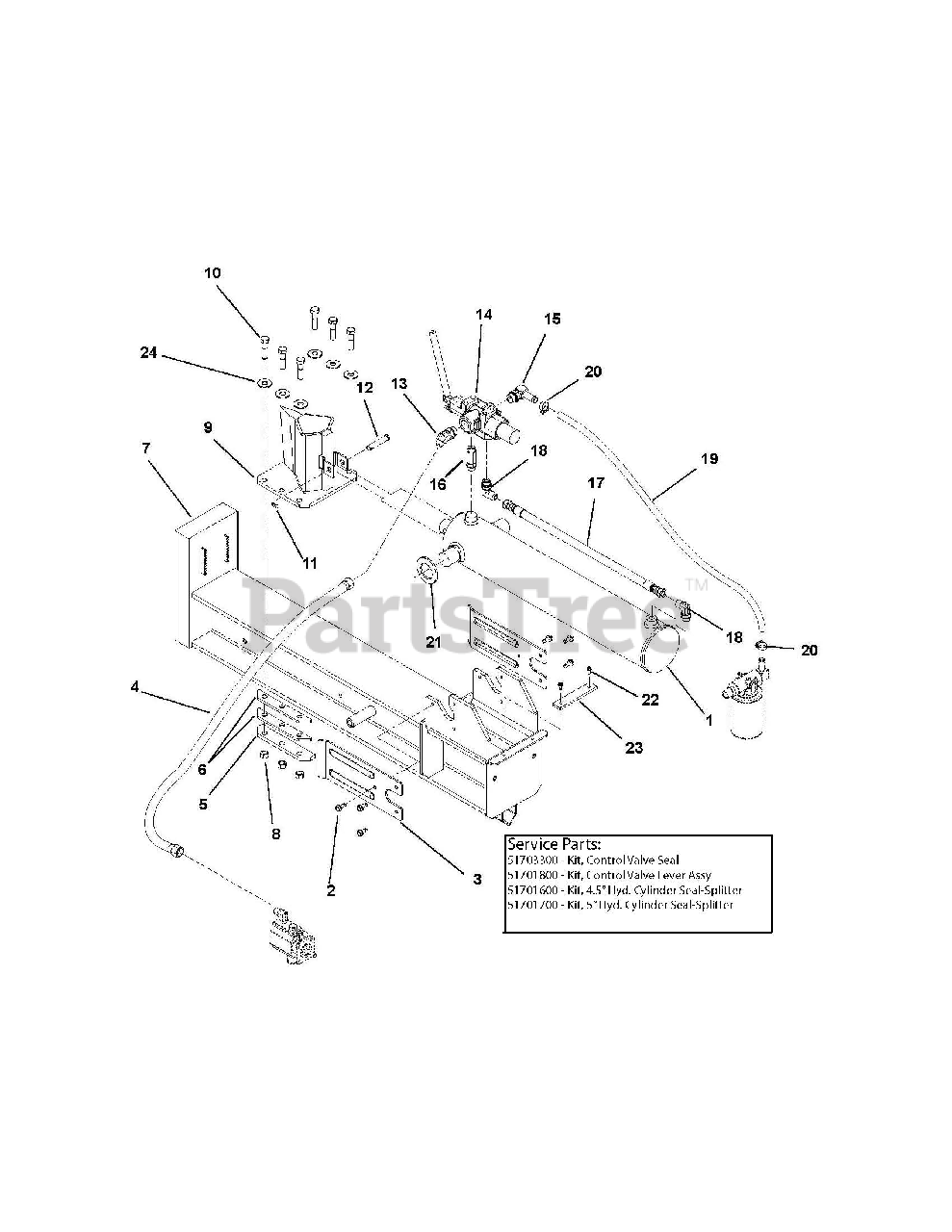

Beam And Hydraulic Cylinder Parts Diagram

  • Title

1

Ariens 51700200

CYLINDER,4.5 W/DECALS

Note: (917001)

$1018.99

$

Usually ships in 4-12 days

0

1

Ariens 51701600

KIT,4.5" HYD CYL SEAL-SPLITTER

Note: (917001)

$203.99

$

Usually ships in 4-12 days

0

1

Ariens 51700700

CYLINDER, 5' W/DECALS

Note: (917002)

$1086.99

$

Usually ships in 4-12 days

0

1

Ariens 51701700

KIT, 5" HYD CYL SEAL-SPLITTER

Note: (917002)

$135.99

$

Usually ships in 4-12 days

0

2

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

3

Ariens 03857359

PLATE,STRIPPER
(Superseded to 04861459)

$142.99

$

In Stock, Qty 5

0

4

Ariens 07001539

HOSE, ASM - 46"

$141.99

$

Usually ships in 4-12 days

0

5

Ariens 03967251

RETAINER, WEDGE
(Superseded to 04353251)

$24.99

$

In Stock, Qty 5

0

6

Ariens 03967151

SPACER, WEDGE

$23.99

$

In Stock, only 1 left!

0

7

Ariens 03835851

WLDMT, SPLITTER BEAM

$1276.99

$

Usually ships in 4-12 days

0

8

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

9

Ariens 03967051

WEDGE, LOG SPLITTER
(Superseded to 51701100)

$517.99

$

In Stock, only 1 left!

0

10

Ariens 05970700

BLT-HEX .500-13X2.00 GR8 YWZC
(Superseded to 05901940)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, only 1 left!

0

13

Ariens 07001537

FTG,HYD 6802-8-10

$25.99

$

Usually ships in 4-12 days

0

14

Ariens 03846300

VALVE CONTROL-SPLITTER

$297.99

$

In Stock, only 2 left!

0

14

Ariens 51703300

KIT,CONTROL VALVE SEAL

$

$

Not available

14

Ariens 51701800

KIT,CONTROL VALVE LEVER ASSY

$102.99

$

Usually ships in 4-12 days

0

15

Ariens 07001538

FTG,HYD 4601-10-10

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 07001534

FTG,HYD 6403-NWO-8-8-L

$51.99

$

In Stock, only 3 left!

0

17

Ariens 07001540

HOSE, HYD - 22"

$68.99

$

Usually ships in 4-12 days

0

18

Ariens 07001535

FTG,HYD 6801-8-8

$28.99

$

Usually ships in 4-12 days

0

19

Ariens 03859600

HOSE,HYD RETURN 10LOLA X 53"

$78.99

$

Usually ships in 4-12 days

0

20

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

21

Ariens 06400905

WSHR-FL-STL 1.57X2.25X.25 YWZC

Note: (917001)

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (917001)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03835751

SPACER, CYLINDER

Note: (917001)

$

$

Not available

24

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
