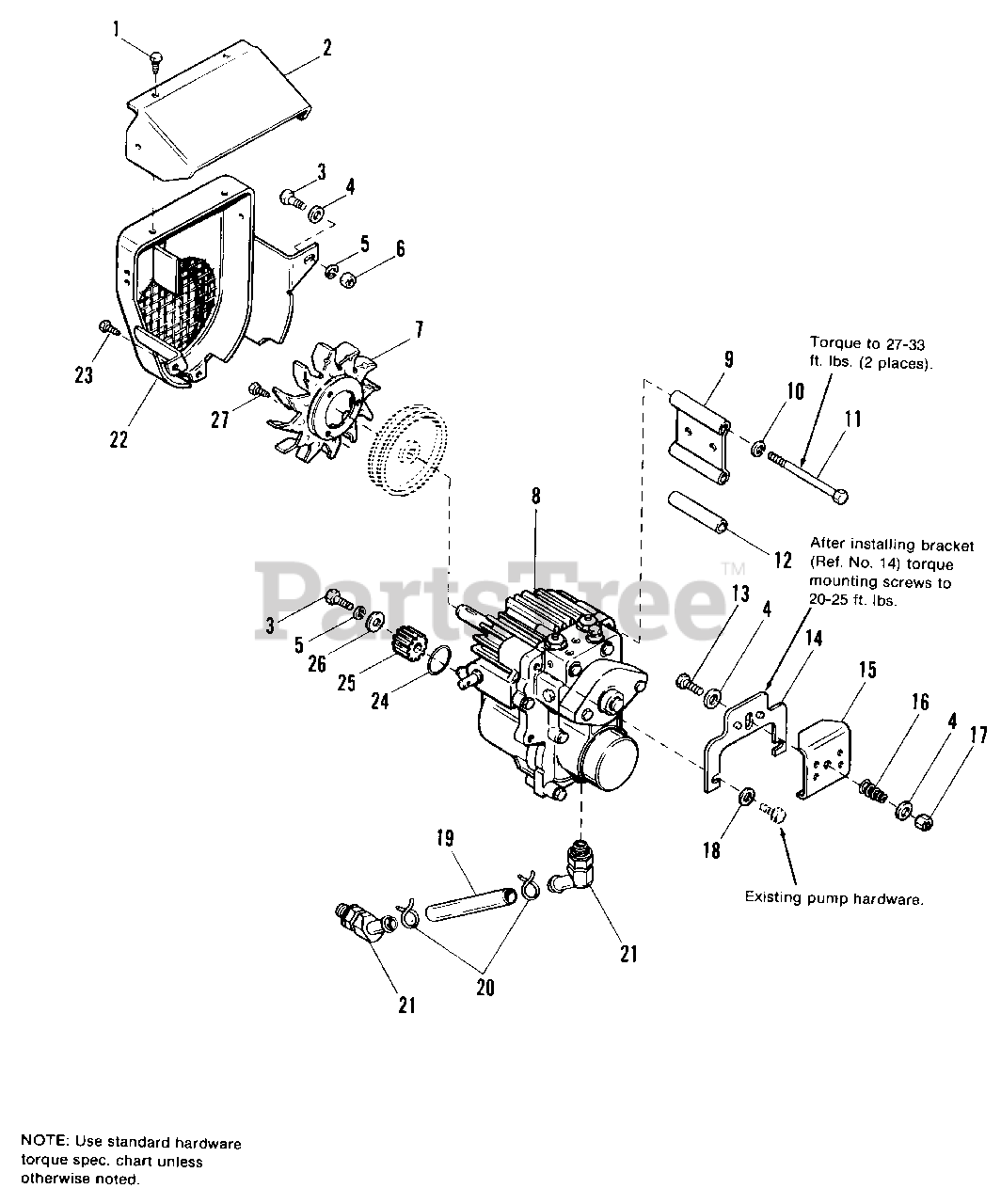

917 H (1691135) - AGCO 48" Garden Tractor, 17hp Hydrostatic Pump Parts Diagram

48" Garden Tractor, 17hp

Hydrostatic Pump Parts Diagram

  • Title

1

Simplicity 2823735

SCREW, Self-Tapping, #10 x 3/8

$

$

Not available

2

Simplicity 2178779SM

DEFLECTOR, Shroud

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

4

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2166022SM

FAN, Pulley

$115.99

$

Usually ships in 2-12 days

0

8

Simplicity 1671582SM

HYDROSTATIC PUMP & MOTOR UNIT

Note: See list below for parts breakdown.

$

$

Not available

9

Simplicity 1650633SM

SPACER

$37.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

11

Simplicity 2825695

CAPSCREW, Hex Hd., 3/8-16 x 5

$

$

Not available

12

Simplicity 1650524

SPACER
(Superseded to 1650524SM)

$51.99

$

Usually ships in 2-12 days

0

13

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

14

Simplicity 1651089SM

BRACKET

$

$

Not available

15

Simplicity 1651090SM

LATCH, Release

$

$

Not available

16

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

17

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

18

Simplicity 2156065

WASHER

$

$

Not available

19

Simplicity 1671229SM

HOSE, Inlet

$7.99

$

Usually ships in 2-12 days

0

20

Simplicity 2830709

CLAMP, Hose
(Superseded to 2930709SM)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1671228SM

ELBOW, Hose Fitting

$15.99

$

Usually ships in 2-12 days

0

22

Simplicity 1666415SM

SHROUD ASSY., w/Screen

$

$

Not available

23

Simplicity 2825359

SCREW, Hex, Washer Hd., Taptite, 5/16-18 x 3/4

$

$

Not available

24

Simplicity 1651703SM

O-RING

$5.49

$

In Stock, Qty 11

0

25

Simplicity 2166003SM

PINION, Motor Shaft

$106.99

$

Usually ships in 2-12 days

0

26

Simplicity 2123144

WASHER

$

$

Not available

27

Simplicity 2827428

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available
