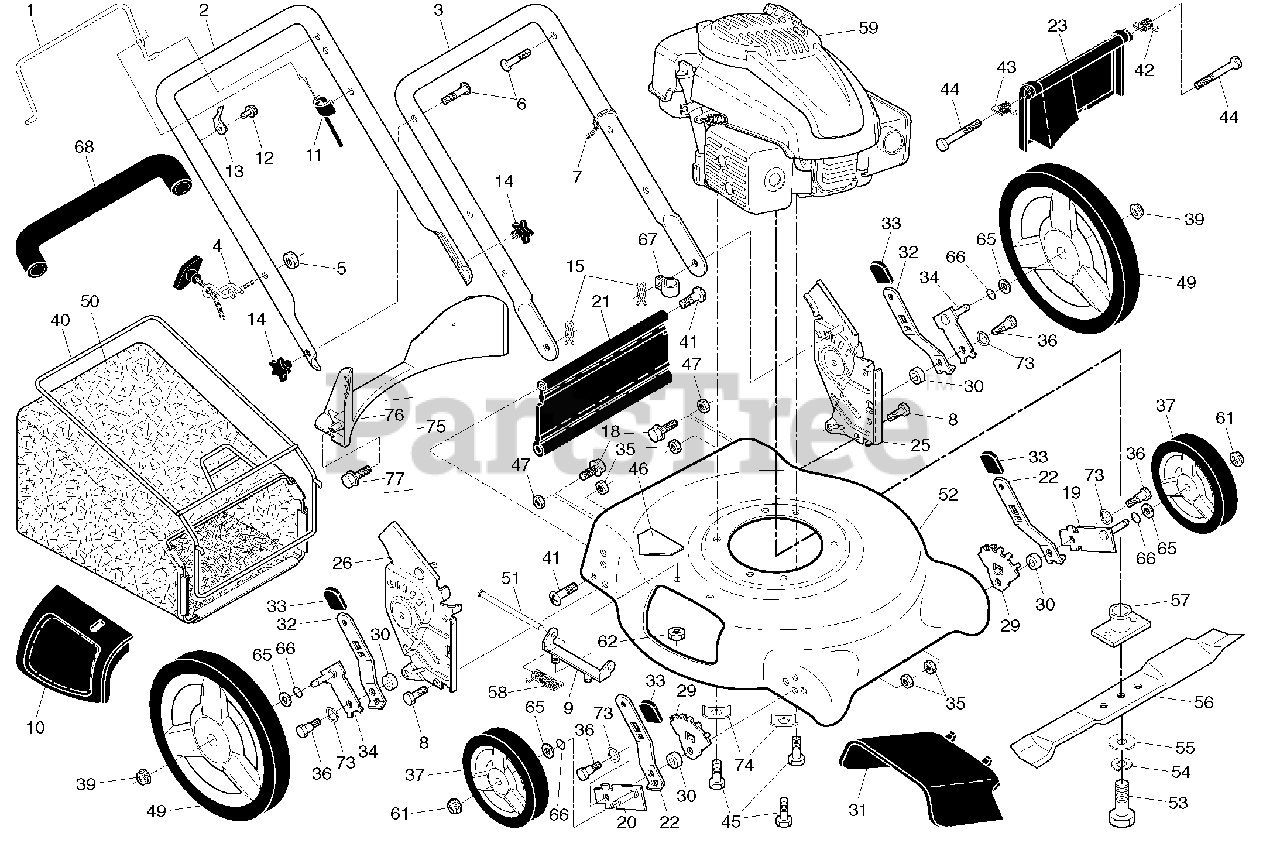

917.384510 (6021 P) - Craftsman Walk-Behind Mower (2010-01) (Sears) Product Complete Parts Diagram

Walk-Behind Mower

Product Complete Parts Diagram

  • Title

1

Husqvarna 194177X422

Control Bar
(Superseded to 583718401)

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 197808

Upper Handle
(Superseded to 532197808)

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 169708X498

Lower Handle
(Superseded to 532174110)

$

$

Not available

4

Husqvarna 194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 132004

Nut, Hex

$

$

Not available

6

Husqvarna 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 66426

Wire Tie

$

$

Not available

8

Husqvarna 74780512

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 154132

Hinge Bracket
(Superseded to 532154132)

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 185589

Mulcher Door
(Superseded to 532185589)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 183281

Engine Zone Control Cable
(Superseded to 532183281)

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 750634

Hex Washer Head Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 429930X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 182398

Handle Knob
(Superseded to 532182398)

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 17600406

Screw 1/4-20 x 3/8
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 401174X004

Axle Arm Assembly, Front, LH
(Superseded to 532401174)

$

$

Not available

20

Husqvarna 401175X004

Axle Arm Assembly, Front, RH
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 418655

Kit, Rear Skirt
(Superseded to 532418655)

$13.99

$

In Stock, Qty 5

0

22

Husqvarna 401621X004

Selector Spring, Front
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 401814X428

Rear Door Assembly

$

$

Not available

25

Husqvarna 410385X422

Handle Bracket Assembly, LH

$

$

Not available

26

Husqvarna 410386X422

Handle Bracket Assembly, RH

$8.49

$

Usually ships in 3-10 days

0

29

Husqvarna 407494X005

Wheel Adjusting Bracket
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 185595

Discharge Deflector
(Superseded to 532185595)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 401624X004

Selector Spring, Rear
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 401176X004

Axle Arm Assembly, Rear, LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 426589

Locknut, Hex 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

36

Husqvarna 401638

Shoulder Bolt 5/16-18
(Superseded to 532401638)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 401273X460

Wheel & Tire Assembly, Front
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

39

Husqvarna 409149

Flanged Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 411949

Frame, Grassbag
(Superseded to 532411949)

$

$

Not available

41

Husqvarna 88652

Hinge Screw
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 405421

Spring, Rear Door, LH
(Superseded to 532405421)

$4.99

$

In Stock, only 3 left!

0

43

Husqvarna 405423

Spring, Rear Door, RH
(Superseded to 532405423)

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

45

Husqvarna 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

47

Husqvarna 751153

Nut, Hex
(Superseded to 532751153)

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 401177X004

Axle Arm Assembly, Rear, RH
(Superseded to 532401177)

$

$

Not available

49

Husqvarna 401277X460

Wheel & Tire Assembly, Rear

$

$

Not available

50

Husqvarna 194715

Grassbag

$

$

Not available

51

Husqvarna 147286

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

52

Husqvarna 418709

Kit, Housing

Note: (Includes Key Number 46)

$

$

Currently unavailable

53

Husqvarna 851084

Screw, Hex Head, Grade 8 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 850263

Helical Lockwasher

$

$

Not available

55

Husqvarna 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 3 left!

0

56

Husqvarna 406712

21" Blade
(Superseded to 532406712)

$20.99

$

In Stock, only 2 left!

0

57

Husqvarna 420097

Blade Adapter

$

$

Not available

58

Husqvarna 152124

Hinge Spring
(Superseded to 532152124)

$7.49

$

In Stock, only 3 left!

0

59

Engine, Kohler, Model Number XT149-0026-EA (See Breakdown)

$

$

Not available

61

Husqvarna 409148

Nut, Hex
(Superseded to 532409148)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 73800400

Locknut, Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

65

Husqvarna 88348

Washer, Flat
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

66

Husqvarna 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

67

Husqvarna 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

68

Husqvarna 164265

Grip, Foam
(Superseded to 585161003)

$

$

Not available

73

Husqvarna 401630

Washer, Curved
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

74

Husqvarna 851201X004

Washer, Special, Engine
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 413693

Kit, Rear Baffle
(Superseded to 532413693)

Note: (Includes 3 Screws)

$30.99

$

Usually ships in 3-10 days

0

76

Husqvarna 410589

Baffle, Rear
(Superseded to 532410589)

$13.99

$

Usually ships in 3-10 days

0

77

Husqvarna 17411312

Screw, Rear Baffle
(Superseded to 817411312)

$7.49

$

In Stock, Qty 20+

0

Husqvarna 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 431621

Owner's Manual
(Superseded to 917431621)

$7.99

$

Usually ships in 3-10 days

0

71

Husqvarna 33623

Gas Can (2.5 Gallon Container)

$

$

Currently unavailable

71

Husqvarna 33500

Fuel Stabilizer

$

$

Currently unavailable

71

Husqvarna 33000

SAE 30W Oil (20 Ounce Bottle)

$

$

Currently unavailable
