917.375950 - Craftsman Walk-Behind Mower (2005-01) (Sears) Gear Case Assembly Parts Diagram

Walk-Behind Mower

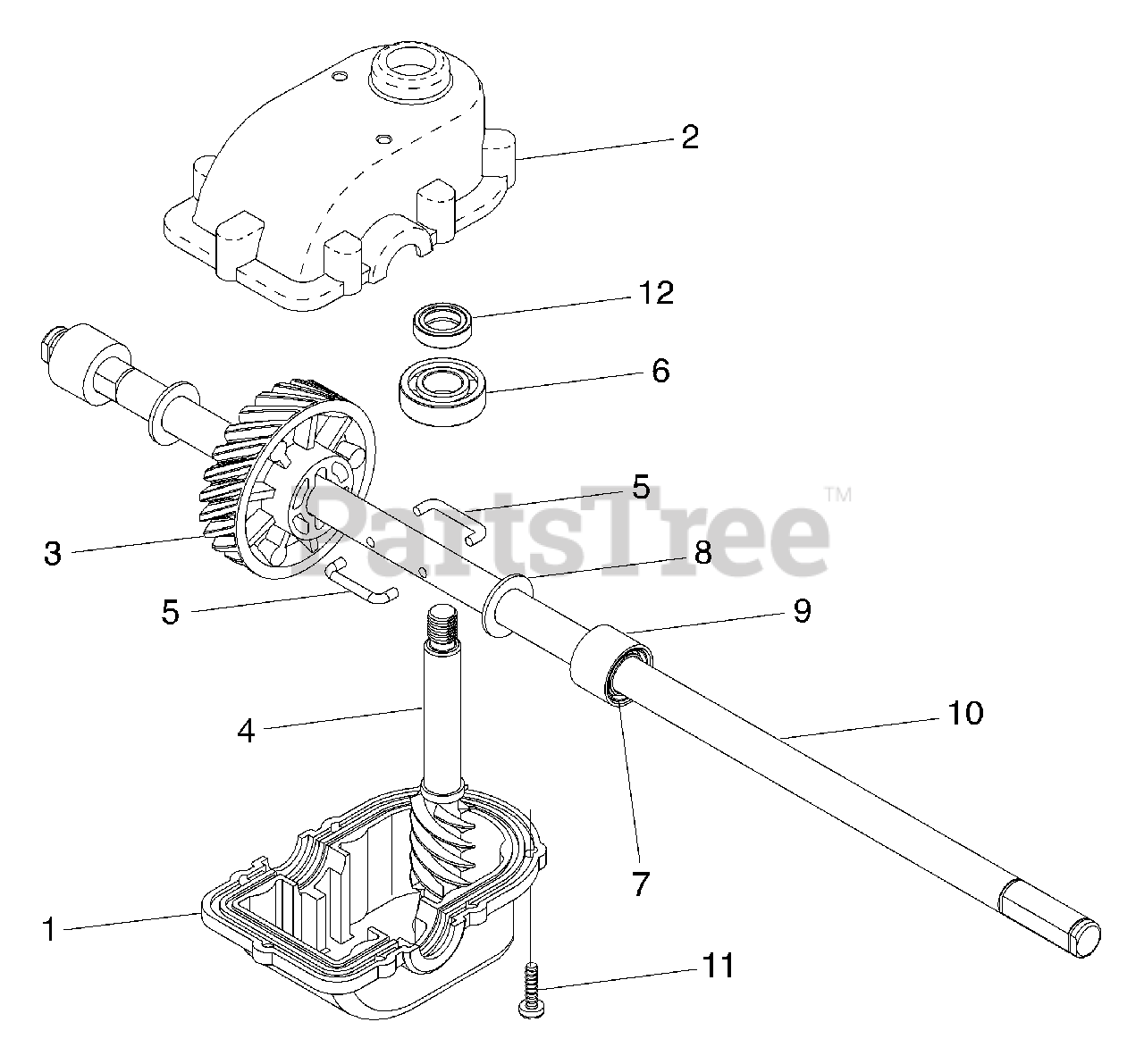

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 187530

Case, Lower
(Superseded to 532187530)

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 191245

Case, Upper
(Superseded to 532191245)

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 187532

Gear, 24 Teeth
(Superseded to 532187532)

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 191246

Shaft, Worm
(Superseded to 532191246)

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 183505

Wireform
(Superseded to 532183505)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 191247

Shaft, Output
(Superseded to 532191247)

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 183513

Screw

$2.99

$

In Stock, only 4 left!

0

12

Husqvarna 183514

Seal, Worm Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0

Husqvarna 750369

Grease, Texaco Starplex Premium 1

Note: (Do not substitute) (1.4 ounce capacity)

$

$

Not available
