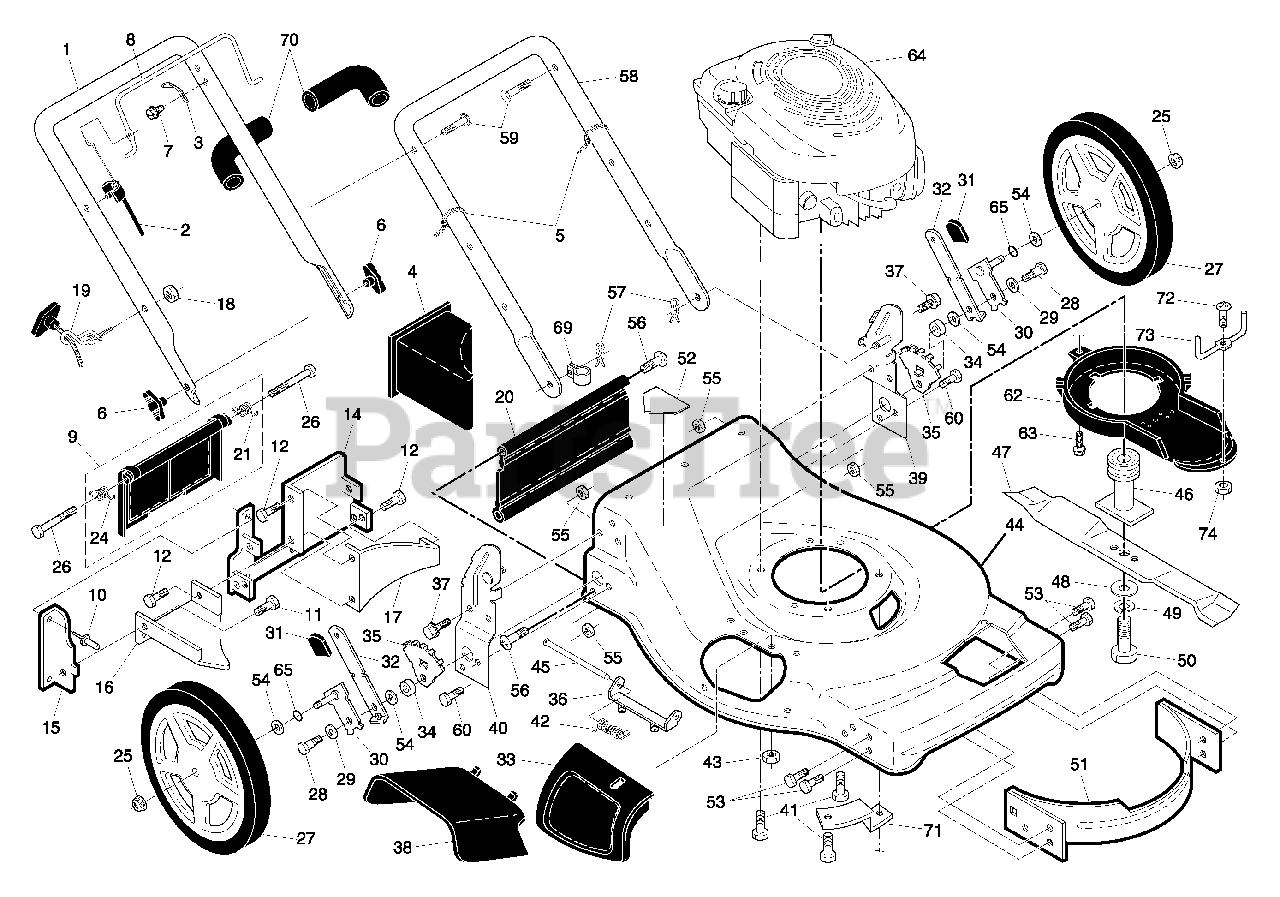

917.375820 - Craftsman Walk-Behind Mower (2006-01) (Sears) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 196403

Upper Handle Assembly

Note: (Includes Foam Grip)

$21.99

$

Usually ships in 3-10 days

0

2

Husqvarna 183567

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 166649

Mulcher Plug
(Superseded to 532166649)

$

$

Not available

5

Husqvarna 66426

Wire Tie

$

$

Not available

6

Husqvarna 189713X418

Handle Knob

$

$

Not available

7

Husqvarna 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 194580X422

Control Bar
(Superseded to 532197019)

$

$

Not available

9

Husqvarna 193679

Rear Door Assembly
(Superseded to 532193679)

Note: (Includes Springs)

$26.99

$

In Stock, only 1 left!

0

10

Husqvarna 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 150050

Screw, Self-Tapping #10-24 x 5/8
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 54583

Screw, Hex Head,Sems 1/4-20 x 1/2
(Superseded to 532054583)

$

$

Not available

14

Husqvarna 195622X479

Back Plate
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 700365X479

Side Baffle

$

$

Not available

16

Husqvarna 176655X479

Discharge Baffle
(Superseded to 532176655)

$

$

Not available

17

Husqvarna 140661X479

Rear Baffle
(Superseded to 532140661)

$

$

Not available

18

Husqvarna 132004

Keps Locknut 1/4-20

$

$

Not available

19

Husqvarna 194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 189008

Rear Skirt

$

$

Not available

21

Husqvarna 170938

Spring, Rear Door, LH
(Superseded to 532170938)

$

$

Not available

24

Husqvarna 170939

Spring, Rear Door, RH
(Superseded to 532170939)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 145212

Nut, Hex, Flanged

$

$

Not available

26

Husqvarna 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

27

Husqvarna 193906X460

Wheel & Tire Assembly, Rear
(Superseded to 581010309)

$37.99

$

Usually ships in 3-10 days

0

28

Husqvarna 142748

Bolt, Shoulder 3/8-16 x 1

$

$

Not available

29

Husqvarna 61651

Washer, Belleville

$2.99

$

Usually ships in 3-10 days

0

30

Husqvarna 180413X004

Axle Arm Assembly
(Superseded to 532196021)

$

$

Not available

31

Husqvarna 189808X418

Selector Knob
(Superseded to 532189808)

$

$

Not available

32

Husqvarna 198169X004

Selector Spring
(Superseded to 532198456)

$

$

Not available

33

Husqvarna 189917X418

Mulcher Door

$

$

Not available

34

Husqvarna 146630

Spacer

$

$

Not available

35

Husqvarna 700325X007

Wheel Adjusting Bracket

$

$

Not available

36

Husqvarna 175735

Hinge Bracket Assembly
(Superseded to 532175735)

$

$

Not available

37

Husqvarna 150078

Screw, Sems, Thread Cutting 5/16-18 x 3/4

$

$

Not available

38

Husqvarna 402574X418

Discharge Deflector

$

$

Not available

39

Husqvarna 195915X479

Handle Bracket Assembly, LH
(Superseded to 532195915)

$

$

Not available

40

Husqvarna 195914X479

Handle Bracket Assembly, RH
(Superseded to 532195914)

$14.99

$

In Stock, only 1 left!

0

41

Husqvarna 150406

Bolt, Hex Head, Engine 3/8-16
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 193000

Spring, Torsion
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

43

Husqvarna 73800400

Nut, Hex, Nylock
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 197556

Kit, Lawn Mower Housing
(Superseded to 583239901)

Note: (Includes Key #14, 15 and 51)

$169.99

$

Usually ships in 3-10 days

0

45

Husqvarna 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 10

0

46

Husqvarna 194037

Blade Adapter / Pulley

$

$

Not available

47

Husqvarna 141114

Blade, 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

48

Husqvarna 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 850263

Washer, Helical

$

$

Not available

50

Husqvarna 851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 170031

Front Baffle
(Superseded to 532170031)

$

$

Not available

52

Husqvarna 85463

Danger Decal
(Superseded to 539913010)

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 17600406

Screw
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 88348

Washer, Flat
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

55

Husqvarna 751592

Locknut, Hex 3/8-16

$

$

Not available

56

Husqvarna 88652

Screw, Hinge 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 151590X498

Lower Handle

$

$

Currently unavailable

59

Husqvarna 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

60

Husqvarna 74760612

Bolt, Hex Head 3/8-16 x 3/4
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

62

Husqvarna 199314

Debris Shield

$

$

Not available

63

Husqvarna 192325

Screw, Debris Shield
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model No. 125K02-0654-E1

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

65

Husqvarna 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

69

Husqvarna 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

70

Husqvarna 182748

Foam Grip
(Superseded to 532182748)

$

$

Not available

71

Husqvarna 188839X004

Mounting Bracket,Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 182227

Screw #8
(Superseded to 532182227)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 197162

Belt Keeper
(Superseded to 532197162)

$

$

Not available

74

Husqvarna 182228

Nut, Hex
(Superseded to 532182228)

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 161058

Warning Decal
(Superseded to 532161058)

Note: (not shown)

$6.49

$

In Stock, only 1 left!

0

Husqvarna 402735

Owner's Manual
(Superseded to 917402735)

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 7133623

Gas Can (2.5 Gallon Container) Available accessories

Note: not included with mower

$

$

Currently unavailable

Husqvarna 7133500

Fuel Stabilizer Available accessories

Note: not included with mower

$

$

Currently unavailable

Husqvarna 7133000

SAE 30W Oil (20 Ounce Bottle) Available accessories

Note: not included with mower

$

$

Currently unavailable
