917.375820 - Craftsman Walk-Behind Mower (2006-01) (Sears) Briggs & Stratton 4-Cycle Engine (Part 2) Parts Diagram

Walk-Behind Mower

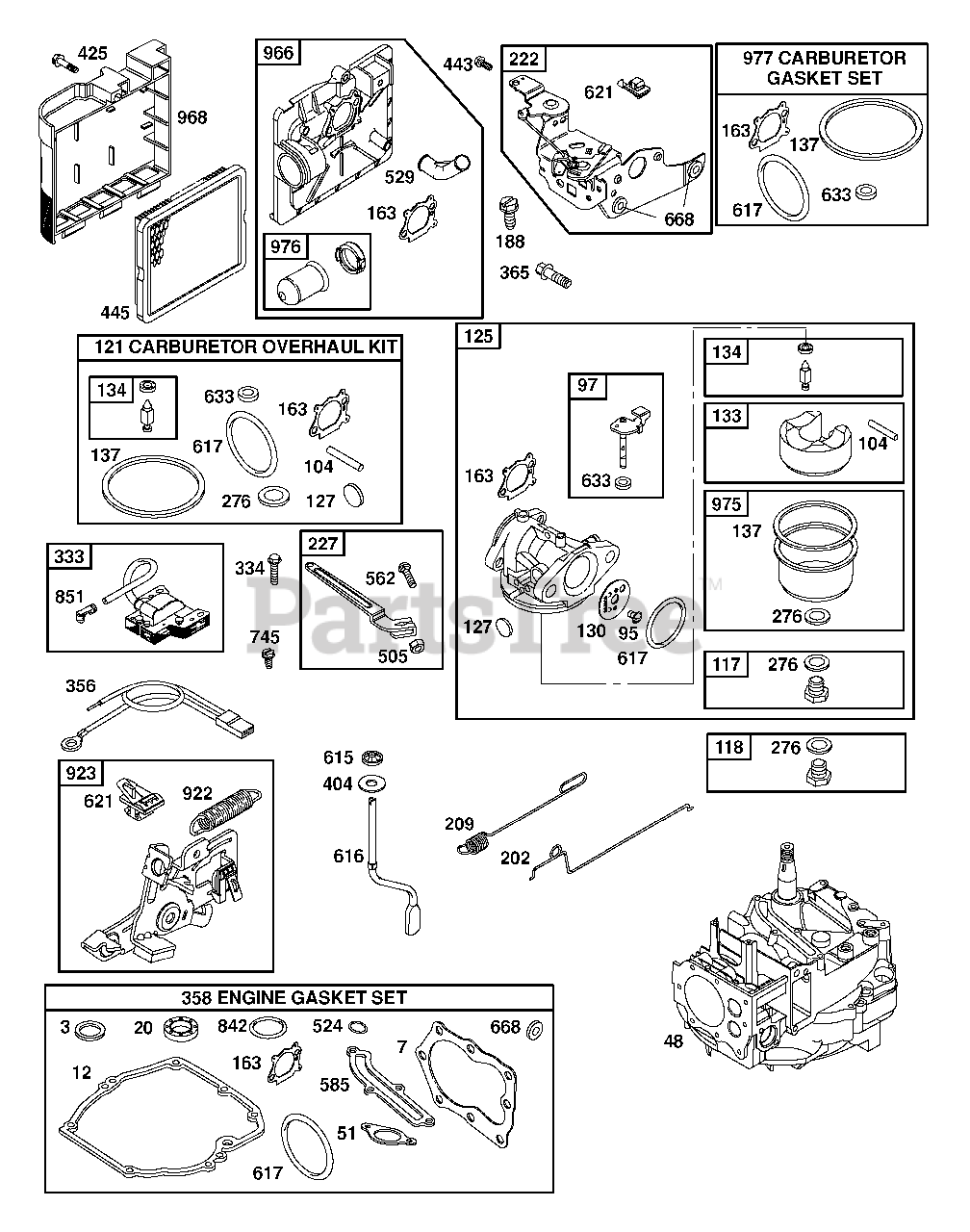

Briggs & Stratton 4-Cycle Engine (Part 2) Parts Diagram

  • Title

3

299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set, Key No. 358

$

$

Not available

7

Husqvarna 692249

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

12

Husqvarna 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

20

399781s

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set, Key No. 358

$

$

Not available

20

Husqvarna 791324

Ring Set (.020" Oversize)

$

$

Currently unavailable

48

Husqvarna 498829

Short Block

$

$

Currently unavailable

51

272199s

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358

$

$

Not available

95

Husqvarna 691636

Screw (Throttle Valve)

$

$

Currently unavailable

97

Husqvarna 696565

Shaft-Throttle

$

$

Currently unavailable

104

Husqvarna 691242

Pin-Float Hinge

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

117

Husqvarna 498978

Jet-Main (Standard)

$

$

Currently unavailable

118

Husqvarna 494870

Jet-Main (High Altitude)

$

$

Not available

121

Husqvarna 498260

Kit-Carburetor Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Husqvarna 498170

Carburetor

$

$

Not available

127

Husqvarna 694468

Plug-Welch

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

130

Husqvarna 696564

Valve-Throttle

$

$

Currently unavailable

133

Husqvarna 398187

Float-Carburetor

$

$

Not available

134

Husqvarna 398188

Valve-Needle/Seat

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Not available

137

Husqvarna 693981

Gasket-Float Bowl

Note: Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

163

272653s

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Not available

188

Husqvarna 693399

Screw (Control Bracket)

$

$

Currently unavailable

202

Husqvarna 691829

Link-Mechanical Governor

$

$

Currently unavailable

209

Husqvarna 699056

Spring-Governor

$

$

Currently unavailable

222

Husqvarna 791128

Bracket-Control

$

$

Currently unavailable

227

Husqvarna 690783

Control Lever-Governor

$

$

Currently unavailable

276

Husqvarna 271716

Sealing Washer

Note: Included in Carb. Overhaul Kit, Key No. 121

$

$

Currently unavailable

333

Husqvarna 802574

Armature-Magneto

$

$

Not available

334

Husqvarna 691061

Screw (Armature Magneto)

$

$

Not available

356

Husqvarna 692390

Wire-Stop

$

$

Currently unavailable

358

Husqvarna 497316

Engine Gasket Set

$

$

Not available

365

Husqvarna 692524

Screw (Carburetor)

$

$

Currently unavailable

404

Husqvarna 690272

Washer (Governor Crank)

$

$

Currently unavailable

425

Husqvarna 690670

Screw (Air Cleaner Cover)

$

$

Currently unavailable

443

Husqvarna 692523

Screw (Air Cleaner Base)

$

$

Currently unavailable

445

491588s

Filter-Air Cleaner Cartridge

$

$

Not available

505

Husqvarna 691251

Nut (Gov. Control Lever)

$

$

Currently unavailable

524

Husqvarna 692296

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

529

Husqvarna 691923

Grommet

$

$

Currently unavailable

562

Husqvarna 691119

Bolt (Gov. Control Lever)

$

$

Currently unavailable

585

Husqvarna 691879

Gasket-Breather Passage

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

615

Husqvarna 690340

Retainer-Governor Shaft

$

$

Currently unavailable

616

Husqvarna 698801

Crank-Governor

$

$

Currently unavailable

617

270344s

Seal (Intake Manifold);

Note: Included in Engine Gasket Set, Key No. 358; Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Not available

621

Husqvarna 692310

Switch-Stop

$

$

Not available

633

Husqvarna 691321

Seal-Throttle Shaft

Note: Included in Carb. Overhaul Kit, Key No. 121; Included in Carb. Gasket Set, Key No. 977

$

$

Currently unavailable

668

Husqvarna 493823

Spacer

Note: (Includes 2); Included in Engine Gasket Set, Key No. 358

$

$

Not available

745

Husqvarna 691648

Screw (Brake)

$

$

Not available

842

Husqvarna 691031

Seal (Dipstick Tube)

Note: Included in Engine Gasket Set, Key No. 358

$

$

Not available

851

493880s

Terminal-Spark Plug

$

$

Not available

851

Husqvarna 63709

Bushing-Guide (Intake)

$

$

Not available

922

Husqvarna 692135

Spring-Brake

$

$

Currently unavailable

923

Husqvarna 695891

Brake

$

$

Currently unavailable

966

Husqvarna 792040

Base-Air Cleaner Primer

$

$

Not available

968

Husqvarna 692298

Cover-Air Cleaner

$

$

Currently unavailable

975

Husqvarna 493640

Bowl-Float

$

$

Not available

976

Husqvarna 496115

Primer-Carburetor

$

$

Not available

977

Husqvarna 498261

Set-Carburetor Gasket

$

$

Not available

Husqvarna 398067

Spark Arrester

Note: (available accessory)

$

$

Currently unavailable
