917.375810 - Craftsman Walk-Behind Mower (2006-05) (Sears) Briggs & Stratton 4-Cycle Engine (Part 1) Parts Diagram

Walk-Behind Mower

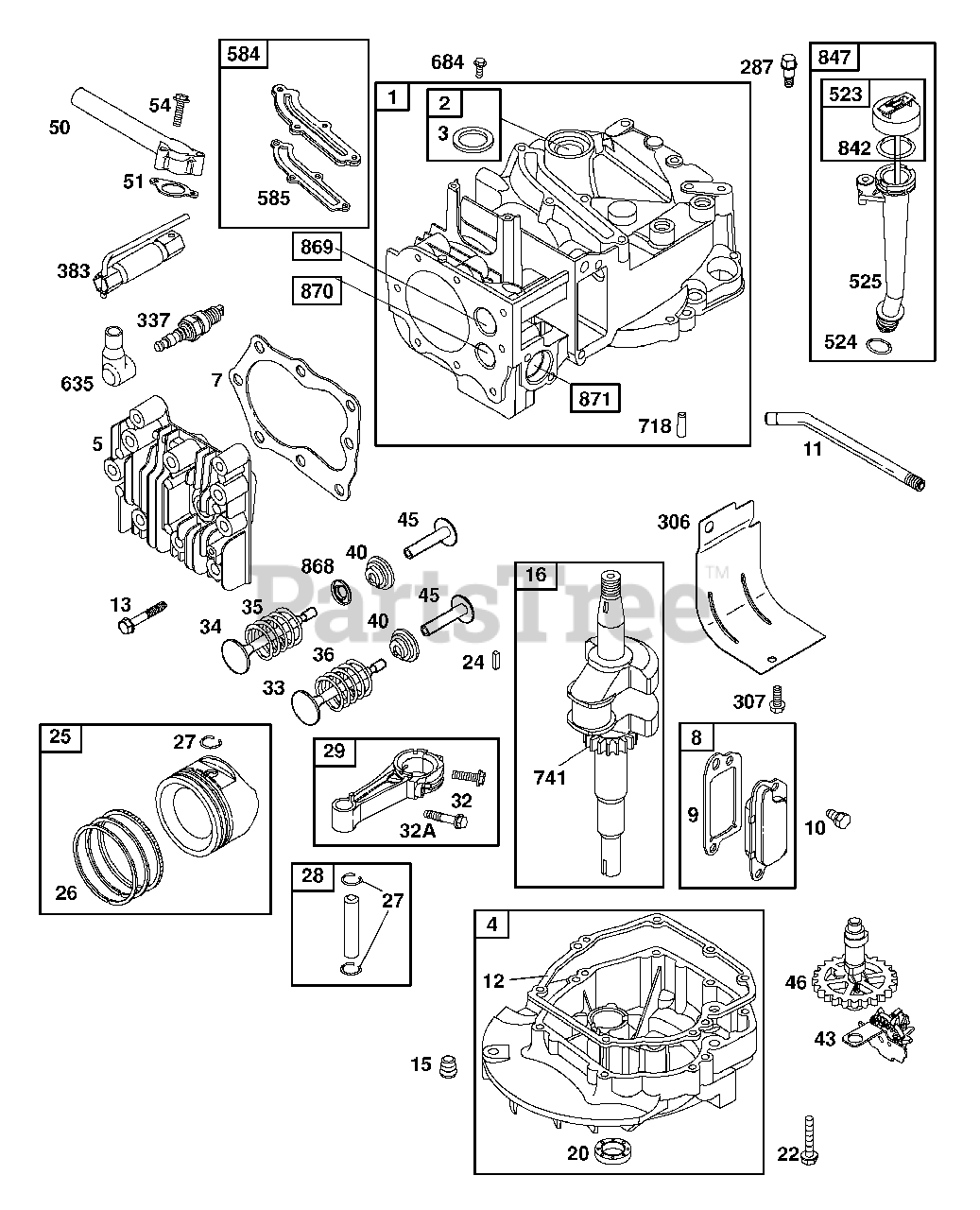

Briggs & Stratton 4-Cycle Engine (Part 1) Parts Diagram

  • Title

1

Husqvarna 697322

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 399269

Kit-Bushing/Seal

$

$

Not available

3

299819s

Seal-Oil

Note: (Magneto Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

4

Husqvarna 493279

Sump-Engine

$

$

Not available

5

Husqvarna 691160

Head-Cylinder

$

$

Currently unavailable

7

Husqvarna 692249

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

8

Husqvarna 695250

Breather Assembly

$

$

Currently unavailable

9

Husqvarna 699472

Gasket-Breather

$

$

Currently unavailable

10

Husqvarna 691125

Screw

Note: (Breather Assembly)

$

$

Currently unavailable

11

Husqvarna 691781

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

13

Husqvarna 690912

Screw

Note: (Cylinder Head)

$

$

Currently unavailable

15

Husqvarna 691680

Plug-Oil Drain

$

$

Currently unavailable

16

Husqvarna 691450

Crankshaft

$

$

Currently unavailable

20

399781s

Seal-Oil

Note: (PTO Side); Included in Engine Gasket Set, Key No. 358

$

$

Not available

22

Husqvarna 691092

Screw

Note: (Engine Sump)

$

$

Currently unavailable

24

222698s

Key-Flywheel

$

$

Not available

25

Husqvarna 790359

Piston Assembly

Note: (Std.)

$

$

Currently unavailable

25

Husqvarna 791326

Piston Assembly

Note: (.020" Oversize)

$

$

Currently unavailable

26

Husqvarna 790360

Ring Set

Note: (Standard)

$

$

Currently unavailable

26

Husqvarna 791324

Ring Set

Note: (.020" Oversize)

$

$

Currently unavailable

27

Husqvarna 691866

Lock-Piston Pin

$

$

Currently unavailable

28

Husqvarna 499423

Pin-Piston

$

$

Not available

29

Husqvarna 499424

Rod-Connecting

$

$

Not available

32

Husqvarna 691664

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

32A

Husqvarna 695759

Screw

Note: (Connecting Rod)

$

$

Currently unavailable

33

262651s

Valve-Exhaust

$

$

Not available

34

262652s

Valve-Intake

$

$

Not available

35

Husqvarna 691270

Spring-Valve (Intake)

$

$

Currently unavailable

36

Husqvarna 691270

Spring-Valve (Exhaust)

$

$

Currently unavailable

40

Husqvarna 692194

Retainer-Valve

$

$

Currently unavailable

43

Husqvarna 691997

Slinger-Governor/Oil

$

$

Currently unavailable

45

Husqvarna 690548

Tappet-Valve

$

$

Currently unavailable

46

Husqvarna 691449

Camshaft

$

$

Currently unavailable

50

Husqvarna 497465

Manifold-Intake

$

$

Not available

51

272199s

Gasket-Intake

Note: Included in Engine Gasket Set, Key No. 358

$

$

Not available

54

Husqvarna 691650

Screw

Note: (Intake Manifold)

$

$

Currently unavailable

287

Husqvarna 690940

Screw

Note: (Dipstick Tube)

$

$

Currently unavailable

306

Husqvarna 690450

Shield-Cylinder

$

$

Currently unavailable

307

Husqvarna 690345

Screw

Note: (Cylinder Shield)

$

$

Currently unavailable

337

802592s

Spark Plug

$

$

Not available

383

Husqvarna 89838

Wrench-Spark Plug

$

$

Not available

523

Husqvarna 499621

Dipstick

$

$

Currently unavailable

524

Husqvarna 692296

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

525

Husqvarna 495265

Tube-Dipstick

$

$

Not available

584

Husqvarna 697734

Cover-Breather Passage

$

$

Currently unavailable

585

Husqvarna 691879

Gasket-Breather Passage

Note: Included in Engine Gasket Set, Key No. 358

$

$

Currently unavailable

635

Husqvarna 66538

Boot-Spark Plug

$

$

Not available

684

Husqvarna 690345

Screw

Note: (Breather Cover)

$

$

Currently unavailable

718

Husqvarna 690959

Pin-Locating

$

$

Not available

741

Husqvarna 691830

Gear-Timing

$

$

Currently unavailable

842

Husqvarna 691031

Seal

Note: (Dipstick Tube); Included in Engine Gasket Set, Key No. 358

$

$

Not available

847

Husqvarna 692047

Assembly-Dipstick/Tube

$

$

Currently unavailable

868

Husqvarna 697338

Seal-Valve

$

$

Currently unavailable

869

Husqvarna 691155

Seat-Valve (Intake)

$

$

Currently unavailable

870

Husqvarna 690380

Seat-Valve (Exhaust)

$

$

Currently unavailable

871

Husqvarna 262001

Bushing-Guide (Exhaust)

$

$

Not available

871

Husqvarna 63709

Bushing-Guide (Intake)

$

$

Not available

Husqvarna 398067

Spark Arrester

Note: (available accessory)

$

$

Currently unavailable
