917.375361 - Craftsman Walk-Behind Mower (2005-01) (Sears) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

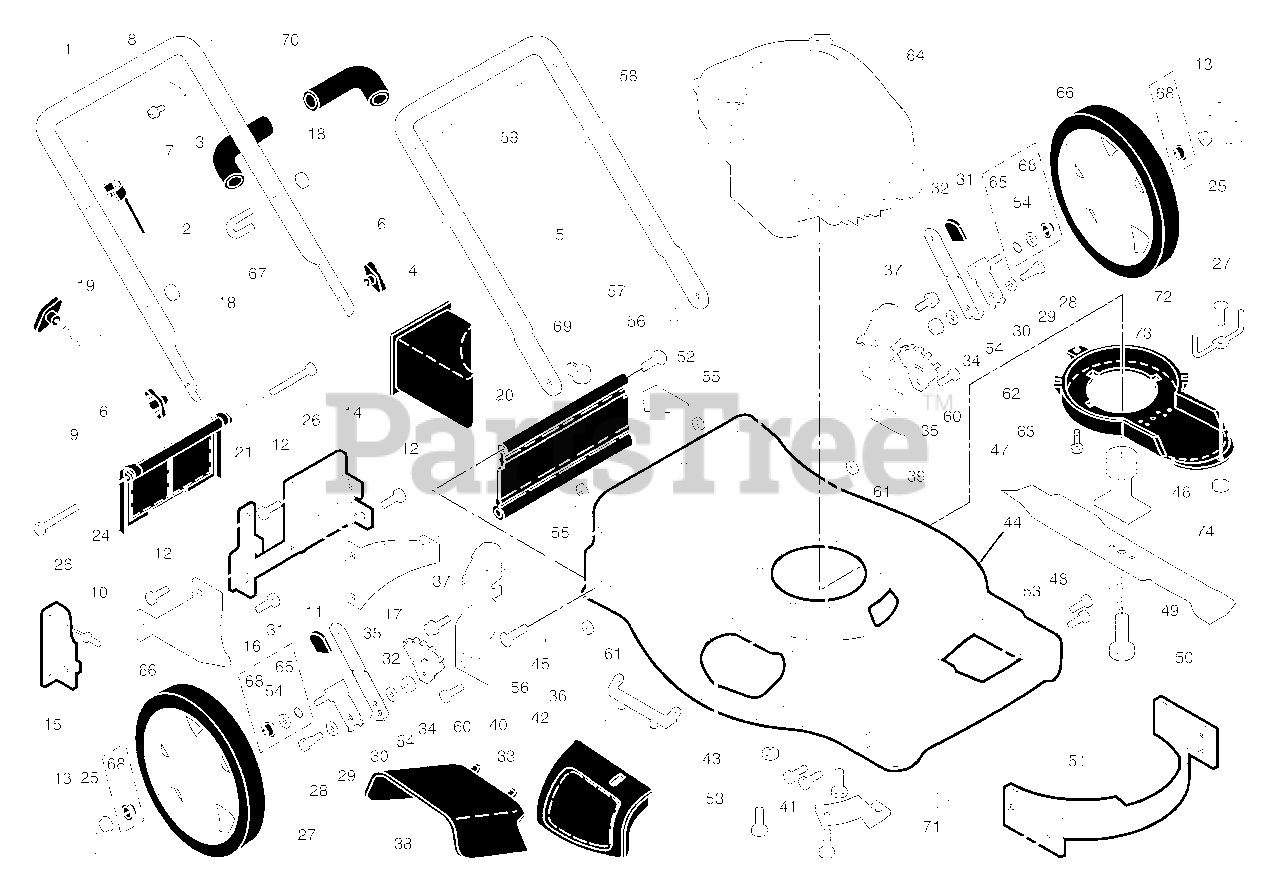

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 189740

Upper Handle
(Superseded to 532189740)

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 183567

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 125162

Bracket, Upstop

$

$

Currently unavailable

4

Husqvarna 166649

Mulcher Plug
(Superseded to 532166649)

$

$

Not available

5

Husqvarna 66426

Wire Tie

$

$

Not available

6

Husqvarna 191856

Handle Knob

$

$

Currently unavailable

7

Husqvarna 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 190620

Control Bar

$

$

Currently unavailable

9

Husqvarna 193679

Rear Door Assembly
(Superseded to 532193679)

Note: (Includes Springs)

$26.99

$

In Stock, only 1 left!

0

10

Husqvarna 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 150050

Screw, Self Tapping #10-24 x 5/8
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 54583

Screw, Hex Hex Head, Sems 1/4-20 x 1/2
(Superseded to 532054583)

$

$

Not available

13

Husqvarna 180626

Hubcap

$

$

Not available

14

Husqvarna 197076

Back Plate

$

$

Currently unavailable

15

Husqvarna 138860

Side Baffle

$

$

Currently unavailable

16

Husqvarna 177133

Discharge Baffle

$

$

Currently unavailable

17

Husqvarna 148941

Rear Baffle

$

$

Currently unavailable

18

Husqvarna 132004

Keps Locknut 1/4-20

$

$

Not available

19

Husqvarna 179585

Rope Guide

$

$

Currently unavailable

20

Husqvarna 189008

Rear Skirt

$

$

Not available

21

Husqvarna 170938

Spring, Rear Door, LH
(Superseded to 532170938)

$

$

Not available

24

Husqvarna 170939

Spring, Rear Door, RH
(Superseded to 532170939)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 83923

Nut, Hex, Flanged

$

$

Not available

26

Husqvarna 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

27

Husqvarna 150339

Wheel, Rear
(Superseded to 532150339)

$37.99

$

Usually ships in 3-10 days

0

28

Husqvarna 142748

Bolt, Shoulder 3/8-16 x 1

$

$

Not available

29

Husqvarna 62335

Washer, Belleville
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

30

Husqvarna 149857

Axle Arm Assembly

$

$

Currently unavailable

31

Husqvarna 196401

Selector Knob
(Superseded to 532196401)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 141730

Selector Spring

$

$

Currently unavailable

33

Husqvarna 197029

Mulcher Door

$

$

Currently unavailable

34

Husqvarna 146630

Spacer

$

$

Not available

35

Husqvarna 140996

Wheel Adjusting Bracket

$

$

Currently unavailable

36

Husqvarna 175735

Hinge Bracket Assembly
(Superseded to 532175735)

$

$

Not available

37

Husqvarna 150078

Screw, Sems, Thread Cutting 5/16-18 x 3/4

$

$

Not available

38

Husqvarna 197030

Discharge Deflector

$

$

Currently unavailable

39

Husqvarna 197028

Handle Bracket Assembly, LH

$

$

Currently unavailable

40

Husqvarna 197029

Handle Bracket Assembly, RH

$

$

Currently unavailable

41

Husqvarna 150406

Bolt, Hex Head, Engine 3/8-16
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 193000

Spring, Torsion
(Superseded to 532193000)

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 73800400

Nut, Hex, Nylock
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

44

Husqvarna 169398

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 14, 15 and 51)

$

$

Currently unavailable

45

Husqvarna 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 11

0

46

Husqvarna 194037

Blade Adapter / Pulley

$

$

Not available

47

Husqvarna 141114

Blade, 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

48

Husqvarna 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 850263

Washer, Helical

$

$

Not available

50

Husqvarna 851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 170031

Front Baffle
(Superseded to 532170031)

$

$

Not available

52

Husqvarna 107339

Danger Decal

$

$

Not available

53

Husqvarna 17600406

Screw
(Superseded to 817600406)

$6.49

$

In Stock, only 2 left!

0

54

Husqvarna 88348

Washer, Flat
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

55

Husqvarna 751592

Nut, Hex 3/816

$

$

Not available

56

Husqvarna 88652

Screw, Hinge 1/4-20 x 11/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 153406

Lower Handle

$

$

Not available

59

Husqvarna 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 1 left!

0

60

Husqvarna 74760612

Bolt, Hex Head
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 751592

Nut

$

$

Not available

62

Husqvarna 197153

Debris Shield

$

$

Not available

63

Husqvarna 192325

Screw, Debris Shield
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model No. 123K02-0498-E1

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

65

Husqvarna 188152

O-Ring

$

$

Not available

66

Husqvarna 193498

Kit, Bushing, High Wheel
(Superseded to 532193498)

$10.99

$

In Stock, only 2 left!

0

67

Husqvarna 195504

Clip, Packaging
(Superseded to 532195504)

$6.99

$

Usually ships in 3-10 days

0

68

Husqvarna 193028X428

Bushing, Nylon, Black
(Superseded to 584463301)

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 192770

Clip, Cable

$

$

Not available

70

Husqvarna 182748

Foam Grip
(Superseded to 532182748)

$

$

Not available

71

Husqvarna 190939

Mounting Bracket, Debris Shield

$

$

Currently unavailable

72

Husqvarna 182227

Screw #8
(Superseded to 532182227)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 197162

Belt Keeper
(Superseded to 532197162)

$

$

Not available

74

Husqvarna 182228

Nut, Hex
(Superseded to 532182228)

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 162300

Warning Decal

Note: (not shown)

$

$

Currently unavailable

Husqvarna 196860

Owner's Manual, English / French

$2.99

$

Usually ships in 3-10 days

0
