917.374780 (65 C 21 HVA) - Craftsman Walk-Behind Mower (2003-06) (Sears) Repair Parts (A) Parts Diagram

Walk-Behind Mower

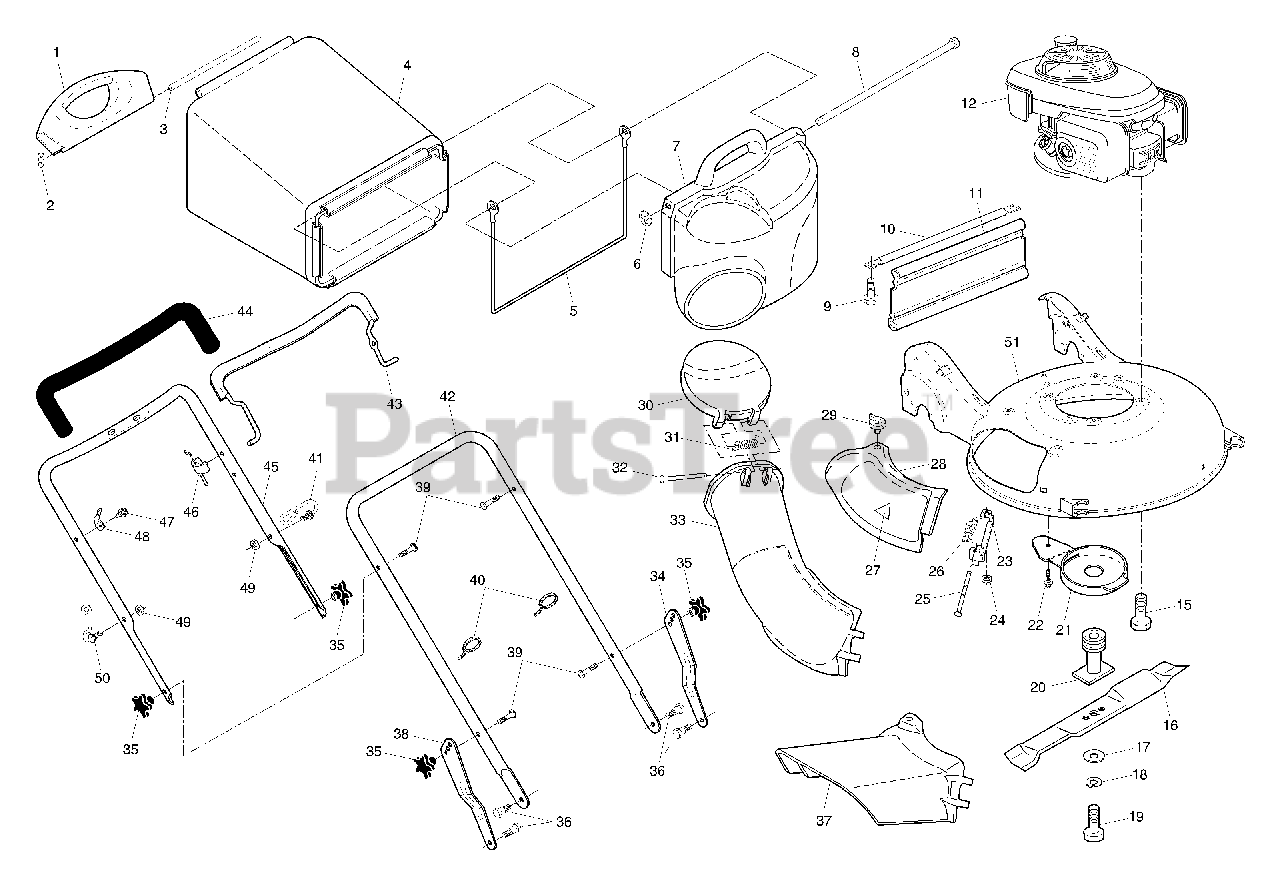

Repair Parts (A) Parts Diagram

  • Title
1

Husqvarna 532186003

Handle, Grassbag, Rear
(Superseded to 532188505)

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

Hairpin Cotter

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532185228

Grassbag
(Superseded to 532410670)

$93.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183481

Frame, Grassbag
(Superseded to 532188506)

$27.99

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532186002

Door, Grassbag
(Superseded to 532188500)

$50.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 532186302

Grassbag Assembly, Complete
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$182.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532184331

Tube, Rear Skirt

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532183463

Skirt, Rear

$

$

Not available

12

Engine, Honda, Model Number GCV190

Note: (Order parts from Engine Manufacturer)

$

$

Not available

15

Husqvarna 532150406

Bolt, Engine Mounting

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532159267

Blade, 21"

$27.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 532183431

Screw, Hex Head, Grade 8

$

$

Not available

20

Husqvarna 532183428

Adapter, Blade
(Superseded to 532186766)

$40.99

$

In Stock, only 1 left!

0

21

Husqvarna 532183690

Debris Shield
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817600406

Screw, Hex Head, Serrated

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

25

Husqvarna 532183445

Rod, Hinge

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185995

Mulcher Door
(Superseded to 532188010)

$

$

Not available

$

$

Not available

30

Husqvarna 532186001

Door, Discharge Chute
(Superseded to 532188499)

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532186000

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

Husqvarna 532186301

Discharge Chute Assembly, Complete
(Superseded to 532189014)

Note: (Consists of Key Numbers 30-33)

$

$

Not available

34

Husqvarna 532187425

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

Knob, Star

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532183465

Bolt, Shoulder
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532185996

Deflector, Discharge

$

$

Not available

38

Husqvarna 532187426

Adjustment Bracket, Lower Handle, RH
(Superseded to 532187064)

$

$

Not available

39

Husqvarna 532184568

Bolt, Handle
(Superseded to 532191575)

$6.99

$

In Stock, only 2 left!

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532187162

Bracket, Anti-Fold

$11.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

Bail, Control
(Superseded to 532426812)

$

$

Not available

44

Husqvarna 532182748

Grip, Foam

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532183473

Cable, Engine Zone Control
(Superseded to 532424983)

$17.99

$

In Stock, Qty 7

0

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532125203

Bracket, Upstop
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

49

$

$

Not available

50

Husqvarna 532183469

Rope Guide

$

$

Not available

51

Husqvarna 532186477

Kit, Housing

$113.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532187462

Owner's Manual

$

$

Not available
