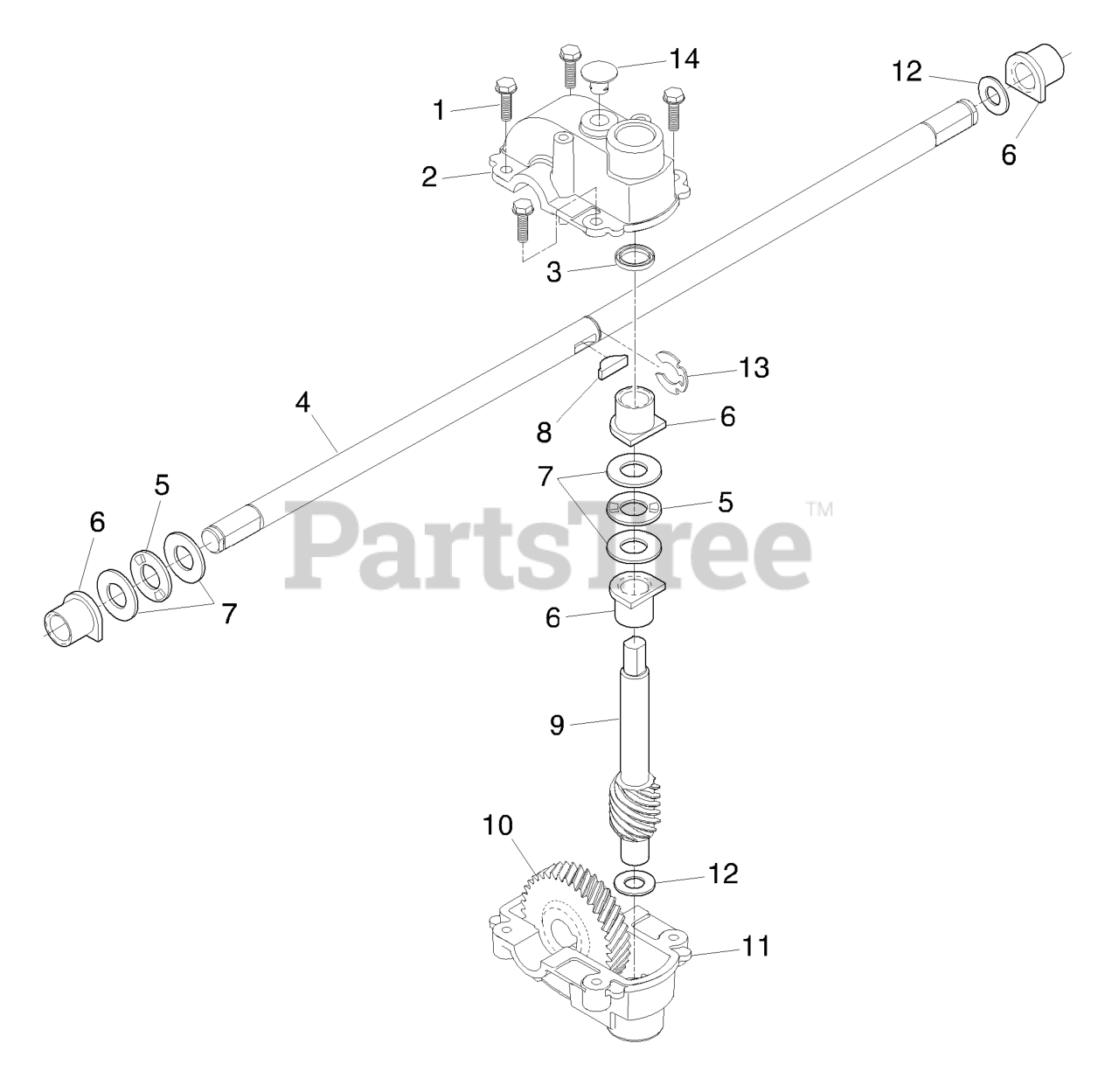

917.374780 (65 C 21 HVA) - Craftsman Walk-Behind Mower (2003-06) (Sears) Gear Case Assy. Parts Diagram

Walk-Behind Mower

Gear Case Assy. Parts Diagram

  • Title

1

Husqvarna 817541011

Screw, Tapping #10-24 x .668

$

$

Not available

2

Husqvarna 532160672

Gear Case, Upper

$

$

Not available

3

Husqvarna 532057072

Seal

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532183908

Drive Shaft

$

$

Not available

5

Husqvarna 532160818

Bearing, Needle, Thrust

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532077881

Bearing

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532160817

Washer, Thrust

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850848

Key, Hi-pro

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532184134

Shaft, Worm

$

$

Not available

10

Husqvarna 532160679

Gear, Helical

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532160673

Gear Case, Lower
(Superseded to 532160676)

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532057079

Washer, Hardened

$6.49

$

In Stock, Qty 11

0

13

Husqvarna 812000039

E-Ring

$6.49

$

In Stock, Qty 7

0

14

Husqvarna 532086447

Plug

$

$

Not available

Husqvarna 532750369

Grease
(Superseded to 585517301)

$

$

Not available
