917.289640 (YTH 24 V 54) - Craftsman Yard Tractor (2010-04) (Sears) Tufftorq Transaxle Parts Diagram

Yard Tractor

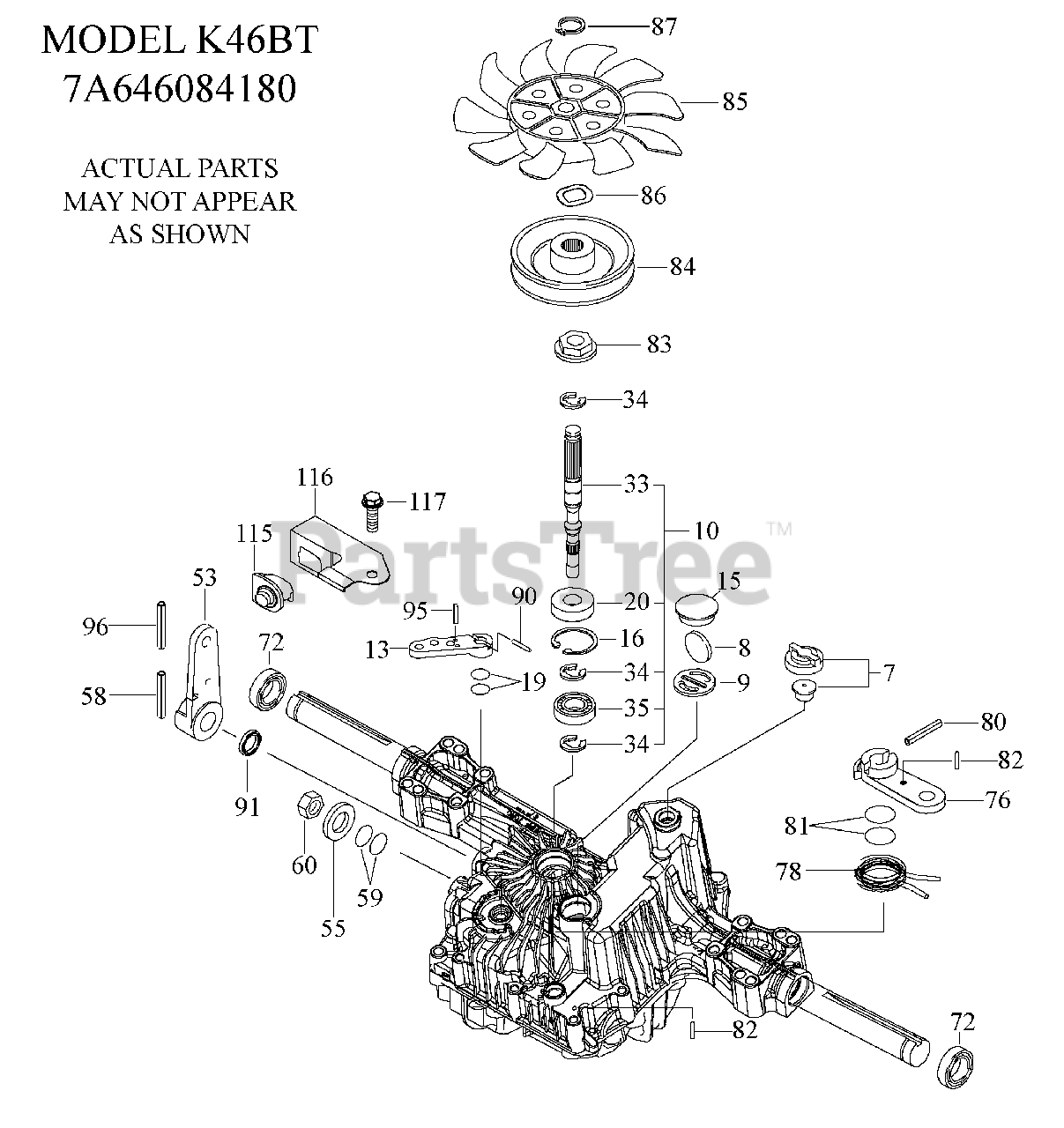

Tufftorq Transaxle Parts Diagram

  • Title
7

Husqvarna 532414395

Vent Valve 15
(Superseded to 583348201)

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532414396

Magnet
(Superseded to 583348301)

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532414397

Magnet Holder

$

$

Currently unavailable

10

Husqvarna 532415923

Pump Shaft/Bearing Kit

$

$

Currently unavailable

13

Husqvarna 532414398

Bypass Lever
(Superseded to 583348501)

$26.99

$

In Stock, only 1 left!

0

15

Husqvarna 532414399

Sealing Cap 30

$

$

Currently unavailable

16

Husqvarna 532414400

Snap Ring C 35

$1.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532414401

O-Ring 1a P10a
(Superseded to 583348801)

$

$

Not available

20

Husqvarna 532414402

Seal Tc 153507
(Superseded to 583345001)

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532414403

Pump Shaft (Standard)

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Husqvarna 532414405

Bearing 6202c3

$

$

Currently unavailable

53

Husqvarna 532414431

Control Lever F
(Superseded to 583350901)

$40.99

$

Usually ships in 3-10 days

0

55

$

$

Currently unavailable

58

Husqvarna 532415925

Roll Pin 6 x 40

$

$

Currently unavailable

59

Husqvarna 532415926

O-Ring 1a P14

$

$

Currently unavailable

$

$

Currently unavailable

72

Husqvarna 532414407

Seal 19 x 32 x 8
(Superseded to 583349301)

$37.99

$

In Stock, only 1 left!

0

76

Husqvarna 532414408

Brake Lever

$

$

Currently unavailable

78

Husqvarna 532414409

Brake Return Spring
(Superseded to 583349501)

$20.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532414410

Spring PIn 5 x 32
(Superseded to 583349601)

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532414411

0-Ring 1a P12
(Superseded to 583349701)

$7.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532414412

Spring Pin 4 x 16
(Superseded to 583349801)

$6.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532414413

Spine Collar
(Superseded to 583349901)

$13.99

$

In Stock, only 2 left!

0

84

Husqvarna 532414414

Pulley L
(Superseded to 583350001)

$87.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532414415

Fan, Black

$

$

Currently unavailable

86

Husqvarna 532414416

Wave Washer
(Superseded to 583350201)

$

$

Not available

87

Husqvarna 532414417

Snap Ring
(Superseded to 583350301)

$

$

Not available

90

Husqvarna 532414418

Spring Pin 3.0a x 20
(Superseded to 583350401)

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532414419

Oil Seal 16 x 22 x.03
(Superseded to 583351001)

$12.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532414850

Spring Pin 3.0ax16
(Superseded to 583352701)

$

$

Not available

96

Husqvarna 532414420

Roll Pin 3.5 x 40
(Superseded to 583350601)

$6.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532415928

Switch 6440-11 Delta

$

$

Currently unavailable

116

Husqvarna 532415929

Switch Bracket

$

$

Currently unavailable

117

Husqvarna 532415930

Tapping Screw 8 x 20

$

$

Currently unavailable
