917.289620 (YTH 22 V 42) - Craftsman Yard Tractor (2010-05) (Sears) Briggs Engine Image 1 Parts Diagram

Yard Tractor

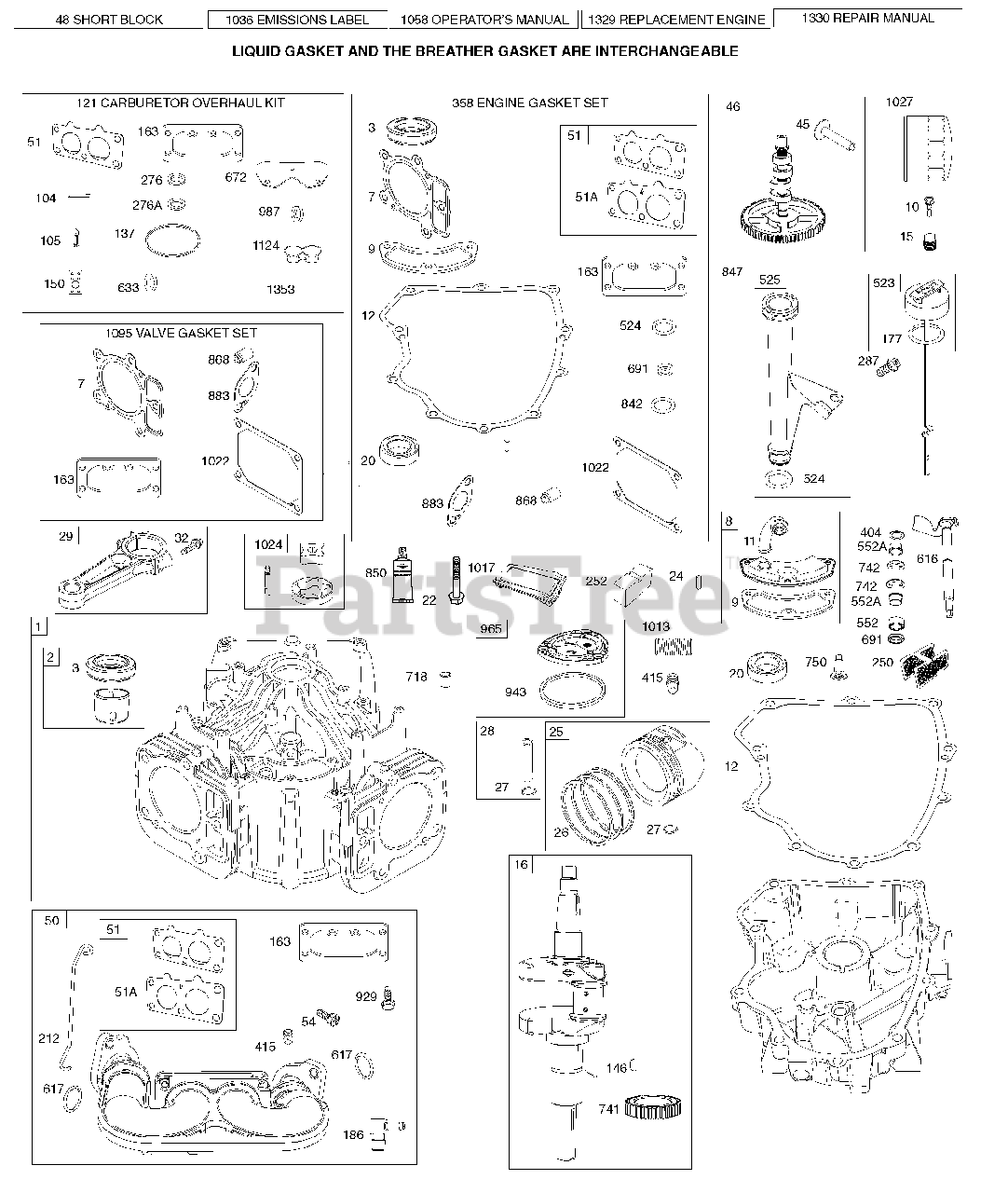

Briggs Engine Image 1 Parts Diagram

  • Title

1

Husqvarna 795118

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 499585

Bushing/Seal Kit (Magneto Side)

$

$

Not available

3

391086s

Seal-Oil (Magneto Side)

$

$

Not available

4

Husqvarna 796230

Sump-Engine

$

$

Currently unavailable

5

Husqvarna 796231

Head-Cylinder (Cylinder #1)

$

$

Currently unavailable

5A

Husqvarna 796232

Head-Cylinder (Cylinder #2)

$

$

Currently unavailable

7

Husqvarna 693997

Gasket-Cylinder Head

$24.99

$

In Stock, Qty 20+

0

8

Husqvarna 792185

Breather Assembly

$

$

Currently unavailable

9

Husqvarna 690937

Gasket-Breather

Note: (Liquid Gasket and The Breather Gasket Are Interchangeable)

$

$

Not available

10

Husqvarna 697551

Screw (Breather Assembly)

$

$

Currently unavailable

11

Husqvarna 792184

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 697227

Gasket-Crankcase

$

$

Currently unavailable

13

Husqvarna 793988

Screw (Cylinder Head)

$

$

Currently unavailable

15

Husqvarna 690946

Plug-Oil Drain

$

$

Not available

16

Husqvarna 796540

Crankshaft

$

$

Currently unavailable

20

Husqvarna 795389

Seal-Oil (PTO Side)

$

$

Currently unavailable

22

Husqvarna 694966

Screw (Crankcase Cover/Sump)

$

$

Currently unavailable

23

Husqvarna 691054

Flywheel

$

$

Not available

24

222698s

Key-Flywheel

$

$

Not available

25

Husqvarna 793647

Piston Assembly (Standard)

$

$

Currently unavailable

25

Husqvarna 793648

Piston Assembly (020" Oversize)

$

$

Currently unavailable

26

Husqvarna 791787

Ring Set (Standard)

$

$

Currently unavailable

26

Husqvarna 791792

Ring Set (.020" Oversize)

$

$

Currently unavailable

27

Husqvarna 690975

Lock-Piston Pin

$

$

Not available

28

Husqvarna 696581

Pin-Piston

$

$

Currently unavailable

29

Husqvarna 699699

Rod-Connecting

$

$

Currently unavailable

32

Husqvarna 690976

Screw (Connecting Rod)

$

$

Not available

33

Husqvarna 697576

Valve-Exhaust

$

$

Currently unavailable

34

Husqvarna 792200

Valve-Intake

$

$

Currently unavailable

35

Husqvarna 694865

Spring-Valve (Intake)

$

$

Currently unavailable

36

Husqvarna 694865

Spring-Valve (Exhaust)

$

$

Currently unavailable

40

Husqvarna 690964

Retainer-Valve

$

$

Not available

42

Husqvarna 499586

Keeper-Valve

$

$

Not available

45

Husqvarna 690977

Tappet-Valve

$

$

Not available

46

Husqvarna 792555

Camshaft

$

$

Currently unavailable

48

Husqvarna 698172

Short Block

$

$

Currently unavailable

50

Husqvarna 695241

Manifold-Intake

$

$

Currently unavailable

51

Husqvarna 795123

Gasket-Intake

$

$

Currently unavailable

51A

Husqvarna 690950

Gasket-Intake

$2.99

$

In Stock, Qty 20+

0

53

Husqvarna 690951

Stud (Carburetor)

$

$

Not available

54

Husqvarna 699816

Screw (Intake Manifold)

$

$

Currently unavailable

73

Husqvarna 494439

Screen-Rotating

$

$

Not available

74

Husqvarna 698425

Screw (Rotating Screen)

$

$

Currently unavailable

75

Husqvarna 691056

Washer (Flywheel)

$

$

Not available

95

Husqvarna 690718

Screw (Throttle Valve)

$

$

Not available

98

Husqvarna 699721

Kit-Idle Speed

$

$

Currently unavailable

104

Husqvarna 694918

Pin-Float Hinge

$

$

Currently unavailable

105

Husqvarna 698537

Valve-Float Needle

$

$

Currently unavailable

108

Husqvarna 699723

Valve-Choke

$

$

Currently unavailable

117

Husqvarna 791501

Jet-Main (Standard) (Left)

$

$

Currently unavailable

117A

Husqvarna 791502

Jet-Main (Standard) (Right)

$

$

Currently unavailable

118

Husqvarna 695415

Jet-Main (High Altitude) (Left)

$

$

Currently unavailable

118A

Husqvarna 843099

Jet-Main (High Altitude) (Right)

$

$

Currently unavailable

121

Husqvarna 792455

Kit-Carburetor Overhaul

$

$

Currently unavailable

125

Husqvarna 796259

Carburetor

$

$

Currently unavailable

130

Husqvarna 690993

Valve-Throttle

$

$

Not available

131

Husqvarna 499805

Kit-Throttle Shaft

$

$

Not available

133

Husqvarna 699724

Float-Carburetor

$

$

Currently unavailable

135

Husqvarna 699729

Tube-Fuel Transfer

$

$

Currently unavailable

137

Husqvarna 690994

Gasket-Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Husqvarna 796228

Kit-Choke Shaft

$

$

Currently unavailable

142

Husqvarna 699726

Nozzle-Carburetor

$

$

Currently unavailable

146

Husqvarna 690979

Key-Timing

$

$

Currently unavailable

150

Husqvarna 690995

Gasket-Nozzle

$

$

Not available

160

Husqvarna 699727

Retainer-Solenoid (Brass)

$

$

Currently unavailable

163

Husqvarna 691001

Gasket-Air Cleaner

$

$

Not available

177

Husqvarna 691031

Seal-O Ring (Dipstick)

$

$

Not available

186

Husqvarna 796532

Hose-Connector (Oil Drain Hose)

$

$

Currently unavailable

187

Husqvarna 791766

Line-Fuel (Cut to Required Length)

$

$

Currently unavailable

188

Husqvarna 697551

Screw (Control Bracket)

$

$

Currently unavailable

192

Husqvarna 690083

Adjuster-Rocker Arm

$

$

Not available

197

Husqvarna 697820

Screw (Back Plate)

$

$

Currently unavailable

209

Husqvarna 796224

Spring-Governor (Yellow/Black)

$

$

Currently unavailable

211

Husqvarna 796225

Spring-Governed Idle (Orange)

$

$

Currently unavailable

212

Husqvarna 695238

Link-Throttle

$

$

Currently unavailable

216

Husqvarna 796229

Link-Choke

$

$

Currently unavailable

217

Husqvarna 695409

Spring-Choke Return

$

$

Currently unavailable

219

Husqvarna 793338

Gear-Governor

$

$

Currently unavailable

220

Husqvarna 690412

Washer (Governor Gear)

$

$

Not available

221

Husqvarna 841026

Cup-Governor

$

$

Currently unavailable

222

Husqvarna 796226

Bracket-Control

$

$

Currently unavailable

227

Husqvarna 796223

Lever-Governor Control

$

$

Currently unavailable

231

Husqvarna 690718

Screw (Choke Valve)

$

$

Not available

240

Husqvarna 691035

Filter-Fuel

$

$

Currently unavailable

250

Husqvarna 690957

Retainer-Breather

$

$

Not available

252

Husqvarna 690956

Collector-Oil

$

$

Not available

265

Husqvarna 691024

Clamp-Casing

$

$

Not available

267

Husqvarna 792629

Screw (Casing Clamp)

$

$

Currently unavailable

276

Husqvarna 794271

Washer-Sealing (Aluminum)

$

$

Currently unavailable

278

Husqvarna 792651

Washer (Governor Control Lever)

$

$

Currently unavailable

287

Husqvarna 691108

Screw (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

304

Husqvarna 796597

Housing-Blower

$

$

Currently unavailable

305

Husqvarna 691005

Screw (Blower Housing)

$

$

Not available

305A

Husqvarna 698336

Screw (Blower Housing)

$

$

Currently unavailable

305B

Husqvarna 790690

Screw (Blower Housing)

Note: (Blower Housing to Intake Elbow)

$

$

Currently unavailable

309

Husqvarna 497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Husqvarna 690323

Screw (Starter Motor)

$

$

Currently unavailable

332

Husqvarna 691059

Nut (Flywheel)

$

$

Currently unavailable

333

Husqvarna 691060

Armature-Magneto

$

$

Not available

334

Husqvarna 691061

Screw (Magneto Armature)

$

$

Not available

337

491055s

Plug-Spark

$

$

Not available

358

Husqvarna 694012

Gasket Set-Engine

$

$

Not available

385

Husqvarna 697551

Screw (Fuel Pump)

$

$

Currently unavailable

387

Husqvarna 808656

Pump-Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

404

Husqvarna 690442

Washer (Governor Crank)

$

$

Not available

415

Husqvarna 794903

Plug (Oil Pressure Switch Hole)

$

$

Currently unavailable

415A

Husqvarna 690283

Plug (Intake Manifold)

$

$

Currently unavailable

418

Husqvarna 795912

Plate-Carburetor

$

$

Currently unavailable

431

Husqvarna 790816

Elbow-Intake

$

$

Currently unavailable

445

499486s

Filter-Air Cleaner Cartridge

$

$

Not available

447

Husqvarna 691003

Screw (Air Guide Cover) (Long)

$

$

Not available

447A

Husqvarna 697551

Screw (Air Guide Cover) (Short)

$

$

Currently unavailable

462

Husqvarna 691261

Washer (Starter Cable)

$

$

Not available

467

Husqvarna 691008

Knob-Air Cleaner

$

$

Not available

474

Husqvarna 696459

Alternator

$

$

Currently unavailable

505

Husqvarna 691029

Nut (Governor Control Lever)

$

$

Not available

510

Husqvarna 696541

Drive-Starter

$

$

Currently unavailable

512

Husqvarna 796530

Hose-Oil Drain

$

$

Currently unavailable

513

Husqvarna 692024

Clutch-Drive

$

$

Currently unavailable

523

Husqvarna 691036

Dipstick

$

$

Not available

524

Husqvarna 691032

Seal-Dipstick Tube

$

$

Not available

525

Husqvarna 691037

Tube-Dipstick

$

$

Not available

544

Armature-Starter

Note: (Service by 497595 Starter Motor Only, Reference 309)

$

$

Not available

552

Husqvarna 690552

Bushing-Governor Crank

$

$

Not available

552A

Husqvarna 690553

Bushing-Governor Crank

$

$

Not available

562

Husqvarna 690311

Screw (Governor Control Lever)

$

$

Not available

573

Husqvarna 790444

Plate-Back

$

$

Currently unavailable

601

Husqvarna 791850

Hose-Clamp (Green)

$

$

Currently unavailable

601A

Husqvarna 691038

Hose-Clamp (Black)

$

$

Not available

615

Husqvarna 698290

Retainer-Governor Shaft

$

$

Currently unavailable

616

Husqvarna 691045

Crank-Governor

$

$

Not available

617

Husqvarna 697891

Seal-O Ring (Intake Manifold) (Red)

$

$

Currently unavailable

628

Husqvarna 697551

Screw (Fuel Pump Bracket)

$

$

Currently unavailable

633

Husqvarna 699813

Seal-Choke/Throttle Shaft (Choke Shaft)

$

$

Currently unavailable

635

66538s

Boot-Spark Plug

$

$

Not available

654

Husqvarna 690958

Nut (Carburetor)

$

$

Not available

668

Husqvarna 691215

Spacer (Rotating Screen)

$

$

Not available

672

Husqvarna 690234

Gasket-Carburetor Plate

$

$

Not available

691

Husqvarna 790574

Seal-Governor Shaft

$

$

Currently unavailable

697

Husqvarna 690372

Screw (Drive Cap)

$

$

Not available

703

Husqvarna 691010

Clip

$

$

Not available

718

Husqvarna 690959

Pin-Locating

$

$

Not available

742

Husqvarna 690328

Retainer-E Ring

$

$

Not available

750

Husqvarna 796208

Screw (Oil Pump Cover)

$

$

Currently unavailable

783

Husqvarna 695708

Gear-Pinion

$

$

Currently unavailable

788

Husqvarna 793145

Bracket-Fuel Pump

$

$

Currently unavailable

789

Husqvarna 698330

Harness-Wiring

$

$

Currently unavailable

798

Husqvarna 697890

Screw (Rocker Arm)

$

$

Currently unavailable

801

Husqvarna 691283

Cap-Drive

$

$

Not available

802

Husqvarna 691286

Cap-End

$

$

Not available

803

Housing-Starter

Note: (Service by 497595 Starter Motor Only, Reference 309)

$

$

Not available

847

Husqvarna 499602

Dipstick/Tube Assembly

$

$

Not available

850

Husqvarna 100106

Sealant-Liquid

Note: (Used to Seal Breather Assembly and Rocker Cover)

$

$

Currently unavailable

851

493880s

Terminal-Spark Plug

$

$

Not available

865

Husqvarna 691012

Cover-Air Guide (Cylinder #1)

$

$

Not available

865A

Husqvarna 796541

Cover-Air Guide (Cylinder #2)

$

$

Currently unavailable

865B

Husqvarna 691015

Cover-Air Guide (Cylinder #3)

$

$

Not available

868

Husqvarna 690968

Seal-Valve

$

$

Not available

877

Husqvarna 790544

Wire/Connector-Alternator

$

$

Currently unavailable

883

Husqvarna 690970

Gasket-Exhaust

$

$

Not available

914

Husqvarna 691127

Screw (Rocker Cover)

$

$

Currently unavailable

918

Husqvarna 793147

Hose-Vacuum

$

$

Currently unavailable

943

Husqvarna 796222

Seal-O Ring (Oil Pump Cover)

$

$

Currently unavailable

947

Husqvarna 699728

Solenoid-Fuel

$

$

Currently unavailable

965

Husqvarna 796221

Cover-Oil Pump

$

$

Currently unavailable

967

273638s

Filter-Pre Cleaner

$

$

Not available

968

Husqvarna 791242

Cover-Air Cleaner

$

$

Currently unavailable

975

Husqvarna 499810

Bowl-Fuel

$

$

Not available

987

Husqvarna 691000

Seal-Throttle Shaft

$

$

Not available

1005

Husqvarna 791236

Fan-Flywheel

$

$

Currently unavailable

1013

Husqvarna 690954

Nipple-Oil Filter

$

$

Not available

1017

Husqvarna 796214

Screen-Oil Pump

$

$

Currently unavailable

1022

Husqvarna 690971

Gasket-Rocker Cover

Note: (Liquid Gasket and Rocker Cover Gas ket are Interchangeable)

$

$

Not available

1023

Husqvarna 793146

Cover-Rocker (Cylinder #1)

$

$

Currently unavailable

1023A

Husqvarna 499600

Cover-Rocker (Cylinder #2)

$

$

Not available

1024

Husqvarna 796220

Pump-Oil

$

$

Currently unavailable

1026

Husqvarna 690981

Rod-Push (Steel)
(Superseded to 597785)

$7.99

$

In Stock, Qty 20+

0

1026A

Husqvarna 690982

Rod-Push (Aluminum)

$

$

Not available

1027

492932s

Filter-Oil

$

$

Not available

1029

Husqvarna 690972

Arm-Rocker

$

$

Not available

1036

Label-Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1051

Husqvarna 691265

Ring-Retaining

$

$

Not available

1054

Husqvarna 280275

Tie-Cable

$

$

Not available

1058

Husqvarna 276245

Operator's Manual

$

$

Currently unavailable

1059

Husqvarna 698516

Kit-Screw/Washer

$

$

Currently unavailable

1070

Husqvarna 791680

Screw (Flywheel Fan)

$

$

Currently unavailable

1090

Husqvarna 691293

Retainer-Brush

$

$

Not available

1095

Husqvarna 694013

Gasket Set-Valve

$

$

Not available

1000

Husqvarna 791959

Pivot-Rocker Arm

$

$

Currently unavailable

1119

Husqvarna 691183

Screw (Alternator)

$

$

Not available

1124

Husqvarna 690988

Seal-O Ring (Fuel Transfer Tube)

$

$

Not available

1126

Husqvarna 690991

Screw (Fuel Transfer Tube)

$

$

Not available

1127

Husqvarna 690992

Screw (Float Bowl)

$

$

Not available

1128

Husqvarna 690990

Screw (Carburetor Nozzle)

$

$

Not available

1329

Husqvarna 44L7770037

Replacement Engine

$

$

Currently unavailable

1330

Husqvarna 273521

Repair Manual

$

$

Currently unavailable

1342

Husqvarna 699731

Extension-Fuel Transfer Tube

$

$

Currently unavailable

1353

Husqvarna 699725

Seal-O Ring

Note: (Fuel Transfer Tube Extension)

$

$

Currently unavailable
