917.289610 (YTH 2042) - Craftsman Yard Tractor (2010-05) (Sears) Tufftorq Transaxle Parts Diagram

Yard Tractor

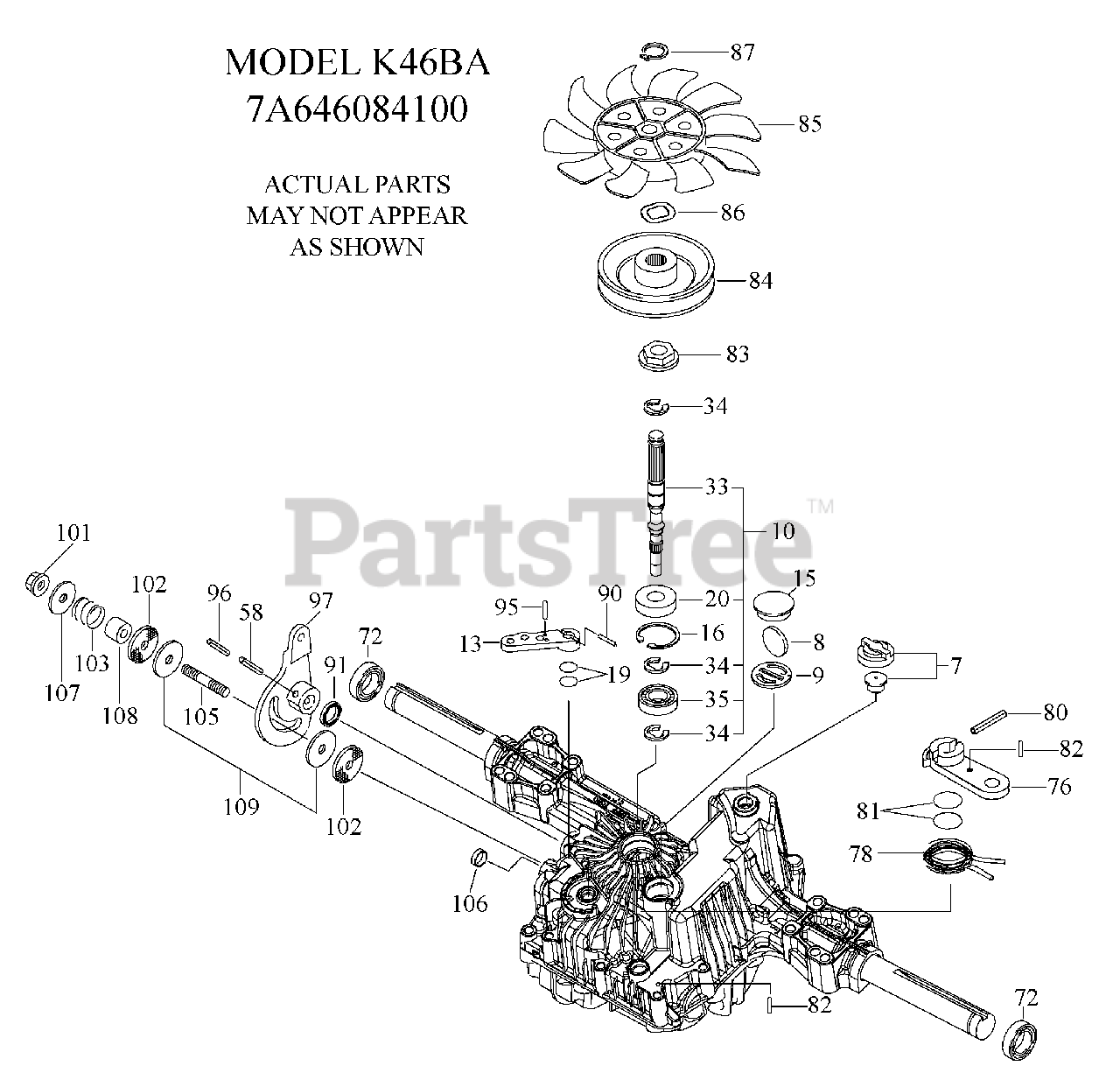

Tufftorq Transaxle Parts Diagram

  • Title

7

Husqvarna 532414395

Vent Valve 15
(Superseded to 583348201)

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532414396

Magnet
(Superseded to 583348301)

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532414397

Magnet Holder

$

$

Currently unavailable

10

Husqvarna 532415923

Pump Shaft/Bearing Kit

$

$

Currently unavailable

13

Husqvarna 532414398

Bypass Lever
(Superseded to 583348501)

$26.99

$

In Stock, only 1 left!

0

15

Husqvarna 532414399

Sealing Cap 30

$

$

Currently unavailable

16

Husqvarna 532414400

Snap Ring C 35

$1.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532414401

O-Ring 1a P10a
(Superseded to 583348801)

$

$

Not available

20

Husqvarna 532414402

Seal Tc 153507
(Superseded to 583345001)

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532414403

Pump Shaft (Standard)

$

$

Currently unavailable

34

Husqvarna 532414404

E-Ring 15

$

$

Currently unavailable

35

Husqvarna 532414405

Bearing 6202c3

$

$

Currently unavailable

58

Husqvarna 532414406

Roll Pin 6 x 40

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532414407

Seal 19 x 32 x 8
(Superseded to 583349301)

$37.99

$

In Stock, only 1 left!

0

76

Husqvarna 532414408

Brake Lever

$

$

Currently unavailable

78

Husqvarna 532414409

Brake Return Spring
(Superseded to 583349501)

$20.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532414410

Spring Pin 5 x 32
(Superseded to 583349601)

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532414411

O-Ring 1a P12
(Superseded to 583349701)

$7.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532414412

Spring Pin 4x16
(Superseded to 583349801)

$6.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532414413

Spine Collar
(Superseded to 583349901)

$13.99

$

In Stock, only 2 left!

0

84

Husqvarna 532414414

Pulley L
(Superseded to 583350001)

$87.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532414415

Fan, Black

$

$

Currently unavailable

86

Husqvarna 532414416

Wave Washer
(Superseded to 583350201)

$

$

Not available

87

Husqvarna 532414417

Snap Ring
(Superseded to 583350301)

$

$

Not available

90

Husqvarna 532414418

Spring Pin 3.0a x 20
(Superseded to 583350401)

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532414419

Oil Seal 16 x 22 x 03
(Superseded to 583351001)

$12.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532415850

Spring Pin 3.0a x 16
(Superseded to 583356901)

$

$

Not available

96

Husqvarna 532414420

Roll Pin 3.5 x 40
(Superseded to 583350601)

$6.99

$

Usually ships in 3-10 days

0

97

Husqvarna 532414421

Control Lever

$

$

Currently unavailable

101

Husqvarna 532414216

Lock Nut 10

$

$

Currently unavailable

102

Husqvarna 532414423

Washer 10 x 40 x 4

$

$

Currently unavailable

103

Husqvarna 532414424

Spring

$

$

Currently unavailable

105

Husqvarna 532414425

Stud 10 x 60

$

$

Currently unavailable

106

Husqvarna 532414426

Sealing Cap 18

$

$

Currently unavailable

107

Husqvarna 532414427

Washer 10 x 36 x 2.8

$

$

Currently unavailable

108

Husqvarna 532414428

Collar 10 x 20 x 17

$

$

Currently unavailable

109

Husqvarna 532414429

Friction Plate Kit

$

$

Currently unavailable
