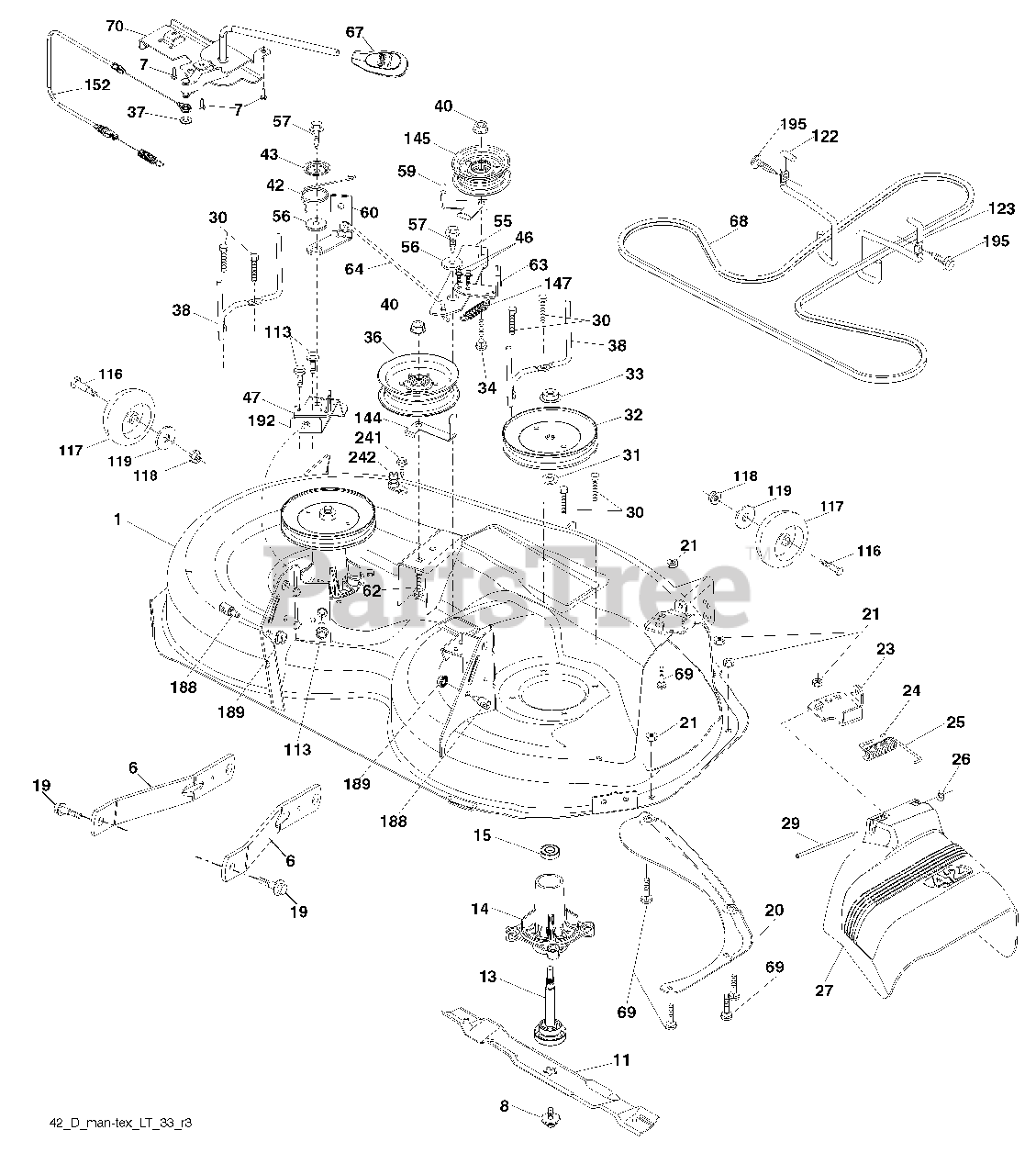

917.289610 (YTH 2042) - Craftsman Yard Tractor (2010-05) (Sears) Mower Deck Parts Diagram

Yard Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532402999

Mower Housing
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

Arm Suspension

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

Screw #10 x .750 BOS Thread

$

$

Not available

8

Husqvarna 532193003

Bolt/Washer Asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

Blade, 42" Hi-Lift

Note: (For bagging or discharge)

$20.99

$

In Stock, Qty 20+

0

Husqvarna 532134149

Blade, 42" Mulching Std
(Superseded to 594892701)

Note: (For mulching mowers only)

$

$

Not available

Husqvarna 532139775

Blade, 42" Mulching Premium
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

Husqvarna 532424752

Blade 42SP" 3N1
(Superseded to 532422719)

$20.99

$

In Stock, Qty 10

0

Husqvarna 532422719

Blade 42SP" 3N1 Premium

$20.99

$

In Stock, Qty 10

0

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

Baffle, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Deflector

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Deflector

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

Shield, Deflector

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

Washer, Spacer

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532197473

Pulley, Mandrel
(Superseded to 532195945)

$14.99

$

In Stock, Qty 16

0

33

Husqvarna 532400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

Pulley, Idler, Flat
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

37

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532432520

Keeper Belt LH Mandrel
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

40

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

Spring Torsion Brake

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532197256

Spring Torsion Retainer

$6.49

$

In Stock, Qty 7

0

46

Husqvarna 532137729

Screw Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197250

Bracket Clutch Cable

$6.49

$

In Stock, only 2 left!

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

Guard, Tuv Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

60

Husqvarna 532197261

Arm Brake Mower
(Superseded to 597074201)

$14.99

$

In Stock, Qty 11

0

62

Husqvarna 872110616

Bolt Rd Hd Sq Nk 3/8-16 unc x 2

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532199477

Arm Brake Mower
(Superseded to 532199478)

$17.99

$

In Stock, Qty 16

0

64

Husqvarna 532199918

Link Brake

$24.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

Handle Clutch Cable

$12.99

$

In Stock, only 1 left!

0

68

Husqvarna 532429636

V-Belt
(Superseded to 598559101)

$51.99

$

In Stock, Qty 12

0

69

Husqvarna 872140505

Bolt
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532406563

Clutch Asm Manual

$

$

Not available

113

Husqvarna 817000510

Screw 5/16-18

$7.49

$

In Stock, Qty 12

0

116

Husqvarna 532124842

Bolt, Shoulder
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532188606

Wheel, Gauge
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

118

Husqvarna 873930600

Nut, Crownlock 3/8-1
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 13/32 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532197258

Keeper Belt Engine LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

123

Husqvarna 532197259

Keeper Belt Engine RH

$

$

Not available

144

Husqvarna 532199204

Keeper Belt

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532193197

Pulley Idler
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

147

Husqvarna 532401971

Spring Return

$5.99

$

In Stock, Qty 5

0

152

Husqvarna 532435110

Manual Clutch Cable

$37.99

$

In Stock, Qty 7

0

188

Husqvarna 532195161

Stud Fastener

$

$

Not available

189

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

192

Husqvarna 532197260

Bracket Brake Stand LH

$

$

Not available

195

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

241

Husqvarna 532152927

Screw TT #10-32 5 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

Port Washout

$8.99

$

In Stock, Qty 17

0

Husqvarna 532416405

Coupling Quick connect

$10.99

$

In Stock, Qty 6

0

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 17

0

Husqvarna 532432937

Replacement Mower, Complete
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0
