917.289600 (LTH 18538) - Craftsman Yard Tractor (2010-05) (Sears) Mower Deck Parts Diagram

Yard Tractor

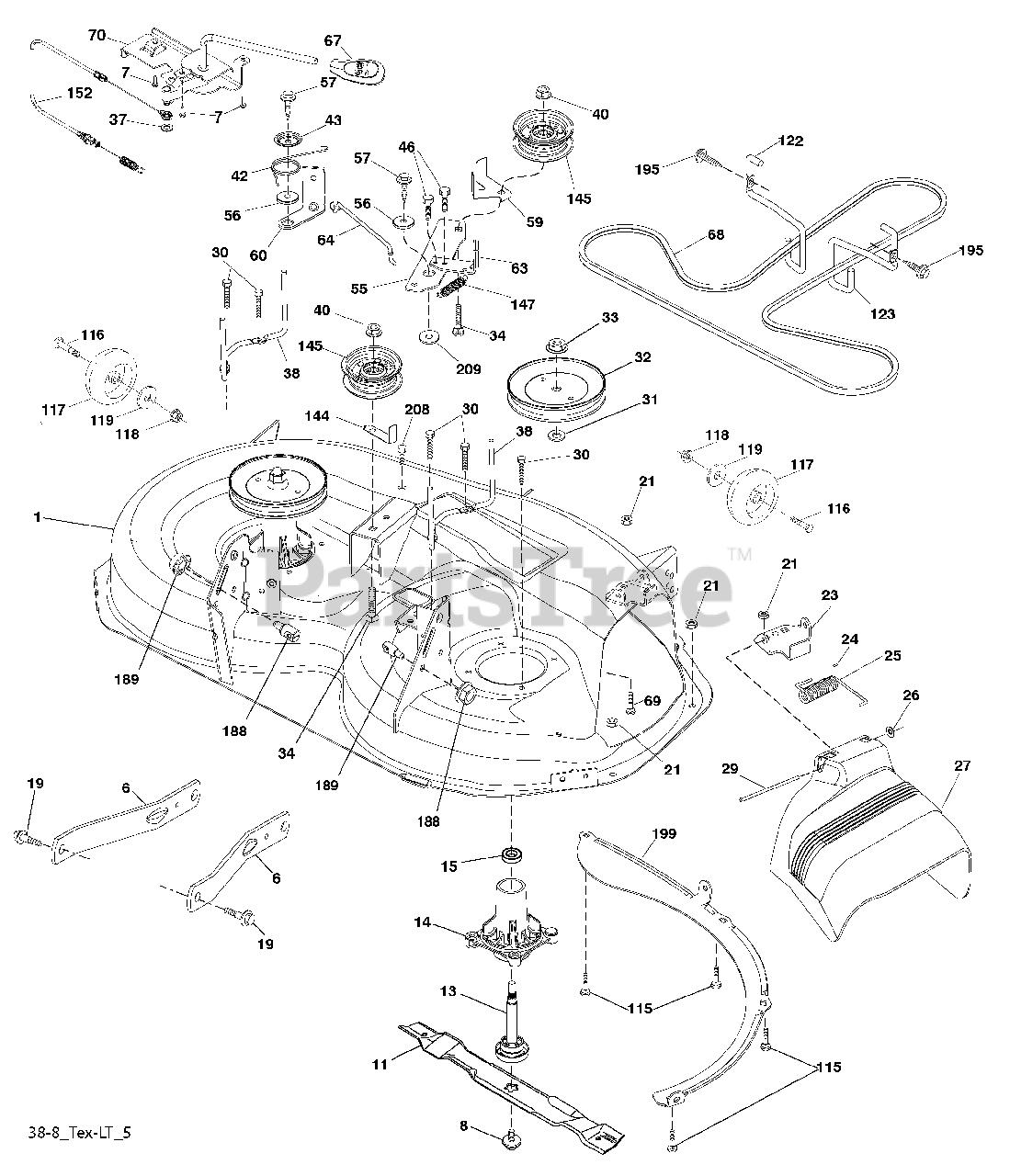

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532411483

Mower Housing
(Superseded to 532410715)

$399.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

Arm Suspension

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

8

Husqvarna 532193003

Bolt/Washer asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532193957

Blade 38" 3N1 PREMIUM
(Superseded to 581116302)

$17.99

$

Usually ships in 3-10 days

0

Husqvarna 532138497

Blade 38" HI PERF

$26.99

$

In Stock, Qty 7

0

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Deflector

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Deflector

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532193968

Shield, Deflector
(Superseded to 532192572)

$80.99

$

In Stock, only 1 left!

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

Washer, Spacer

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532199789

Pulley, Mandrel

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199541

Keeper Belt LH Mandrel
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

40

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

Spring Torsion Brake

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532197256

Spring Torsion Retainer

$6.49

$

In Stock, Qty 7

0

46

Husqvarna 532137729

Screw 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

Guard, Tuv Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

60

Husqvarna 532199471

Arm Brake Mower LH
(Superseded to 532400132)

$17.99

$

In Stock, only 3 left!

0

63

Husqvarna 532199470

Arm Brake Mower RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

64

Husqvarna 532199918

Link Brake

$24.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

Handle Clutch Cable

$12.99

$

In Stock, only 1 left!

0

68

Husqvarna 532408381

V-Belt

$60.99

$

In Stock, only 1 left!

0

69

Husqvarna 872140505

Bolt
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532401246

Clutch Asm Manual

$80.99

$

In Stock, only 1 left!

0

115

Husqvarna 872110505

Bolt Carr. 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532124842

Bolt, Shoulder
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532188606

Wheel, Gauge
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

118

Husqvarna 873930600

Nut Lock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532197258

Keeper Belt Engine LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

123

Husqvarna 532197259

Keeper Belt Engine RH

$

$

Not available

144

Husqvarna 532193414

Keeper Belt

$6.49

$

In Stock, only 1 left!

0

145

Husqvarna 532193197

Pulley Idler
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

147

Husqvarna 532401872

Spring Return

$5.99

$

In Stock, Qty 7

0

152

Husqvarna 532435111

Manual Clutch Cable

$34.99

$

In Stock, only 2 left!

0

188

Husqvarna 532195161

Stud Fastener

$

$

Not available

189

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

199

Husqvarna 532400095

Baffle Vortex

$18.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 819133210

Washer 13/32 x 2 x 10
(Superseded to 532413524)

$

$

Not available

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 17

0

Husqvarna 532410716

Replacement Mower, Complete

$854.99

$

Usually ships in 3-10 days

0
