917.289600 (LTH 18538) - Craftsman Yard Tractor (2010-05) (Sears) Engine Image 1 Parts Diagram

Yard Tractor

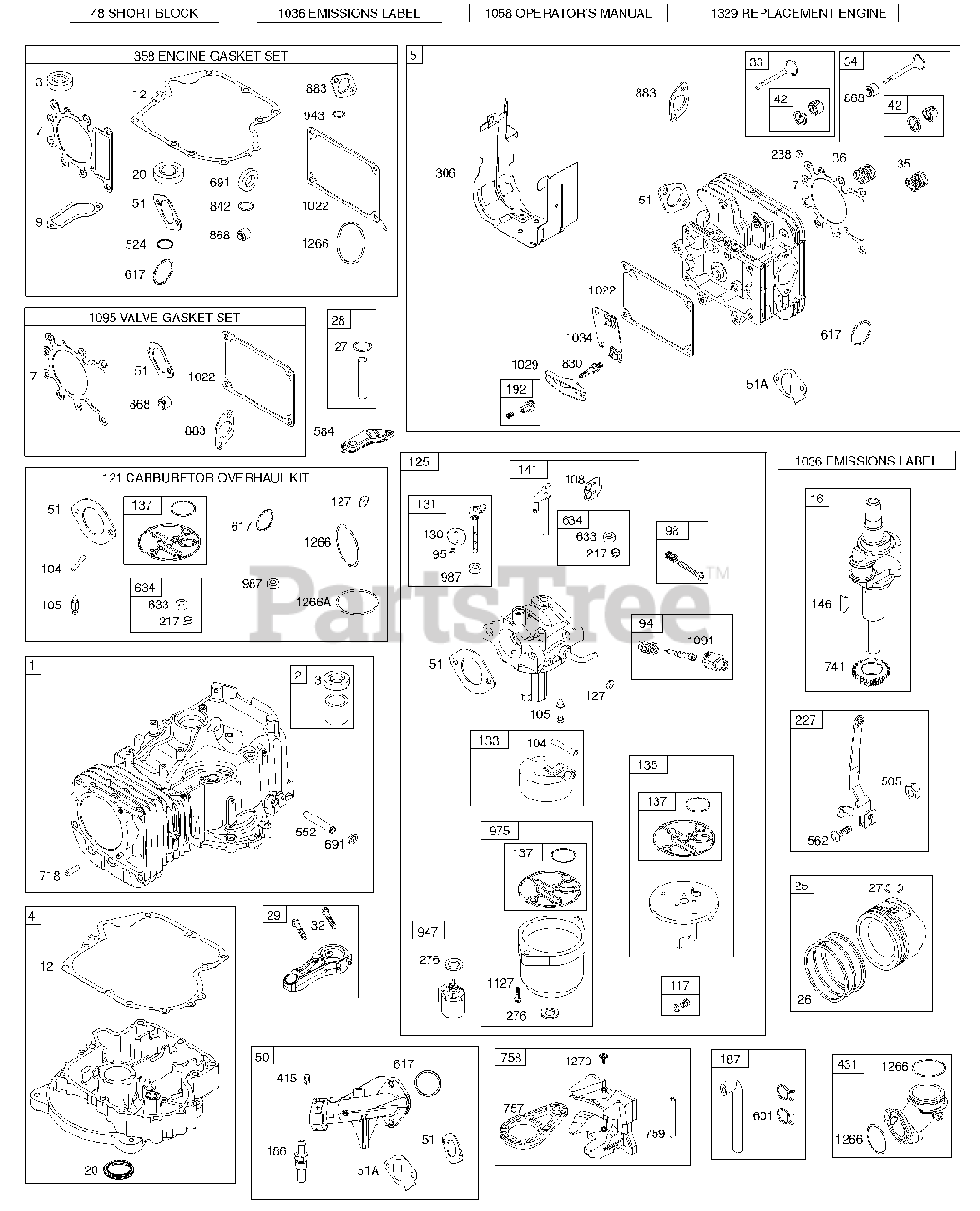

Engine Image 1 Parts Diagram

  • Title

1

Husqvarna 796010

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 399265

Bushing/SealKit (Magneto Side)

$

$

Not available

3

391086s

Seal-Oil (Magneto Side)

$

$

Not available

4

Husqvarna 697106

Sump-Engine

$

$

Currently unavailable

5

Husqvarna 796025

Head-Cylinder

$

$

Currently unavailable

7

Husqvarna 796584

Gasket-Cylinder Head

$

$

Currently unavailable

11

Husqvarna 794683

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 697110

Gasket-Crankcase

$

$

Currently unavailable

13

Husqvarna 793988

Screw (Cylinder Head)

$

$

Currently unavailable

15

Husqvarna 690946

Plug-Oil Drain

$

$

Not available

16

Husqvarna 797579

Crankshaft

$

$

Currently unavailable

20

Husqvarna 795387

Seal-Oil (PTO Side)

$

$

Currently unavailable

22

Husqvarna 692125

Screw (Crankcase Cover/Sump)

$

$

Currently unavailable

23

Husqvarna 698281

Flywheel

$

$

Currently unavailable

24

222698s

Key-Flywheel

$

$

Not available

25

Husqvarna 796172

Piston Assembly (Standard)

$

$

Currently unavailable

Husqvarna 796173

Piston Assembly (.020" Oversize)

$

$

Currently unavailable

26

Husqvarna 791936

Ring Set (Standard)

$

$

Currently unavailable

Husqvarna 792649

Ring Set (.020" Oversize)

$

$

Currently unavailable

27

Husqvarna 698469

Lock-Piston Pin

$

$

Currently unavailable

28

Husqvarna 796007

Pin-Piston

$

$

Currently unavailable

29

Husqvarna 794122

Rod-Connecting

$

$

Currently unavailable

32

Husqvarna 791118

Screw (Connecting Rod)

$

$

Currently unavailable

33

Husqvarna 792868

Valve-Exhaust

$

$

Currently unavailable

34

Husqvarna 791935

Valve-Intake

$

$

Currently unavailable

35

Husqvarna 691279

Spring-Valve (Intake)

$

$

Currently unavailable

36

Husqvarna 691279

Spring-Valve (Exhaust)

$

$

Currently unavailable

37

Husqvarna 697352

Guard-Flywheel

$

$

Currently unavailable

42

Husqvarna 499586

Keeper-Valve

$

$

Not available

43

Husqvarna 691968

Slinger-Governor/Oil

$

$

Currently unavailable

45

Husqvarna 690564

Tappet-Valve

$

$

Currently unavailable

46

Husqvarna 793880

Gear-Cam

$

$

Currently unavailable

48

Husqvarna 697761

Short Block

$

$

Currently unavailable

50

Husqvarna 796180

Manifold-Intake

$

$

Currently unavailable

51

Husqvarna 692137

Gasket-Intake

$

$

Currently unavailable

51A

Husqvarna 796081

Gasket-Intake

$

$

Currently unavailable

53

Husqvarna 690227

Stud (Carburetor)

$

$

Not available

54

Husqvarna 691148

Screw (Intake Manifold)

$

$

Currently unavailable

78

Husqvarna 691003

Screw (Flywheel Guard)

$

$

Not available

94

Husqvarna 793610

Kit-Idle Mixture

$

$

Currently unavailable

95

Husqvarna 690718

Screw (Throttle Valve)

$

$

Not available

98

Husqvarna 695408

Kit-Idle Speed

$

$

Currently unavailable

104

Husqvarna 694918

Pin-Float Hinge

$

$

Currently unavailable

105

Husqvarna 696136

Valve-Float Needle

$

$

Currently unavailable

108

Husqvarna 695419

Valve-Choke

$

$

Currently unavailable

117

Husqvarna 843099

Jet-Main (Standard)

$

$

Currently unavailable

118

Husqvarna 790890

Jet-Main (High Altitude)

$

$

Currently unavailable

121

Husqvarna 796184

Kit-Carburetor Overhaul

$

$

Currently unavailable

125

Husqvarna 796109

Carburetor

$

$

Currently unavailable

127

Husqvarna 690727

Plug-Welch

$

$

Currently unavailable

130

Husqvarna 699500

Valve-Throttle

$

$

Currently unavailable

131

Husqvarna 699501

Kit-Throttle Shaft

$

$

Currently unavailable

133

Husqvarna 694914

Float-Carburetor

$

$

Currently unavailable

135

Husqvarna 698780

Tube-Fuel Transfer

$

$

Currently unavailable

137

Husqvarna 698781

Gasket-Float Bowl

$

$

Currently unavailable

141

Husqvarna 792777

Kit-Choke Shaft

$

$

Currently unavailable

146

Husqvarna 691639

Key-Timing

$

$

Currently unavailable

186

Husqvarna 794873

Connector-Hose(Intak Manifold)

$

$

Currently unavailable

187

Husqvarna 791805

Line-Fuel (Formed) (Cut to Required Length)

$

$

Currently unavailable

188

Husqvarna 691693

Screw (Control Bracket)

$

$

Currently unavailable

192

Husqvarna 691986

Adjuster-Rocker Arm

$

$

Currently unavailable

202

Husqvarna 691841

Link-Mechanical Governor

$

$

Currently unavailable

209

Husqvarna 692208

Spring-Governor (Green)

$

$

Currently unavailable

216

Husqvarna 691840

Link-Choke

$

$

Currently unavailable

217

Husqvarna 695409

Spring-Choke Return

$

$

Currently unavailable

222

Husqvarna 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Husqvarna 691374

Lever-Governor Control

$

$

Currently unavailable

232

Husqvarna 691842

Spring-Governor Link

$

$

Currently unavailable

238

Husqvarna 691843

Cap-Valve

$

$

Currently unavailable

240

394358s

Filter-Fuel

$

$

Not available

265

Husqvarna 691024

Clamp-Casing

$

$

Not available

267

Husqvarna 794904

Screw (Casing Clamp)

$

$

Currently unavailable

276

Husqvarna 695410

Washer-Sealing

$

$

Currently unavailable

304

Husqvarna 796416

Blower Housing

$

$

Currently unavailable

305

Husqvarna 697102

Screw (Blower Housing) (Long)

$

$

Currently unavailable

305A

Husqvarna 793376

Screw (Blower Housing) (Short)

$

$

Currently unavailable

306

Husqvarna 796006

Shield-Cylinder

$

$

Currently unavailable

307

Husqvarna 691003

Screw (Cylinder Shield)

$

$

Not available

309

Husqvarna 693551

Motor-Starter

$

$

Not available

310

Husqvarna 690323

Screw (Starter Motor)

$

$

Currently unavailable

324

Husqvarna 796308

Screen/Cup Assembly

$

$

Currently unavailable

333

Husqvarna 795315

Armature-Magneto

$

$

Currently unavailable

334

Husqvarna 691061

Screw (Magneto Armature)

$

$

Not available

337

491055s

Plug-Spark

$

$

Not available

358

Husqvarna 796187

Gasket Set-Engine

$

$

Currently unavailable

404

Husqvarna 691691

Washer (Governor Crank)

$

$

Currently unavailable

415

Husqvarna 690283

Plug (Intake Manifold)

$

$

Currently unavailable

415A

Husqvarna 794129

Plug (Cover/Retainer)

$

$

Currently unavailable

431

Husqvarna 697122

Elbow-Intake

$

$

Currently unavailable

445

Husqvarna 698083

Filter-Air Cleaner Cartridge

$

$

Not available

462

Husqvarna 691261

Washer (Starter Cable)

$

$

Not available

474

Husqvarna 696459

Alternator

$

$

Currently unavailable

503

Husqvarna 691532

Strap-Starter

$

$

Currently unavailable

505

Husqvarna 691251

Nut (Governor Control Lever)

$

$

Currently unavailable

510

Husqvarna 693699

Drive-Starter

$

$

Not available

513

Husqvarna 692024

Clutch-Drive

$

$

Currently unavailable

523

Husqvarna 699908

Dipstick

$

$

Currently unavailable

524

Husqvarna 691032

Seal-Dipstick Tube

$

$

Not available

525

Husqvarna 697184

Tube-Dipstick

$

$

Currently unavailable

544

Armature-Starter (Order Starter Motor, Reference 309,693551, for replacement)

$

$

Not available

552

Husqvarna 697144

Bushing-Governor Crank

$

$

Currently unavailable

562

Husqvarna 691119

Screw (Governor Control Lever)

$

$

Currently unavailable

579

Husqvarna 691029

Nut (Starter Cable)

$

$

Not available

584

Husqvarna 794682

Cover-Breather Passage (Use with Liquid Sealant, Reference 850)

$

$

Currently unavailable

585

Husqvarna 697109

Gasket-Breather Passage

$

$

Currently unavailable

601

Husqvarna 791850

Hose-Clamp (Green)

$

$

Currently unavailable

614

Husqvarna 691620

Pin-Cotter

$

$

Currently unavailable

616

Husqvarna 692012

Crank-Governor

$

$

Currently unavailable

617

Husqvarna 692138

Seal-O Ring (Intake Manifold) (Red)

$

$

Currently unavailable

633

Husqvarna 699813

Seal-Choke/Throttle Shaft (Choke Shaft)

$

$

Currently unavailable

634

Husqvarna 698779

Spring/Seal Assembly (Choke Shaft)

$

$

Currently unavailable

635

Husqvarna 691909

Boot-Spark Plug

$

$

Currently unavailable

643

Husqvarna 698401

Retainer-Air Filter

$

$

Currently unavailable

654

Husqvarna 690958

Nut (Carburetor)

$

$

Not available

684

Husqvarna 697157

Screw (Breather Assembly)

$

$

Currently unavailable

691

Husqvarna 692407

Seal-Governor Shaft

$

$

Currently unavailable

718

Husqvarna 690959

Pin-Locating

$

$

Not available

724

Husqvarna 697478

Link-Starter Switch

$

$

Currently unavailable

729

Husqvarna 691224

Clip-Wire

$

$

Currently unavailable

741

Husqvarna 697128

Gear-Timing

$

$

Currently unavailable

757

Husqvarna 793242

Link-Counterweight

$

$

Currently unavailable

758

Husqvarna 793763

Counterweight

$

$

Currently unavailable

759

Husqvarna 697392

Pin-Counterweight

$

$

Currently unavailable

783

Husqvarna 693713

Gear-Pinion

$

$

Not available

789

Husqvarna 698329

Harness-Wiring

$

$

Currently unavailable

797

Husqvarna 693167

Nut (Brush Retainer)

$

$

Not available

801

Husqvarna 691283

Cap-Drive

$

$

Not available

802

Husqvarna 691286

Cap-End

$

$

Not available

803

Housing-Starter (Order Starter Motor, Reference 309,693551, for replacement)

$

$

Not available

830

Husqvarna 691095

Stud-Rocker Arm

$

$

Currently unavailable

842

Husqvarna 691031

Seal-O Ring (Dipstick Tube)

$

$

Not available

847

Husqvarna 790442

Dipstick/Tube Assembly

$

$

Currently unavailable

850

Husqvarna 100106

Sealant-Liquid (Liquid Sealant is interchangeable with Breather Passage Gasket and/or Rocker Cover Gasket)

$

$

Currently unavailable

851

Husqvarna 692424

Terminal-Spark Plug

$

$

Currently unavailable

868

Husqvarna 690968

Seal-Valve

$

$

Not available

883

Husqvarna 692236

Gasket-Exhaust

$

$

Currently unavailable

914

Husqvarna 697551

Screw (Rocker Cover)

$

$

Currently unavailable

947

Husqvarna 699915

Solenoid-Fuel

$

$

Currently unavailable

967

Husqvarna 697015

Filter-Pre Cleaner

$

$

Not available

968

Husqvarna 698403

Cover-Air Cleaner

$

$

Currently unavailable

975

Husqvarna 699502

Bowl-Fuel

$

$

Currently unavailable

987

Husqvarna 698777

Seal-Throttle Shaft

$

$

Currently unavailable

1005

Husqvarna 796083

Fan-Flywheel

$

$

Currently unavailable

1022

272475s

Gasket-Rocker Cover

$

$

Not available

1023

Husqvarna 797421

Cover-Rocker

$

$

Currently unavailable

1026

Husqvarna 692003

Rod-Push (Intake)

$

$

Currently unavailable

Husqvarna 692011

Rod-Push (Exhaust)

$

$

Currently unavailable

1029

Husqvarna 691751

Arm-Rocker

$

$

Currently unavailable

1034

Husqvarna 690822

Guide-Push Rod

$

$

Currently unavailable

1036

Label-Emissions (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1040

Husqvarna 698368

Plate-Trim

$

$

Currently unavailable

1044

Husqvarna 698139

Screw (Flywheel)

$

$

Currently unavailable

1051

Husqvarna 691265

Ring-Retaining

$

$

Not available

1054

Husqvarna 280275

Tie-Cable

$

$

Not available

1059

Husqvarna 698516

Kit-Screw/Washer

$

$

Currently unavailable

1070

Husqvarna 690363

Screw (Flywheel Fan)

$

$

Currently unavailable

1090

Husqvarna 691293

Retainer-Brush

$

$

Not available

1091

Husqvarna 691333

Cap-Limiter

$

$

Currently unavailable

1095

Husqvarna 794152

Gasket Set-Valve

$

$

Currently unavailable

1119

Husqvarna 691183

Screw (Alternator)

$

$

Not available

1127

Husqvarna 695407

Screw (Float Bowl)

$

$

Currently unavailable

1263

Husqvarna 697124

Reed-Breather

$

$

Currently unavailable

1264

Husqvarna 697104

Screw (Breather Reed)

$

$

Currently unavailable

1266

Husqvarna 691917

Seal-O Ring (Intake Elbow) (Red)

$

$

Not available

1266A

Husqvarna 697123

Seal-O Ring (Intake Elbow)

$

$

Currently unavailable

1267

Husqvarna 697419

Latch-Blower Housing

$

$

Currently unavailable

1270

Husqvarna 793243

Plug-AVS Counterweight

$

$

Currently unavailable

1329

Husqvarna 31N707-1374-B1

Replacement Engine

$

$

Currently unavailable

1330

Husqvarna 272147

Repair Manual

$

$

Currently unavailable
