917.289600 (LTH 18538) - Craftsman Yard Tractor (2010-05) (Sears) Engine Parts Diagram

Yard Tractor

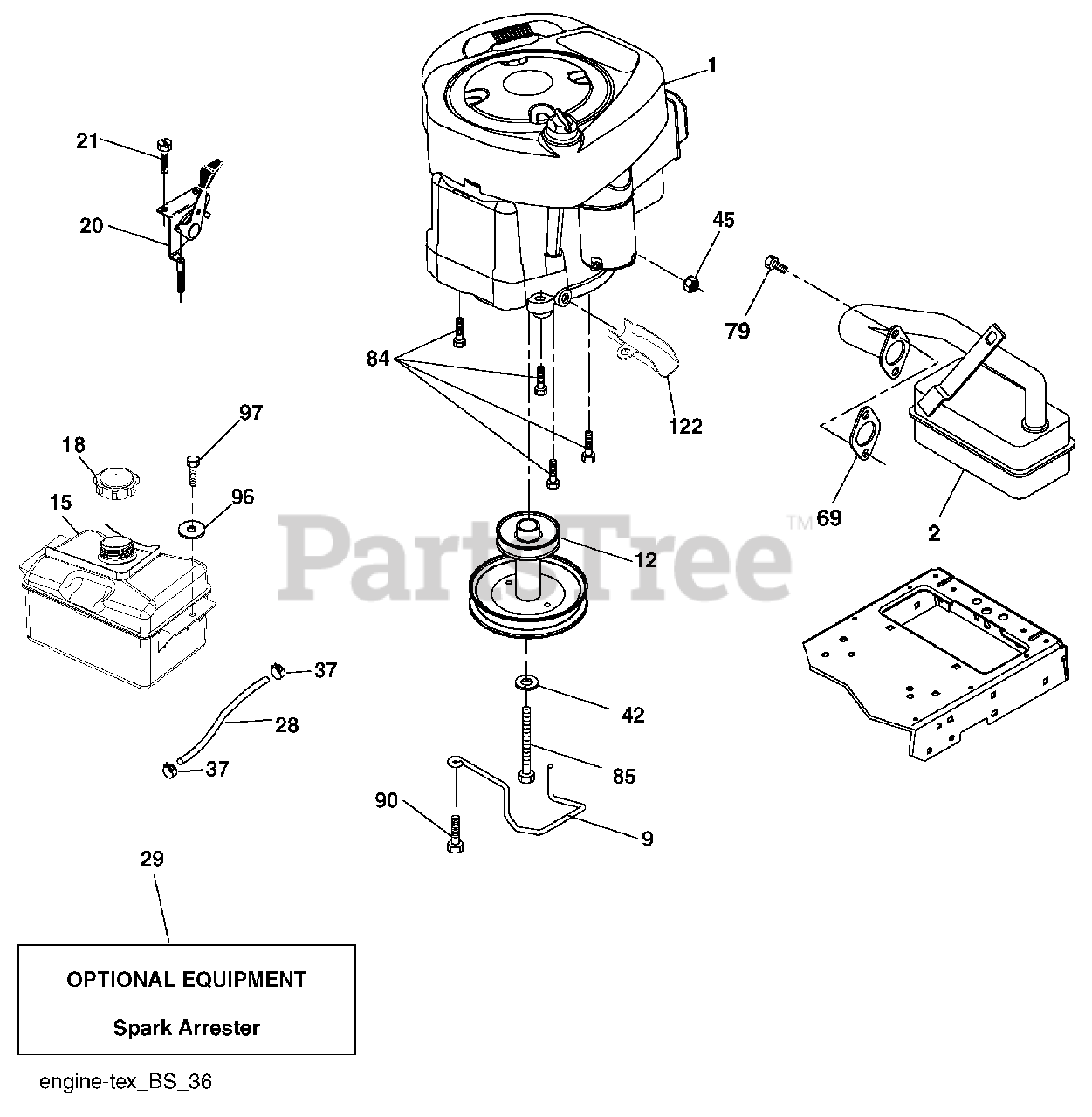

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 31N707-1374-B1

$

$

Not available

2

Husqvarna 532137352

Muffler

$45.99

$

In Stock, only 3 left!

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

12

Husqvarna 532405471

Pulley Engine
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

15

Husqvarna 532407545

Tank Fuel
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430220

Cap Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183897

Control Throttle/Choke
(Superseded to 532176636)

$37.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

28

Husqvarna 532401137

Fuel Line
(Superseded to 587044822)

$11.99

$

In Stock, Qty 9

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

69

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

Screw 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

84

Husqvarna 817060620

Screw 3/8-16 x 1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

96

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

Screw 1/4-20 x 3/4

$6.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

Extension Drain Oil

$40.99

$

In Stock, Qty 8

0
