917.289560 (YTH 2348) - Craftsman Yard Tractor (2009-01) (Sears) Engine Parts Diagram

Yard Tractor

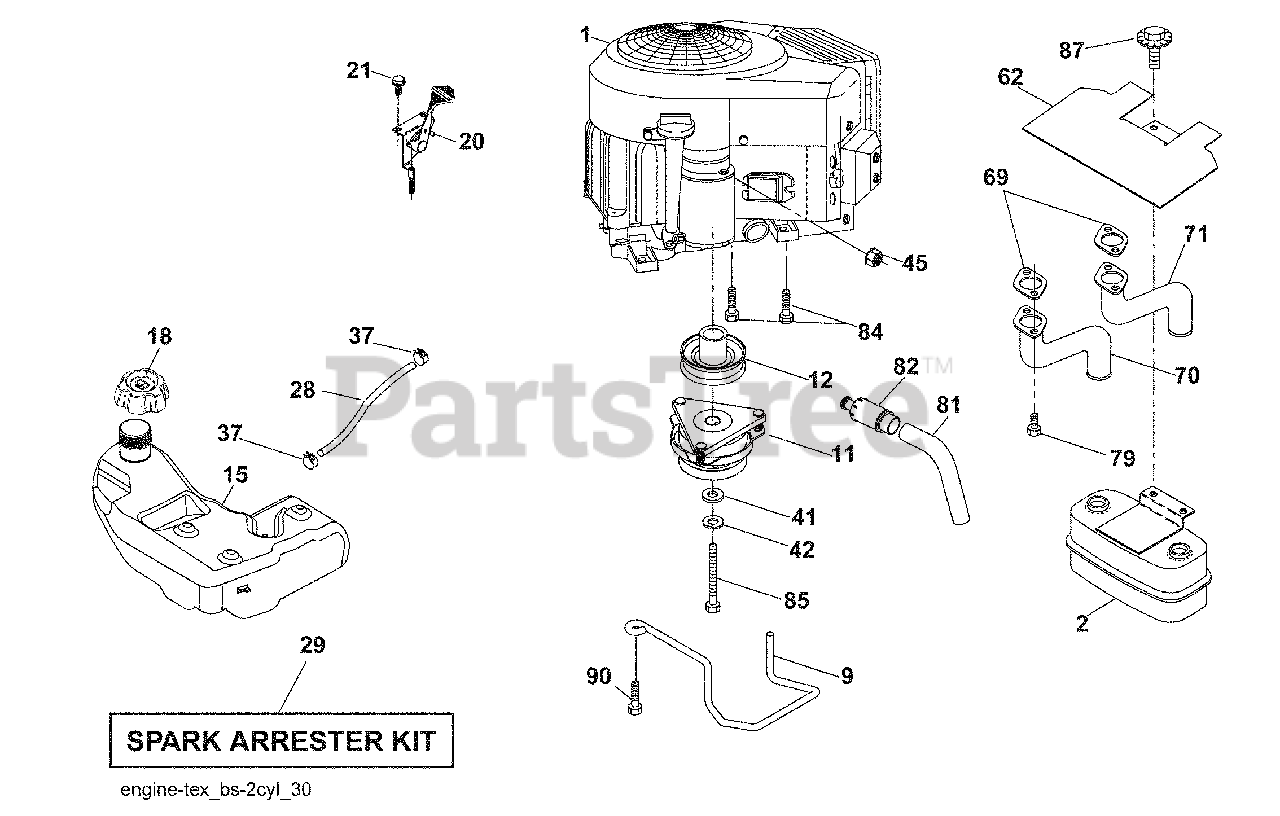

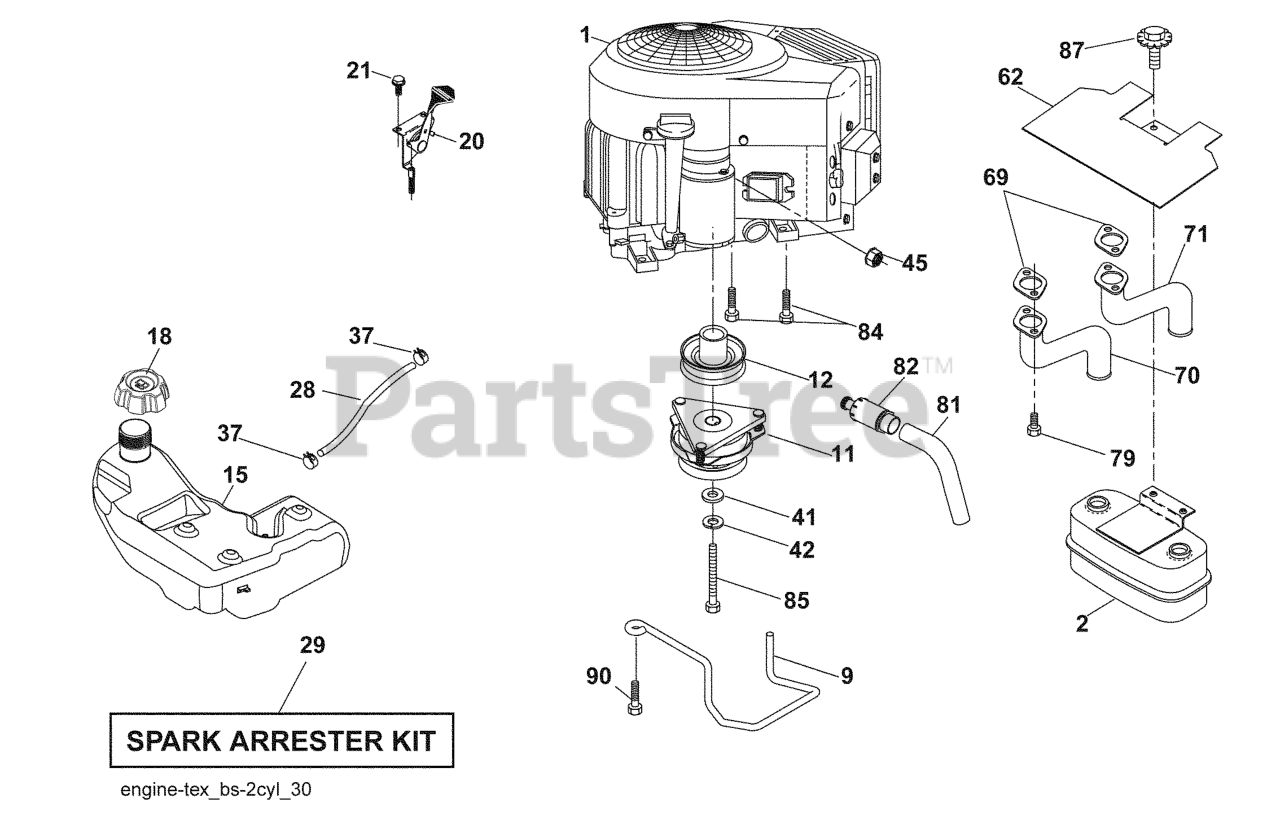

Engine Parts Diagram

  • Title
1

Engine B&S Model No. 445577 1187-B1

$

$

Not available

2

Husqvarna 532149723

Engine B&S Model No. 445577

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

1187-B1
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532400008

Muffler
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

Keeper Belt Engine

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532400021

Clutch Ogura
(Superseded to 532442448)

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

Pulley Engine
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

20

$30.99

$

In Stock, only 1 left!

0

21

$

$

Not available

28

Husqvarna 532401135

Control Throttle
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Screw #10 x 0.750 BOS Thread

$182.99

$

In Stock, only 1 left!

0

37

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Spark Arrester Kit

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Clamp Hose
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532146629

Washer Lock 7/16
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

Nut Keps Hex 1/4-20 unc

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Shield Heat Muffler
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Husqvarna 532160589

Exhaust Tube RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

Screw Socket Head 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 5

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt 7/16-20 x 4
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 532171877

Bolt 5/16-18 x 3/4

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 2 left!

0
