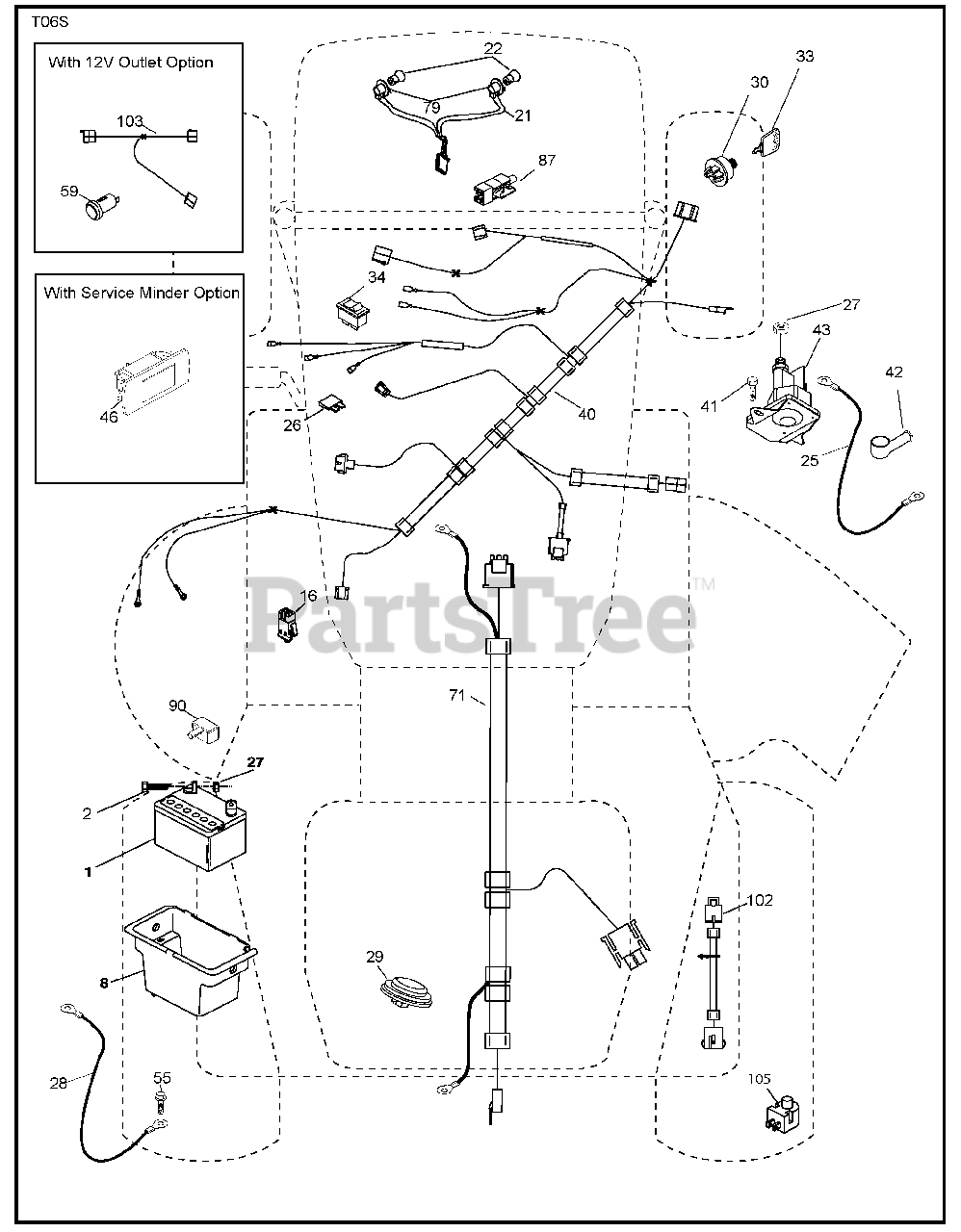

917.289542 (YTH 20 K 46) - Craftsman Yard Tractor (2010-01) (Sears) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532193228

Box Battery

$28.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532400252

Harness Socket Light w/4152J

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532412895

Cable Starter
(Superseded to 585555501)

$9.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532198885

Cable, Ground

$30.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

Switch, Ign

$22.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411935

Key / Chain

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

Switch Light / Reset

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 532400449

Harness Ign.

$40.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

46

Husqvarna 532401763

Gauge Hourmeter
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532401098

Harness Ign. Dash

$120.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Socket Asm. Bulb Twistlock

$18.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532197802

Switch Interlock Clutch Cable

$18.99

$

In Stock, Qty 7

0

90

Husqvarna 532400725

Cover Terminal
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0

102

Husqvarna 532404454

Harness Pigtail

$26.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

Switch Reverse TT GT

$18.99

$

In Stock, only 2 left!

0
