917.287520 (YTH 2042) - Craftsman Yard Tractor (2007-01) (Sears) Engine Parts Diagram

Yard Tractor

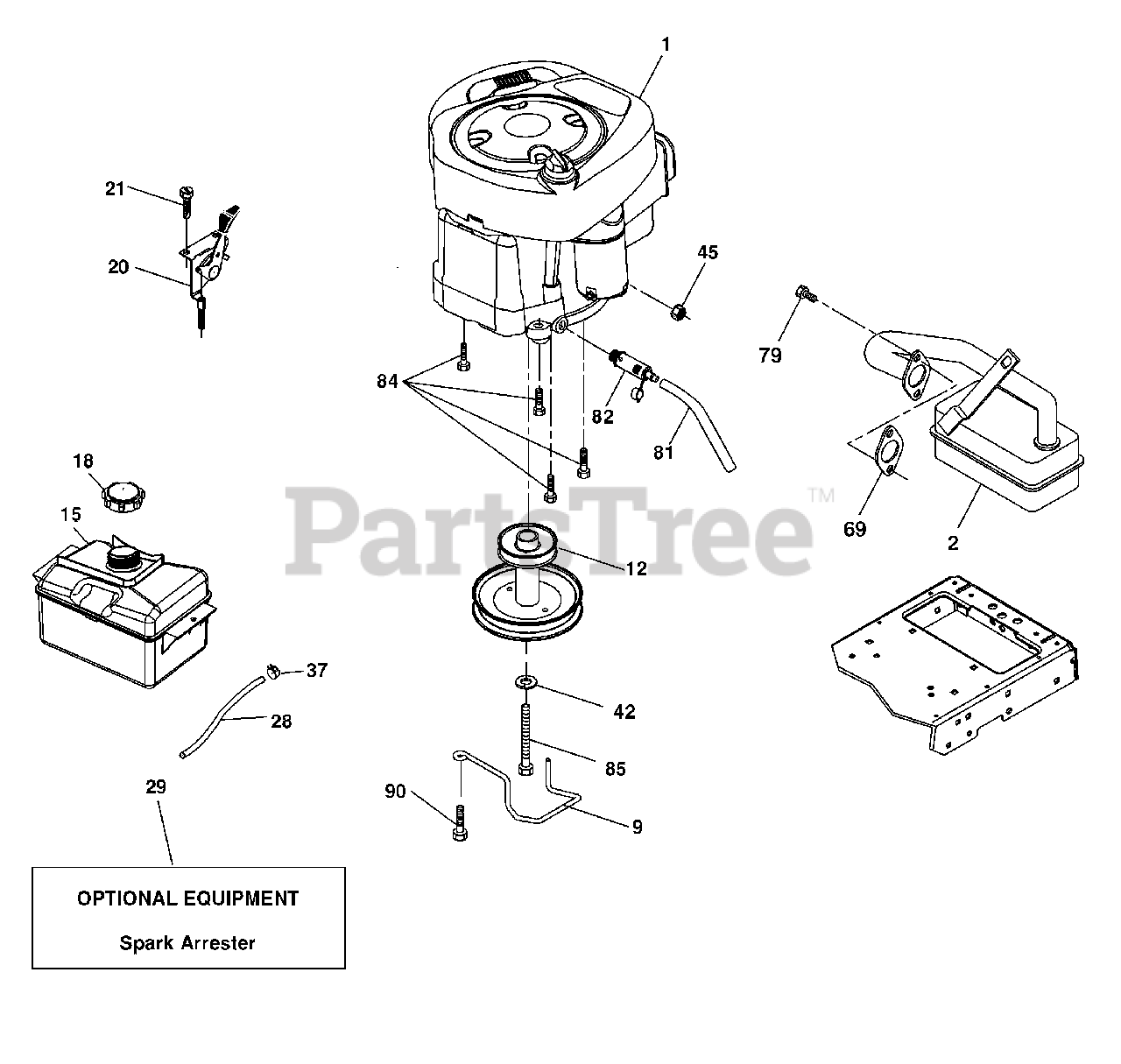

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 31P977

$

$

Not available

2

Husqvarna 532137352

Muffler

$45.99

$

In Stock, only 3 left!

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

12

Husqvarna 532405471

Pulley Engine
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

15

Husqvarna 532407489

Tank Fuel
(Superseded to 581290101)

$120.99

$

In Stock, only 1 left!

0

18

Husqvarna 532197725

Cap Asm
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532401508

Control Throttle/Choke

$34.99

$

In Stock, only 1 left!

0

21

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

28

Husqvarna 532401137

Fuel Line
(Superseded to 587044822)

$11.99

$

In Stock, Qty 9

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

69

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

Screw Socket Hd. 5/16 - 18 x .75
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt 5/16 - 20 x 4 x Gr. 5 - 1.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0
