917.279240 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Fuel System Parts Diagram

Yard Tractor

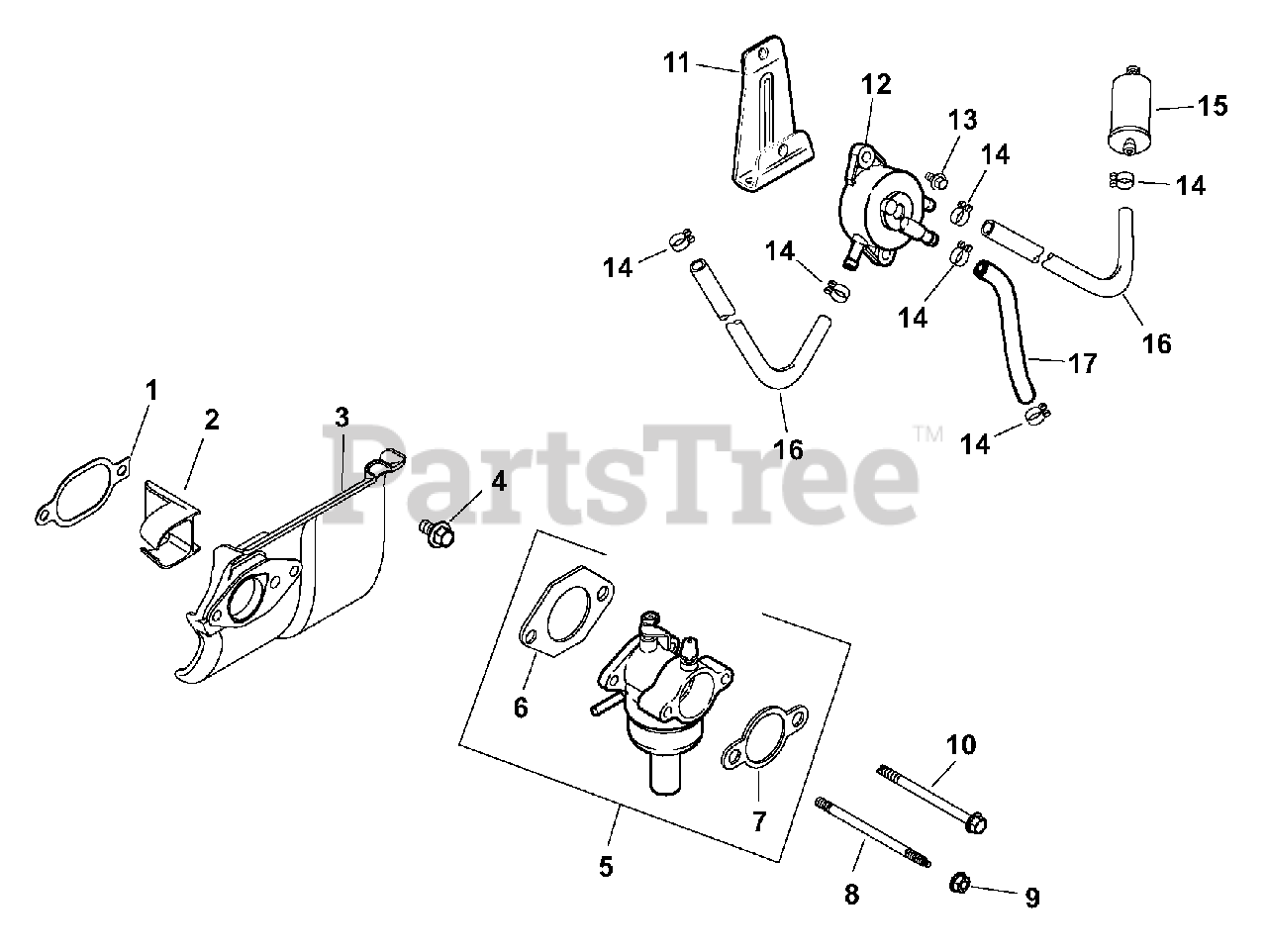

Fuel System Parts Diagram

  • Title

1

2004107s

Gasket, Heat Deflector

$

$

Not available

2

2033201s

Insert, Intake Port

$

$

Not available

3

2026503s

Deflector, Heat

$

$

Not available

4

M651020s

Screw, Flg M6x1.0x20

$

$

Not available

5

2085314s

Kit, Carburetor W/gaskets

Note: (Includes 6,7)

$

$

Not available

6

1204102s

Gasket, Air Cleaner Base

$

$

Not available

7

1204101s

Gasket, Carburetor

$

$

Not available

8

2007205s

Stud, M6x1.0x100

$

$

Not available

9

M641060s

Nut, Flg M6x1.0

$

$

Not available

10

M545010s

Screw, Flg Thd Frm M5x0.8x10

$

$

Not available

11

2012602s

Bracket, Fuel Pump Mounting

$

$

Not available

12

2439316s

Pump, Fuel

$

$

Not available

13

M645016s

Screw, Flg Thd Frm M6x1.0x16

$

$

Not available

14

2523714s

Clamp, Hose

$

$

Not available

15

2505022s

Filter, Fuel

$

$

Not available

16

2511134s

Line, Fuel (24"-cut To Length)

$

$

Not available

17

5235320s

Line, Fuel 10"

$

$

Not available

2545405s

Tie

Note: Not Illustrated

$

$

Not available

Husqvarna X22115

Washer, Int Tooth Lock 1/4"

Note: Not Illustrated

$

$

Currently unavailable

2543112s

Sleeve, Fuel Line

Note: Not Illustrated

$

$

Not available

12755110s

Kit, Choke Shaft

Note: Not Illustrated

$

$

Not available

1275702s

Kit, Repair Float

Note: Not Illustrated

$

$

Not available

1275703s

Kit, Repair Carburetor

Note: Not Illustrated

$

$

Not available

1275733s

Kit, Repair Solenoid

Note: Not Illustrated

$

$

Not available

1275737s

Kit, Repair Bowl Replacment

Note: Not Illustrated

$

$

Not available

2075506s

Kit, High Altitude (5000 Ft)

Note: Not Illustrated

$

$

Not available

2075507s

Kit, High Altitude (10,000 Ft)

Note: Not Illustrated

$

$

Not available
