917.279240 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Engine Controls Parts Diagram

Yard Tractor

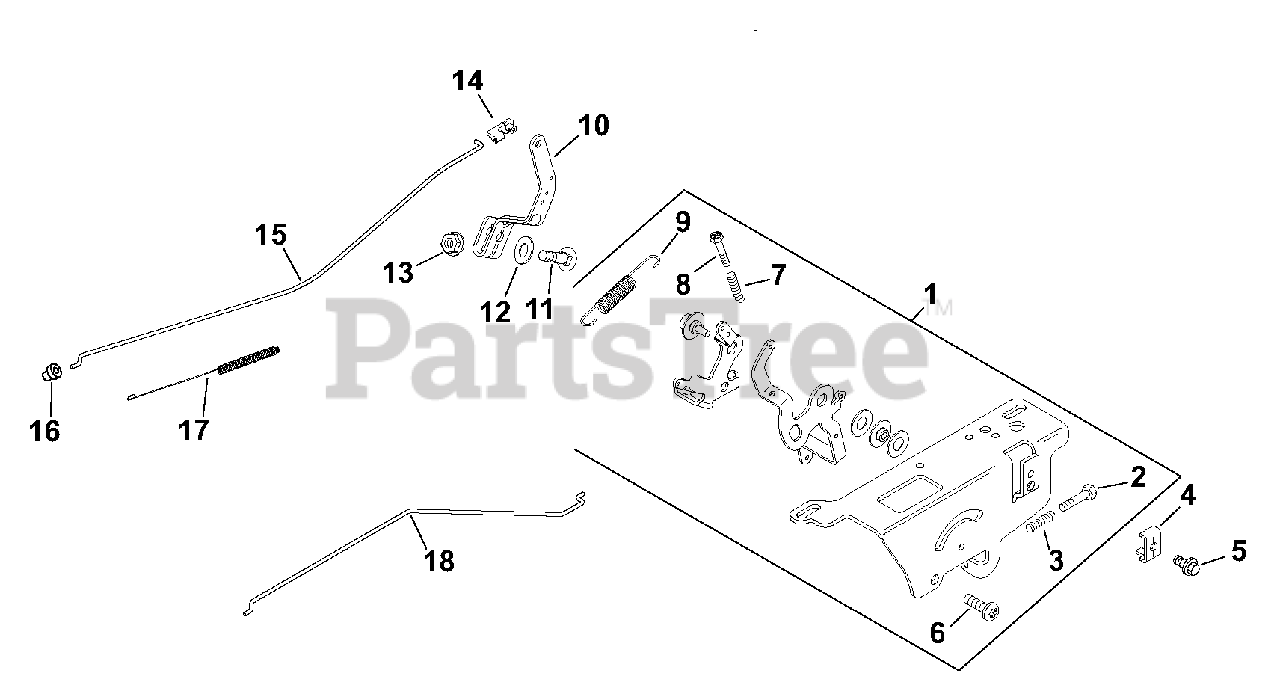

Engine Controls Parts Diagram

  • Title

1

2053605s

Kit, Speed Control Assembly

Note: (Includes 2,3,6-9)

$

$

Not available

2

2008610s

Screw, Phl Thd Frm M4x0.7x25

$

$

Not available

3

1208911s

Spring, Speed Control (Short)

$

$

Not available

4

1223701s

Clamp, Cable

$

$

Not available

5

2408643s

Screw, Lbd Thd Frm M5x0.8x16

$

$

Not available

6

M664020s

Screw, Lbd Skt M6x1.0x20

$

$

Not available

7

1208911s

Spring, Speed Control (Short)

$

$

Not available

8

2008610s

Screw, Phl Thd Frm M4x0.7x25

$

$

Not available

9

2008911s

Spring, Governor

$

$

Not available

10

2009002s

Lever, Governor

$

$

Not available

11

5221104s

Bolt, Rd Hd Sq Nck 1/4-20x1"

$

$

Not available

12

Husqvarna X22115

Washer, Int Tooth Lock 1/4"

$

$

Currently unavailable

13

1210007s

Nut, Hex Flg 1/4-20"

$

$

Not available

14

2515811s

Bushing, Throttle Linkage

$

$

Not available

15

2007904s

Linkage, Throttle

$

$

Not available

16

2515808s

Bushing, Linkage Retaining

$

$

Not available

17

2008910s

Spring, Linkage

$

$

Not available

18

2007905s

Linkage, Choke

$

$

Not available
