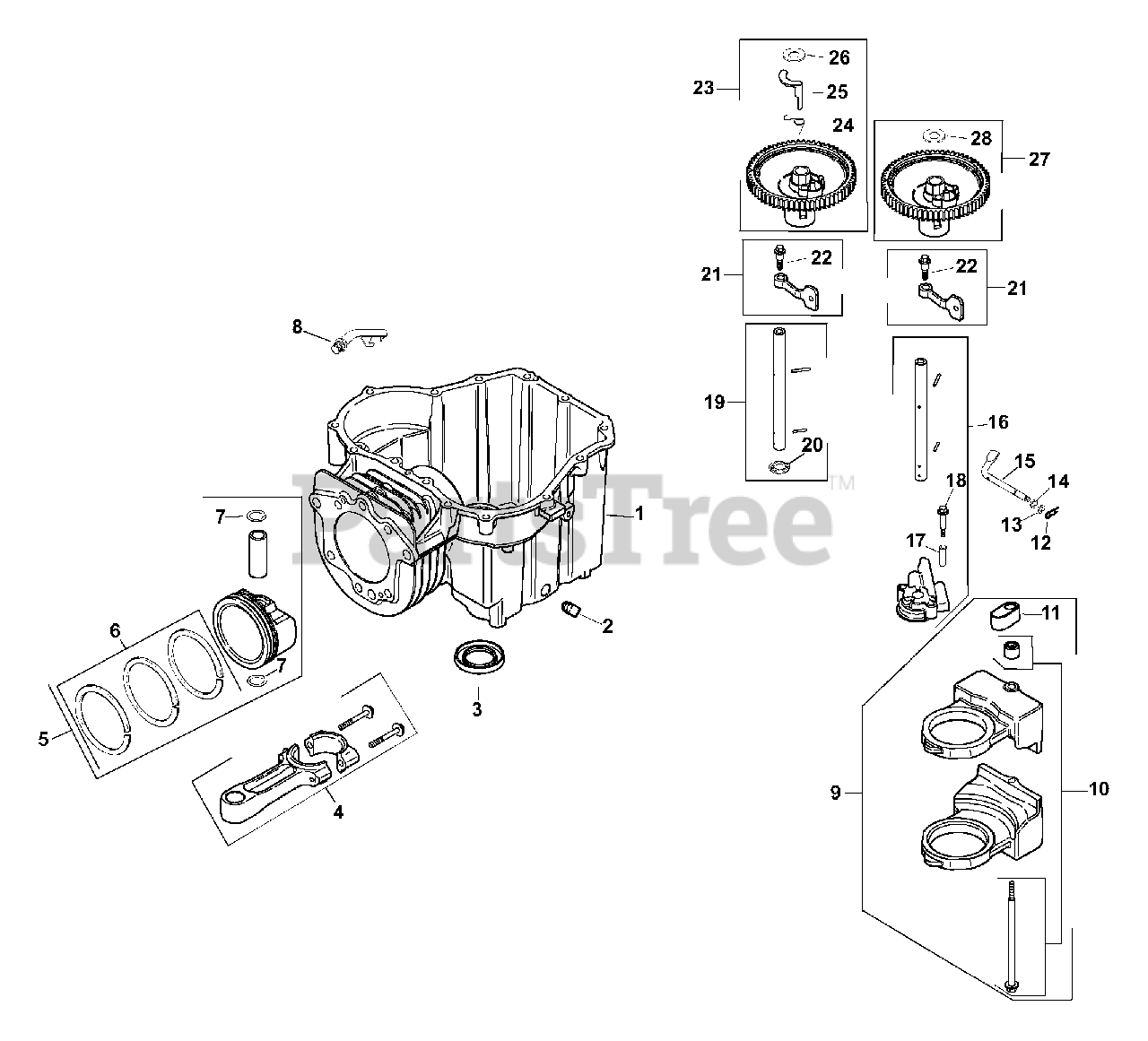

917.279240 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Crankcase Parts Diagram

Yard Tractor

Crankcase Parts Diagram

  • Title

1

Crankcase

Note: (Use: Short Block)

$

$

Not available

2

2513957s

Plug, Sq Hd Pipe 3/8"

$

$

Not available

3

2003201s

Seal, Oil

$

$

Not available

4

2006704s

Rod, Connecting

$

$

Not available

5

2087401s

Kit, Piston W/ring Set (94mm)

Note: (Includes 6,7)

$

$

Not available

6

2010801s

Ring Set (94 Mm)

$

$

Not available

7

2001804s

Retainer, Piston Pin

$

$

Not available

8

2012302s

Tube, Drainback

$

$

Not available

9

2075504s

Kit, Balance Weight

Note: (Includes 10,11)

$

$

Not available

10

2038016s

Kit,locating Pin

$

$

Not available

11

2042302s

Shoe, Guide

$

$

Not available

12

1215405s

Clip, Hitch Pin

$

$

Not available

13

M631015s

Washer, Flat 6 mm

$

$

Not available

14

X25102s

Washer, Flat 1/4"

$

$

Not available

15

2014402s

Shaft, Governor Cross

$

$

Not available

16

2039302s

Kit, Oil Pump Assembly

Note: (Includes 17,18)

$

$

Not available

17

2011202s

Spacer, Oil Pump Screw

$

$

Not available

18

2008613s

Screw, Oil Pump

$

$

Not available

19

2014406s

Kit, Camshaft Center-Exhaust Assembly

Note: (Includes 20)

$

$

Not available

20

2046801s

Washer, Thrust

$

$

Not available

21

2009001s

Kit, Cam Lever Assembly

Note: (Includes 23)

$

$

Not available

22

2008606s

Screw, Shd Thd FRM M6x1x26

$

$

Not available

23

2001004s

Kit, Camshaft Assembly

Note: (Includes 24-26)

$

$

Not available

24

2008906s

Spring, ACR

$

$

Not available

25

2004416s

Weight, ACR

$

$

Not available

26

2046803s

Washer, Thrust -ACR

$

$

Not available

27

2001004s

Kit, Camshaft Assembly

Note: (Includes 28)

$

$

Not available

28

2046803s

Washer, Thrust -ACR

$

$

Not available
