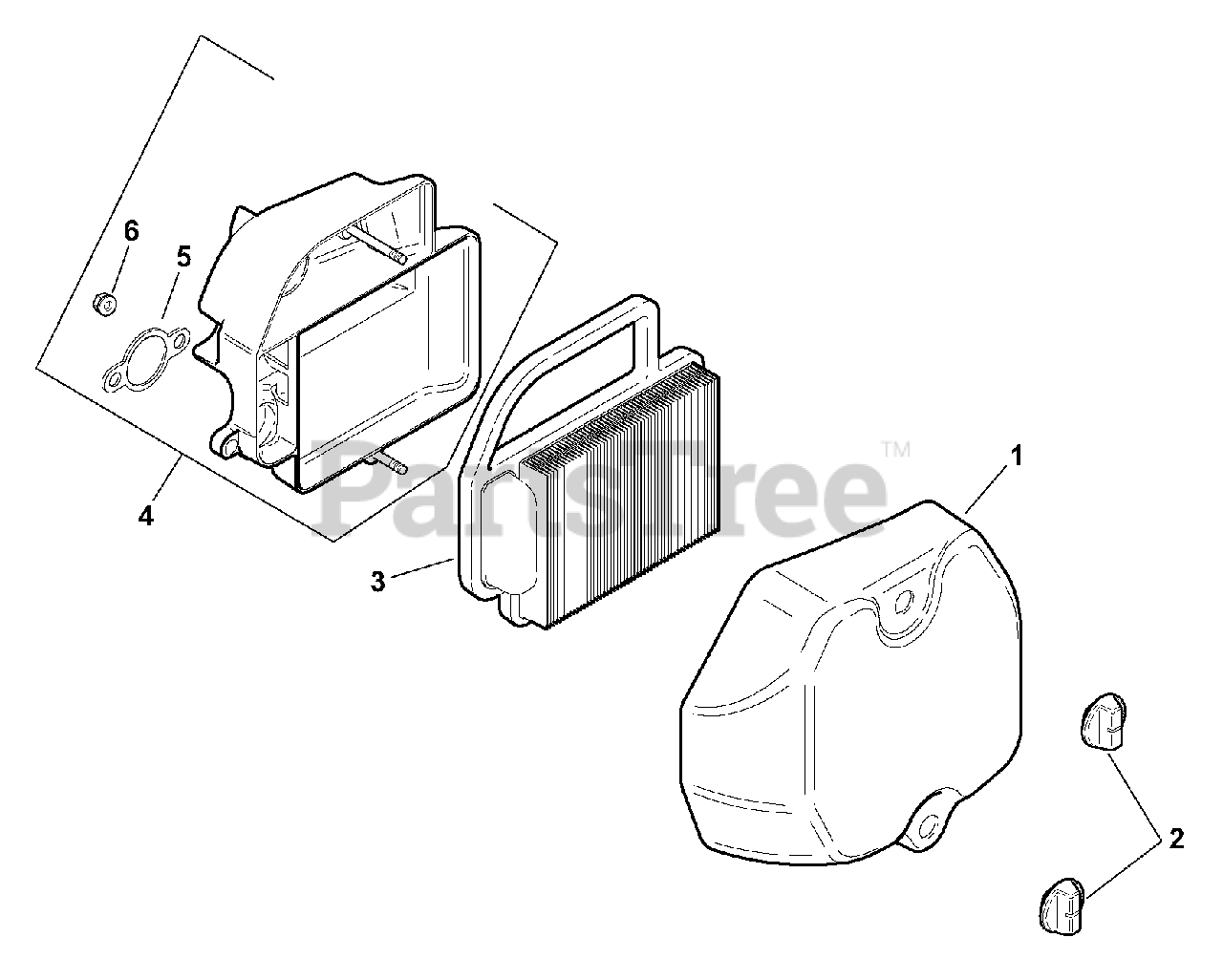

917.279240 (960430005) - Craftsman Yard Tractor (2006-05) (Sears) Air Intake / Filtration Parts Diagram

Yard Tractor

Air Intake / Filtration Parts Diagram

  • Title
1

2009604s

Kit,Air Cleaner Cover

Note: (Includes 2)

$

$

Not available

2

2534104s

Knob, Cover

$

$

Not available

3

2008302s

Element, Air Cleaner

$

$

Not available

4

2009401s

Kit, Air Cleaner Base

Note: (Includes 5,6)

$

$

Not available

5

1204102s

Gasket, Air Cleaner Base

$

$

Not available

6

M641060s

Nut, Flg M6x1.0

$

$

Not available
