917.279220 (YTH 2454 T) - Craftsman Yard Tractor (2006-05) (Sears) Hydro Transaxle Parts Diagram

Yard Tractor

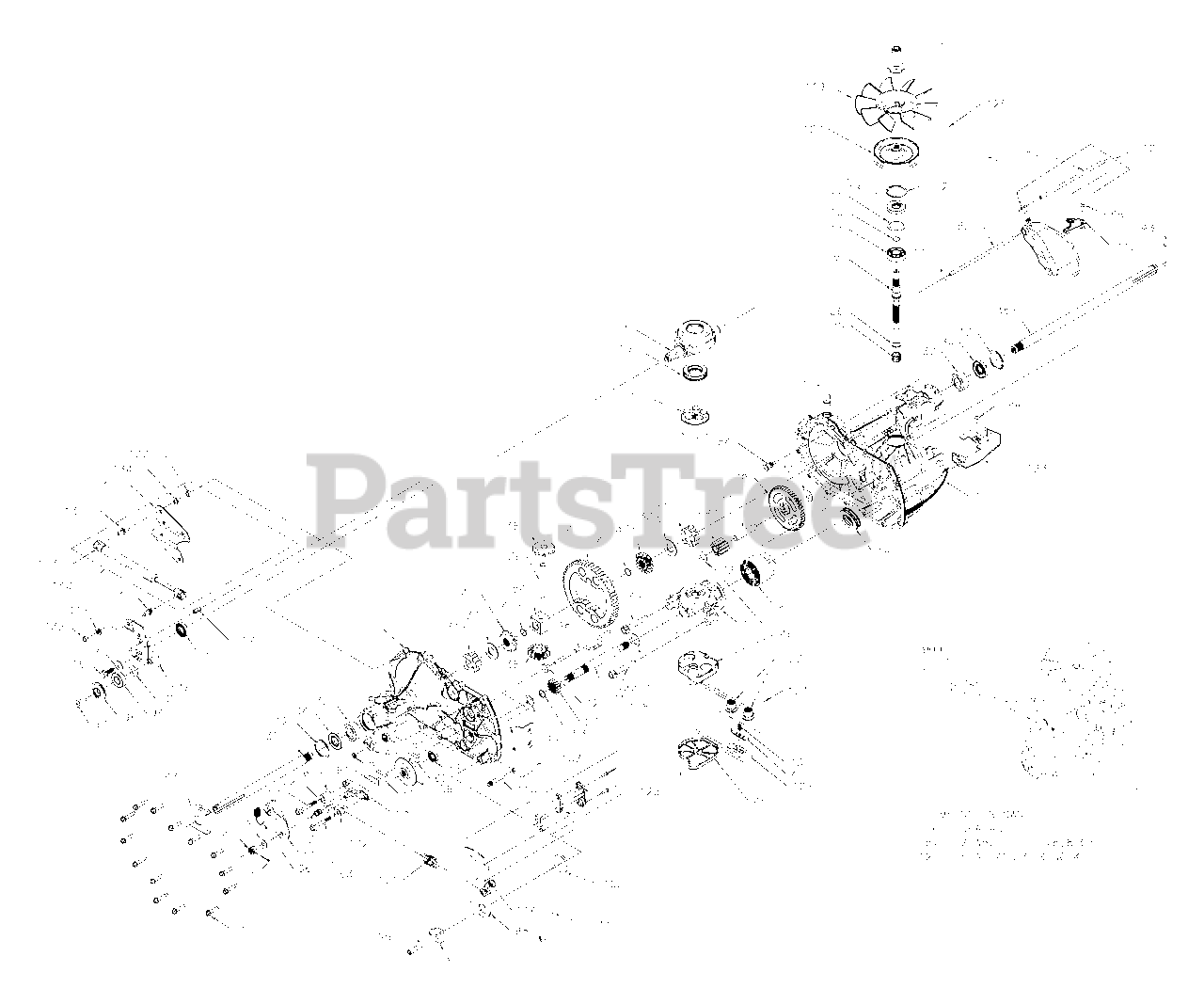

Hydro Transaxle Parts Diagram

  • Title

1

Husqvarna 170351

Kit, main housing Main housing, machined
(Superseded to 583038301)

$971.99

$

Usually ships in 3-10 days

0

1

Bushing .865 X.985 X.790

$

$

Not available

2

Husqvarna 170352

Kit, side housing
(Superseded to 583038401)

$376.99

$

Usually ships in 3-10 days

0

2

Side housing, machined

$

$

Not available

2

Bushing .865 X.985 X.790

$

$

Not available

2

Bushing .624 X.719 X.562

$

$

Not available

3

Husqvarna 170353

Kit, center section Center section, machined
(Superseded to 583038501)

$278.99

$

Usually ships in 3-10 days

0

3

Bushing .707 X .788 X .591

$

$

Not available

4

Husqvarna 170354

Swashplate, trunnion machined
(Superseded to 583038601)

$70.99

$

Usually ships in 3-10 days

0

5

Husqvarna 169898

Kit, cylinder block (1000)
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

5

Block - cylinder

$

$

Not available

5

Piston,

$

$

Not available

5

Spring, compression

$

$

Not available

5

Washer thrust

$

$

Not available

6

Husqvarna 178322

Sealant tube
(Superseded to 583087501)

$148.99

$

Usually ships in 3-10 days

0

7

Husqvarna 170356

Hex flange screw 1/4-20 x 1.25
(Superseded to 583038801)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 170358

Shaft, input
(Superseded to 583039001)

$132.99

$

Usually ships in 3-10 days

0

10

Husqvarna 170359

Retaining ring
(Superseded to 583039101)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 170360

Spacer
(Superseded to 583039201)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 169870

Retaining ring
(Superseded to 583034101)

$43.99

$

Usually ships in 3-10 days

0

13

Husqvarna 170361

Seal, lip .67 X 1.58 X .276
(Superseded to 583039301)

$45.99

$

Usually ships in 3-10 days

0

14

Husqvarna 173158

Bearing, ball 6203 (BDR)
(Superseded to 583057201)

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 170362

Hex flange head screw 1/4-20 x 1.25
(Superseded to 583039401)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 170363

Seal, lip 18 x 32 x 7
(Superseded to 583039501)

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 178781

Arm, control
(Superseded to 583090101)

$60.99

$

Usually ships in 3-10 days

0

19

Husqvarna 173159

Bearing, thrust (10cc)

$

$

Not available

23

Husqvarna 170420

Check plug assembly, .027 Washer
(Superseded to 583042201)

$68.99

$

Usually ships in 3-10 days

0

24

Husqvarna 170366

Shaft motor
(Superseded to 583039801)

$341.99

$

Usually ships in 3-10 days

0

27

Husqvarna 170367

Gear, pinion, 13T
(Superseded to 583039901)

$39.99

$

Usually ships in 3-10 days

0

28

Husqvarna 170368

Gear 1 OT / 48T
(Superseded to 583787701)

$113.99

$

Usually ships in 3-10 days

0

29

Husqvarna 170369

Gear, 1 OT jackshaft
(Superseded to 583040101)

$47.99

$

Usually ships in 3-10 days

0

30

Husqvarna 170370

60T bullgear
(Superseded to 583787801)

$236.99

$

Usually ships in 3-10 days

0

31

Husqvarna 170371

Sleeve bearing .75 X 1.75 X.625
(Superseded to 583040301)

$30.99

$

Usually ships in 3-10 days

0

32

Husqvarna 170389

Sleeve bearing (outboard) .75 X 1.575 X.625
(Superseded to 583040501)

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 142991

Washer
(Superseded to 532142991)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 170390

Lip seal, axle shaft
(Superseded to 583040601)

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 170391

Shaft, axle (keyed, R.H.)

$

$

Not available

36

Husqvarna 170392

Shaft, axle (keyed, L.H.)
(Superseded to 583040801)

$182.99

$

Usually ships in 3-10 days

0

37

Husqvarna 401260

Miter gear (splined)

$40.99

$

Usually ships in 3-10 days

0

38

Husqvarna 401261

Miter gear

$40.99

$

Usually ships in 3-10 days

0

39

Husqvarna 150809

Differential shaft (310-0750)

$

$

Currently unavailable

40

Husqvarna 170393

Retaining ring
(Superseded to 583040901)

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 170394

Pin, jackshaft
(Superseded to 583041001)

$51.99

$

Usually ships in 3-10 days

0

42

Husqvarna 170395

Magnet, ring

$

$

Not available

43

Husqvarna 170396

Spring, bypass
(Superseded to 583041101)

$6.99

$

Usually ships in 3-10 days

0

44

Husqvarna 150797

Bolt 3/8-24 x 2-1/2
(Superseded to 582976101)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 170397

Filter

$

$

Not available

46

Husqvarna 170398

Base, filter

$

$

Not available

47

Husqvarna 170399

Actuator, bypass

$

$

Not available

48

Husqvarna 170400

Rod, bypass actuator
(Superseded to 583041201)

$21.99

$

Usually ships in 3-10 days

0

49

Husqvarna 196599

Arm, bypass
(Superseded to 583234201)

$30.99

$

Usually ships in 3-10 days

0

50

Husqvarna 170402

Retaining ring.25 External
(Superseded to 583041401)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 170403

Seal, lip .741 X .25 X .25
(Superseded to 583041501)

$

$

Not available

52

Husqvarna 170404

Washer, fl at 0.050"
(Superseded to 532170404)

Note: (210-1000)

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 170405

Retaining ring
(Superseded to 583041601)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 170406

Bearing, center block

$

$

Not available

55

Husqvarna 142977

Spring, helical compression
(Superseded to 532142977)

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 142978

Washer, block thrust
(Superseded to 532142978)

$7.49

$

Usually ships in 3-10 days

0

57

20Vv50

Oil

$

$

Not available

58

Husqvarna 142929

Kit, brake yoke
(Superseded to 584289701)

$40.99

$

Usually ships in 3-10 days

0

59

Husqvarna 170408

Rotor, brake
(Superseded to 583041801)

$47.99

$

Usually ships in 3-10 days

0

60

Husqvarna 142883

Brake puck
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

61

Husqvarna 142882

Brake puck plate
(Superseded to 584289601)

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 170409

Pin, brake actuating

$

$

Currently unavailable

63

Husqvarna 170410

Hfhcs 1/4-20 x 2 w/patch, special flange
(Superseded to 584281401)

$

$

Not available

65

Husqvarna 170411

Spacer, brake torsion spring

$

$

Currently unavailable

66

Husqvarna 189386

Spring, brake arm bias
(Superseded to 583183301)

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 404026

Arm-brake, RH

$

$

Currently unavailable

69

Husqvarna 170415

Nut, castle 5/16-24

$

$

Not available

70

Husqvarna 170416

Pin, cotter 3/32x3/4

$

$

Currently unavailable

71

Husqvarna 170417

Brake spring

$

$

Currently unavailable

72

Husqvarna 170418

Washer (310-0750)

$

$

Currently unavailable

73

Husqvarna 142884

Washer, flat
(Superseded to 532142884)

$

$

Not available

74

Husqvarna 170419

Seal, oil

$

$

Not available

84

Husqvarna 170425

Fitting, 5/16 x sae 5/32 tube
(Superseded to 583042601)

$37.99

$

Usually ships in 3-10 days

0

85

Husqvarna 170426

Hose, expansion tank
(Superseded to 583042701)

$13.99

$

Usually ships in 3-10 days

0

87

Husqvarna 401264

Cap, barbed vent
(Superseded to 583269501)

$43.99

$

Usually ships in 3-10 days

0

88

Husqvarna 178334

Bolt, self tapping (BDR)

$

$

Not available

93

Husqvarna 170431

Spring clip, housing
(Superseded to 583042901)

$27.99

$

Usually ships in 3-10 days

0

94

Husqvarna 178783

Bearing, ball

$

$

Not available

95

Husqvarna 178784

Screw, 5/16-24x 1 1/2 socket head cap

Note: (310-3000)

$

$

Not available

96

Husqvarna 178786

Spacer, locating
(Superseded to 583090301)

$9.99

$

Usually ships in 3-10 days

0

97

Husqvarna 178787

Screw (310-3000)

$

$

Not available

98

Husqvarna 404027

Arm, return

$

$

Currently unavailable

99

Husqvarna 178792

Puck, adjusting
(Superseded to 583090401)

$17.99

$

Usually ships in 3-10 days

0

100

Husqvarna 178793

Washer,.325 Odxl.6 Idx.15 TK
(Superseded to 583090501)

$17.99

$

Usually ships in 3-10 days

0

101

Husqvarna 178794

Spring, extension
(Superseded to 583090601)

$10.99

$

Usually ships in 3-10 days

0

102

Husqvarna 178795

Spacer, .56 Odx.26 ID x.87
(Superseded to 582209601)

$6.99

$

Usually ships in 3-10 days

0

103

Husqvarna 404028

Bracket, torque
(Superseded to 583289301)

$43.99

$

Usually ships in 3-10 days

0

107

Husqvarna 170432

Deflector
(Superseded to 583043001)

$7.99

$

Usually ships in 3-10 days

0

108

Husqvarna 170433

Washer, motor shaft.71 ID x 1.150D x.03 Thick
(Superseded to 583043101)

$2.99

$

Usually ships in 3-10 days

0

109

Husqvarna 170434

Plug, straight thread 9/16-18

$

$

Currently unavailable

110

Husqvarna 161159

Screw, torx head 5/16-18
(Superseded to 532161159)

Note: (310-3000)

$7.99

$

Usually ships in 3-10 days

0

111

Husqvarna 170435

O-ring .7 X .301 ID
(Superseded to 583043201)

$6.99

$

Usually ships in 3-10 days

0

113

Husqvarna 170437

Bracket, support expansion tank
(Superseded to 583043301)

$11.99

$

Usually ships in 3-10 days

0

114

Husqvarna 178797

Spring guide

$

$

Not available

117

Husqvarna 178799

Pin, spring 5/16 x.75

$2.49

$

Usually ships in 3-10 days

0

119

Husqvarna 191031

Kit, fan - washer - nut, Fan, 7 in
(Superseded to 583197801)

$60.99

$

Usually ships in 3-10 days

0

119

Hex lock nut 1/2-20 (nylon insert)

$

$

Not available

119

Washer, or slotted, .53 X 1.63 X.06

$

$

Not available

120

Husqvarna 170440

Pulley
(Superseded to 583043501)

$

$

Not available

123

Husqvarna 401265

Belt keeper
(Superseded to 583269601)

$125.99

$

Usually ships in 3-10 days

0

124

Husqvarna 191033

Center section filter bypass assembly

$242.99

$

Usually ships in 3-10 days

0

124

Center section Base filter w/ poppet check plug assembly

$

$

Not available

124

.027 Washer Spring,

$

$

Not available

124

bypass actuator,

$

$

Not available

124

bypass deflector bottom, filter

$

$

Not available

124

bushing, .707 X.788 X.591

$

$

Not available

125

Husqvarna 170445

Kit, filter Bottom, filter spring,

$

$

Not available

125

bypass actuator,

$

$

Not available

125

bypass deflector

$

$

Not available

125

Base, filter w/ poppet

$

$

Not available

126

Husqvarna 170446

Kit, fan/pulley, Hex jam 1/20-20 (nylon insert) washer
(Superseded to 583044001)

$136.99

$

Usually ships in 3-10 days

0

126

OD slotted, .53 X 1.63 X.06

$

$

Not available

126

Fan, 7 in,

$

$

Not available

126

Pulley

$

$

Not available

127

Husqvarna 170447

Kit, seal
(Superseded to 583044101)

$109.99

$

Usually ships in 3-10 days

0

127

Lip seal .67 X 1.58 X.276

$

$

Not available

127

Lip seal 18 x 32 x 7

$

$

Not available

127

Lip seal .706 X 1.584 X.25

$

$

Not available

127

Lip seal .741 X.250 X.250

$

$

Not available

127

TC oil seal .625 X1.0X .25

$

$

Not available

127

O-ring .07 X .301 ID

$

$

Not available

128

Husqvarna 401266

Kit, expansion tank, Tank, expansion assembly
(Superseded to 583269701)

$94.99

$

Usually ships in 3-10 days

0

128

cap, barbed vent., Bolt,

$

$

Not available

128

self tapping 10-32 x 1/2

$

$

Not available

128

bracket, support expansion tank hose,

$

$

Not available

128

expansion tank

$

$

Not available

130

Husqvarna 178802

Stud, threaded ball
(Superseded to 583090801)

$13.99

$

Usually ships in 3-10 days

0

131

Husqvarna 178803

Bracket, cruise/damper

$

$

Not available

132

Husqvarna 178804

Nut 5/16-18
(Superseded to 583090901)

$3.99

$

Usually ships in 3-10 days

0

133

Husqvarna 184227

Damper
(Superseded to 583132101)

$250.99

$

Usually ships in 3-10 days

0

134

Husqvarna 178808

Washer, 5/16 lock
(Superseded to 583091001)

$3.99

$

Usually ships in 3-10 days

0

140

Husqvarna 191030

Kit, damper, Stud, threaded ball bracket,
(Superseded to 583197701)

$188.99

$

Usually ships in 3-10 days

0

140

cruise/damper hex nut 5/16-18 NC damper,

$

$

Not available

140

Washer, helical spring lock 5/16, regular

$

$

Not available

141

Husqvarna 404030

Kit, RCS, Arm, return spring guide switch,
(Superseded to 583289401)

$148.99

$

Usually ships in 3-10 days

0

141

RCS activator,

$

$

Not available

141

RCS switch spring,

$

$

Not available

141

RCS switch retainer,

$

$

Not available

141

RCS switch rivet 5/32

$

$

Not available

900

Husqvarna 400505

Transaxle
(Superseded to 583263701)

$897.99

$

Usually ships in 3-10 days

0
