917.279220 (YTH 2454 T) - Craftsman Yard Tractor (2006-05) (Sears) Briggs Engine (Part 2) Parts Diagram

Yard Tractor

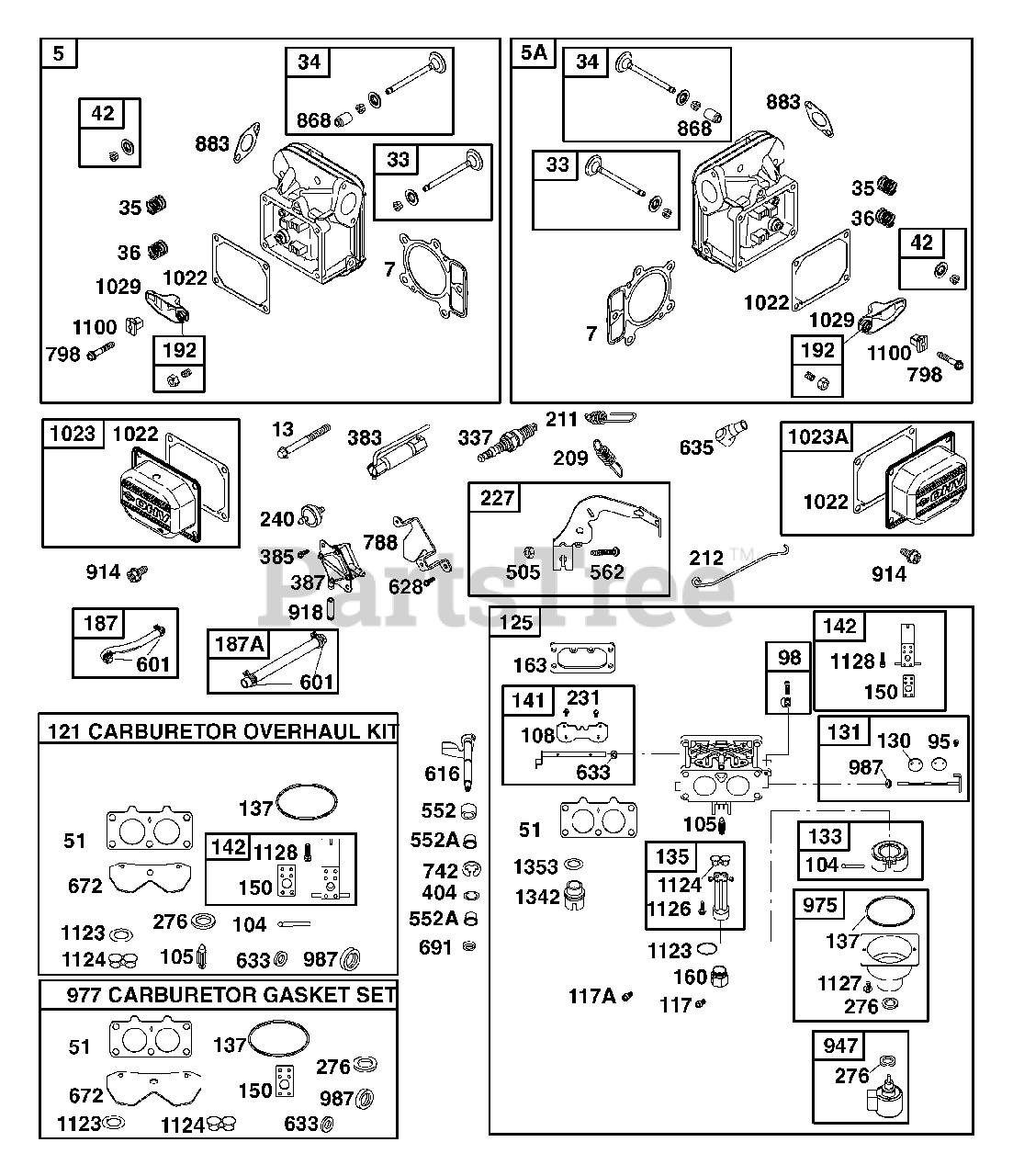

Briggs Engine (Part 2) Parts Diagram

  • Title

5

Husqvarna 693998

Head-Cylinder

Note: (Cylinder 1)

$

$

Currently unavailable

5A

Husqvarna 693999

Head-Cylinder

Note: (Cylinder 2)

$

$

Currently unavailable

7

Husqvarna 693997

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Overhaul Kit, Key. No. 1095

$24.99

$

In Stock, Qty 20+

0

13

Husqvarna 791130

Screw

Note: (Cylinder Head)

$

$

Currently unavailable

33

Husqvarna 499596

Valve-Exhaust

$

$

Not available

34

Husqvarna 697464

Valve-Intake

$

$

Currently unavailable

35

Husqvarna 690963

Spring-Valve

Note: (Intake)

$

$

Not available

36

Husqvarna 690963

Spring-Valve

Note: (Exhaust)

$

$

Not available

42

Husqvarna 499586

Keeper-Valve

$

$

Not available

51

Husqvarna 690950

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$2.99

$

In Stock, Qty 20+

0

95

Husqvarna 690718

Screw

Note: (Throttle Valve)

$

$

Not available

98

Husqvarna 699721

Kit-Idle Speed

$

$

Currently unavailable

104

Husqvarna 694918

Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit, Key. No. 121

$

$

Currently unavailable

105

Husqvarna 698537

Valve-Float Needle

Note: Included in Carburetor Overhaul Kit, Key. No. 121

$

$

Currently unavailable

108

Husqvarna 699723

Valve-Choke

$

$

Currently unavailable

117

Husqvarna 699494

Jet-Main

Note: (Standard)

$

$

Currently unavailable

117A

Husqvarna 699495

Jet-Main

Note: (Standard)

$

$

Currently unavailable

121

Husqvarna 699734

Kit-Carburetor Overhaul

$

$

Currently unavailable

125

Husqvarna 699709

Carburetor

$

$

Currently unavailable

130

Husqvarna 690993

Valve-Throttle

$

$

Not available

131

Husqvarna 499805

Kit-Throttle Shaft

$

$

Not available

133

Husqvarna 699724

Float-Carburetor

$

$

Currently unavailable

135

Husqvarna 699729

Tube-Fuel Transfer

$

$

Currently unavailable

137

Husqvarna 690994

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$6.99

$

In Stock, Qty 20+

0

150

Husqvarna 690995

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

160

Husqvarna 699727

Retainer-Solenoid

$

$

Currently unavailable

163

Husqvarna 691001

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Overhaul Kit, Key. No. 1095

$

$

Not available

187

Husqvarna 691049

Line-Fuel

$

$

Not available

187A

Husqvarna 691050

Line-Fuel

Note: (Cut to Required Length)

$

$

Not available

192

Husqvarna 690083

Adjuster-Rocker Arm

$

$

Not available

209

Husqvarna 697674

Spring-Governor

$

$

Currently unavailable

211

Husqvarna 691019

Spring-Governed Idle

$

$

Not available

212

Husqvarna 695238

Link-Governor

$

$

Currently unavailable

227

Husqvarna 691048

Lever-Governor Control

$

$

Not available

231

Husqvarna 690718

Screw

Note: (Choke Valve)

$

$

Not available

240

Husqvarna 691035

Filter-Fuel

$

$

Currently unavailable

276

Husqvarna 690997

Washer-Sealing

Note: Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

337

Husqvarna 691043

Spark Plug

$6.49

$

In Stock, Qty 20+

0

383

Husqvarna 690966

Wrench-Spark Plug

$

$

Not available

385

Husqvarna 690960

Screw

Note: (Fuel Pump)

$

$

Not available

387

Husqvarna 808656

Pump-Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

404

Husqvarna 690442

Washer

Note: (Governor Crank)

$

$

Not available

505

Husqvarna 691029

Nut

Note: (Governor Control Lever)

$

$

Not available

552

Husqvarna 690552

Bushing-Governor Crank

$

$

Not available

552A

Husqvarna 690553

Bushing-Governor Crank

$

$

Not available

562

Husqvarna 690311

Bolt

Note: (Governor Control Lever)

$

$

Not available

601

Husqvarna 691038

Clamp-Hose

$

$

Not available

616

Husqvarna 691045

Crank-Governor

$

$

Not available

628

Husqvarna 690960

Screw

Note: (Fuel Pump Bracket)

$

$

Not available

633

Husqvarna 690998

Seal-Choke/Throttle Shaft

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

635

Husqvarna 66538

Boot-Sparkplug

$

$

Not available

672

Husqvarna 690234

Gasket-Carburetor Plate

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

691

Husqvarna 690657

Seal-Governor Shaft

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

742

Husqvarna 690328

Retainer-E Ring

$

$

Not available

788

Husqvarna 691039

Bracket-Fuel Pump

$

$

Not available

798

Husqvarna 697890

Screw

Note: (Rocker Arm)

$

$

Currently unavailable

868

Husqvarna 690968

Seal-Valve

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Overhaul Kit, Key. No. 1095

$

$

Not available

883

Husqvarna 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Overhaul Kit, Key. No. 1095

$

$

Not available

914

Husqvarna 691127

Screw

Note: (Rocker Arm Cover)

$

$

Currently unavailable

918

Husqvarna 694000

Hose-Vacuum

$

$

Currently unavailable

947

Husqvarna 699728

Solenoid-Fuel

$

$

Currently unavailable

975

Husqvarna 499810

Bowl-Float

$

$

Not available

977

Husqvarna 699735

Gasket Set-Carburetor

$

$

Currently unavailable

987

Husqvarna 691000

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

1022

Husqvarna 690971

Gasket-Rocker Cover

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Overhaul Kit, Key. No. 1095

$

$

Not available

1023

Husqvarna 499599

Cover-Rocker Arm

Note: (Cylinder 1)

$

$

Not available

1023A

Husqvarna 499600

Cover-Rocker Arm

Note: (Cylinder 2)

$

$

Not available

1029

Husqvarna 690972

Arm-Rocker

$

$

Not available

1100

Husqvarna 690973

Pivot-Rocker Arm

$

$

Not available

1123

Husqvarna 699725

Seal-O Ring

Note: (Solenoid Retainer)

$

$

Currently unavailable

1124

Husqvarna 690988

Seal-O Ring

Note: (Fuel Transfer Tube); Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$

$

Not available

1126

Husqvarna 690991

Screw

Note: (Fuel Transfer Tube)

$

$

Not available

1128

Husqvarna 690990

Screw

Note: (Carburetor Nozzle); Included in Carburetor Overhaul Kit, Key. No. 121

$

$

Not available

1342

Husqvarna 699731

Extension-Fuel Transfer Tube

$

$

Currently unavailable

1353

Husqvarna 699725

Seal-O Ring

Note: (Fuel Transfer Tube Extension)

$

$

Currently unavailable
