917.279181 (YTH 2242 T) - Craftsman Yard Tractor (2006-05) (Sears) Chassis Parts Diagram

Yard Tractor

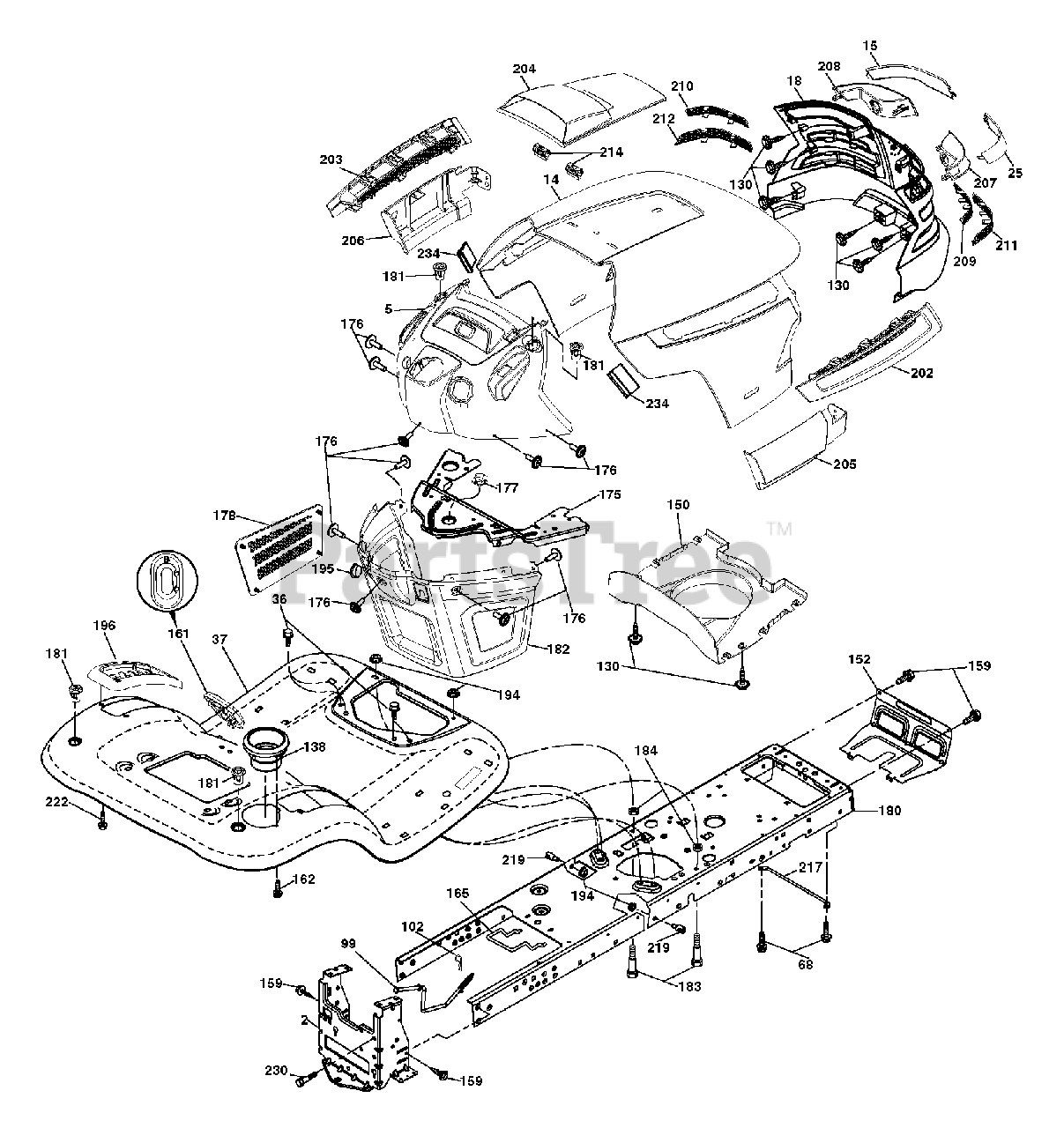

Chassis Parts Diagram

  • Title

2

Husqvarna 532194263

Drawbar

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532401823

Dash
(Superseded to 532408701)

$

$

Not available

14

Husqvarna 532401824

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532404821

Grille Asm.
(Superseded to 532408607)

$

$

Not available

25

Husqvarna 532198906

Lens RH

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532405789

Fender

$

$

Not available

68

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532401003

Rod Asm Bypass
(Superseded to 532415742)

$10.99

$

In Stock, only 2 left!

0

102

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

138

Husqvarna 532402954

Cupholder
(Superseded to 532439747)

$8.99

$

In Stock, only 1 left!

0

150

Husqvarna 532198513

Air Duct

$43.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532194329

Shield Browning

$20.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

161

Husqvarna 532404941

Window Fuel
(Superseded to 532440029)

$13.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532400315

Support Tank Rear

$18.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

Bushing Steering

$6.99

$

In Stock, Qty 11

0

178

Husqvarna 532199782

Cargo Net Asm.

$34.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532194260

Chassis
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532404796

Bushing Mtg. Fender Crgo
(Superseded to 532403025)

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$96.99

$

In Stock, only 2 left!

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532195780

Spacer Fender

$7.49

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

Plug Hole Dash Lower

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532402843

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Top Hood
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$7.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$20.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199130

Insert Hex Top RH

$5.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top Lh

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$3.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

Clip Retainer Tinner

$6.49

$

In Stock, only 4 left!

0

217

Husqvarna 532156524

Rod Pivot
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

219

Husqvarna 532195161

Stud Fastner

$

$

Not available

222

Husqvarna 532137729

Screw Thdrol 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

230

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0
