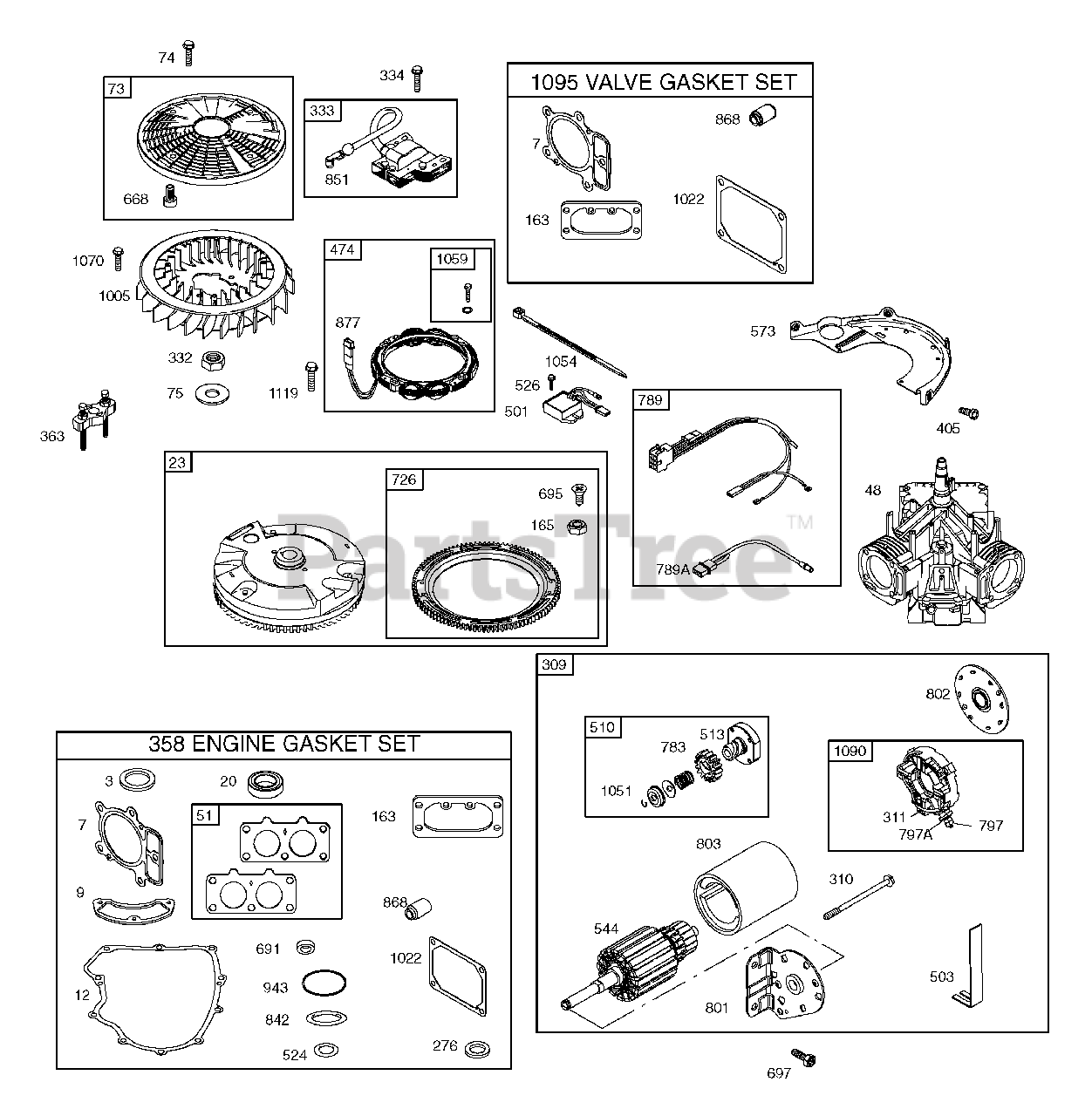

917.279180 (YTH 2242 T) - Craftsman Yard Tractor (2006-05) (Sears) Briggs Engine (Part 3) Parts Diagram

Yard Tractor

Briggs Engine (Part 3) Parts Diagram

  • Title

3

391086s

Seal-Oil

Note: (Magneto Side); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

7

Husqvarna 693997

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095

$24.99

$

In Stock, Qty 20+

0

9

Husqvarna 690937

Gasket-Breather

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

12

Husqvarna 697227

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Currently unavailable

20

Husqvarna 690947

Seal-Oil

Note: (PTO Side); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

23

Husqvarna 691053

Flywheel

$

$

Not available

48

Husqvarna 698172

Short Block

$

$

Currently unavailable

51

Husqvarna 791677

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121,Included in Carburetor Gasket Set, Key. No. 977

$

$

Currently unavailable

73

Husqvarna 499439

Screen-Rotating

$

$

Currently unavailable

74

Husqvarna 698425

Screw

Note: (Rotating Screen)

$

$

Currently unavailable

75

Husqvarna 691056

Washer

Note: (Flywheel)

$

$

Not available

163

Husqvarna 691001

Gasket-Air Cleaner

$

$

Not available

165

Husqvarna 693148

Nut

Note: (Ring Gear)

$

$

Not available

276

Husqvarna 690997

Washer-Sealing

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Included in Valve Gasket Set, Key. No. 1095

$

$

Not available

309

Husqvarna 497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Husqvarna 690323

Bolt-Starter Motor

$

$

Currently unavailable

311

Husqvarna 497608

Brush Set

$

$

Not available

332

Husqvarna 691059

Nut

Note: (Flywheel)

$

$

Currently unavailable

333

Husqvarna 691060

Armature-Magneto

$

$

Not available

334

Husqvarna 691061

Screw

Note: (Magneto Armature)

$

$

Not available

358

Husqvarna 694012

Set-Engine Gasket

$

$

Not available

363

Husqvarna 19203

Flywheel Puller

$

$

Not available

405

Husqvarna 697820

Screw

Note: (Back Plate)

$

$

Currently unavailable

474

Husqvarna 696458

Alternator

$

$

Currently unavailable

501

Husqvarna 691185

Regulator

$

$

Currently unavailable

503

Husqvarna 691532

Strap-Ground

$

$

Currently unavailable

510

Husqvarna 696541

Drive-Starter

$

$

Currently unavailable

513

Husqvarna 692024

Clutch-Drive

$

$

Currently unavailable

524

Husqvarna 691032

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

526

Husqvarna 691108

Screw

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

544

Husqvarna 692034

Armature-Starter

$

$

Currently unavailable

573

Husqvarna 790444

Plate-Back

$

$

Currently unavailable

668

Husqvarna 691215

Spacer

$

$

Not available

691

Husqvarna 790574

Seal-Governor Shaft

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Currently unavailable

695

Husqvarna 693149

Screw

Note: (Ring Gear)

$

$

Currently unavailable

697

Husqvarna 690372

Screw

Note: (Drive Cap)

$

$

Not available

726

Husqvarna 499612

Gear-Ring

$

$

Not available

783

Husqvarna 695708

Gear-Pinion

$

$

Currently unavailable

789

Husqvarna 691039

Harness-Wiring

$

$

Not available

789A

Husqvarna 790544

Harness-Wiring

$

$

Currently unavailable

797

Husqvarna 691029

Nut

Note: (Brush Retainer)

$

$

Not available

797A

Husqvarna 693167

Nut

Note: (Brush Retainer)

$

$

Not available

801

Husqvarna 691283

Cap-Drive

$

$

Not available

802

Husqvarna 691286

Cap-End

$

$

Not available

803

Husqvarna 693757

Housing-Starter

$

$

Currently unavailable

842

Husqvarna 691031

Seal-Dipstick/Tube

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

851

493880s

Terminal-Spark Plug

$

$

Not available

868

Husqvarna 690968

Seal-Valve

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095

$

$

Not available

877

Husqvarna 399916

Wire/Connector-Alternator

$

$

Not available

943

Husqvarna 690589

Seal-O Ring

Note: (Oil Pump Cover); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

1005

Husqvarna 790698

Fan-Flywheel

$

$

Currently unavailable

1022

Husqvarna 690971

Gasket-Rocker Cover

Note: Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095

$

$

Not available

1051

Husqvarna 691265

Ring-Retaining

$

$

Not available

1054

Husqvarna 280275

Tie-Cable

$

$

Not available

1059

Husqvarna 698516

Kit-Screw/Washer

$

$

Currently unavailable

1070

Husqvarna 690372

Screw

Note: (Flywheel Fan)

$

$

Not available

1090

Husqvarna 691293

Retainer-Brush

$

$

Not available

1095

Husqvarna 699735

Kit-Valve Overhaul

$

$

Currently unavailable

1119

Husqvarna 691183

Screw

Note: (Alternator)

$

$

Not available
