917.279180 (YTH 2242 T) - Craftsman Yard Tractor (2006-05) (Sears) Briggs Engine (Part 1) Parts Diagram

Yard Tractor

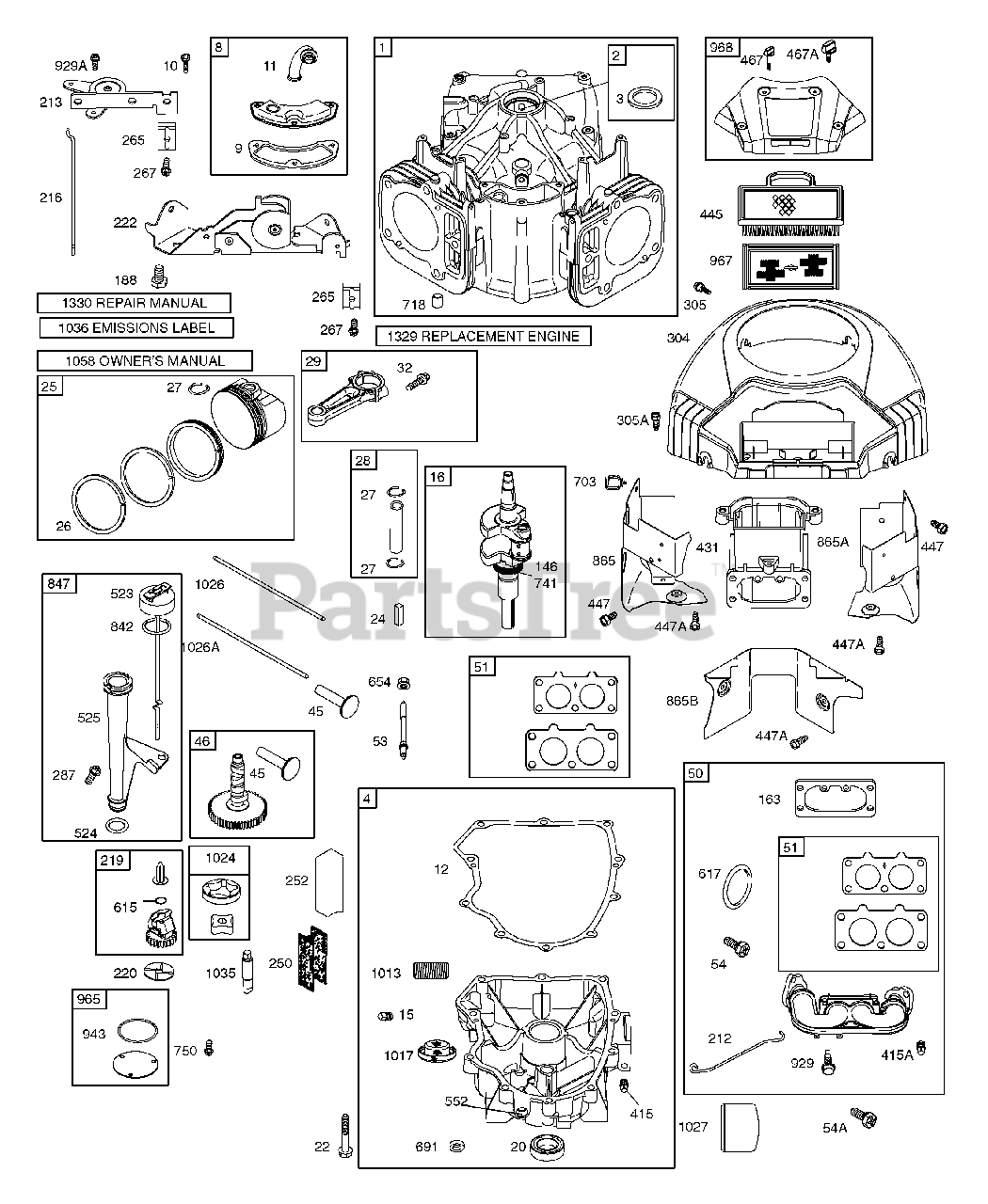

Briggs Engine (Part 1) Parts Diagram

  • Title

1

Husqvarna 699753

Cylinder Assembly

$

$

Currently unavailable

2

Husqvarna 499585

Kit-Bushing/Seal

Note: (Magneto Side)

$

$

Not available

3

391086s

Seal-Oil

Note: (Magneto Side); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

4

Husqvarna 699747

Sump-Engine

$

$

Currently unavailable

8

Husqvarna 792185

Breather Assembly

$

$

Currently unavailable

9

Husqvarna 690937

Gasket-Breather

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

10

Husqvarna 691108

Screw

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 792184

Tube-Breather

$

$

Currently unavailable

12

Husqvarna 697227

Gasket-Crankcase

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Currently unavailable

15

Husqvarna 690946

Plug-Oil Drain

$

$

Not available

16

Husqvarna 699700

Crankshaft

$

$

Currently unavailable

20

Husqvarna 690947

Seal-Oil

Note: (PTO Side); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

22

Husqvarna 694966

Screw

Note: (Engine Sump)

$

$

Currently unavailable

24

222698s

Key-Flywheel

$

$

Not available

25

Husqvarna 792117

Piston Assembly

Note: (Standard)

$

$

Currently unavailable

25

Husqvarna 792144

Piston Assembly

Note: (.020" Over-size)

$

$

Not available

26

Husqvarna 792026

Ring Set-Piston

Note: (Standard)

$

$

Currently unavailable

26

Husqvarna 792073

Ring Set-Piston

Note: (.020" Oversize)

$

$

Not available

27

Husqvarna 690975

Lock-Piston Pin

$

$

Not available

28

Husqvarna 690229

Pin-Piston

$

$

Currently unavailable

29

Husqvarna 699699

Rod-Connecting

$

$

Currently unavailable

32

Husqvarna 690976

Screw

Note: (Connecting Rod)

$

$

Not available

45

Husqvarna 690977

Tappet-Valve

$

$

Not available

46

Husqvarna 790562

Camshaft

$

$

Currently unavailable

50

Husqvarna 695241

Manifold-Intake

$

$

Currently unavailable

51

Husqvarna 791677

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121,Included in Carburetor Gasket Set, Key. No. 977

$

$

Currently unavailable

53

Husqvarna 690951

Stud

Note: (Carburetor)

$

$

Not available

54

Husqvarna 699816

Screw

Note: (Intake Manifold)

$

$

Currently unavailable

54A

Husqvarna 695239

Screw

Note: (Intake Manifold)

$

$

Currently unavailable

146

Husqvarna 690979

Key-Timing

$

$

Currently unavailable

163

Husqvarna 691001

Gasket-Air Cleaner

$

$

Not available

188

Husqvarna 691108

Screw

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

212

Husqvarna 695238

Link-Throttle

$

$

Currently unavailable

213

Husqvarna 691021

Bracket-Choke Control

$

$

Not available

216

Husqvarna 691022

Link-Choke

$

$

Not available

219

Husqvarna 698231

Gear-Governor

$

$

Currently unavailable

220

Husqvarna 690412

Washer

Note: (Governor Lever)

$

$

Not available

222

Husqvarna 698761

Bracket-Control

$

$

Currently unavailable

250

Husqvarna 690957

Retainer-Breather

$

$

Not available

252

Husqvarna 690956

Collector-Oil

$

$

Not available

265

Husqvarna 691024

Clamp-Casing

$

$

Not available

267

Husqvarna 695134

Screw

Note: (Casing Clamp)

$

$

Currently unavailable

287

Husqvarna 691108

Screw

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

304

Husqvarna 695277

Housing-Blower

$

$

Currently unavailable

305

Husqvarna 691005

Screw

Note: (Blower Housing)

$

$

Not available

305A

Husqvarna 790690

Screw

Note: (Blower Housing)

$

$

Currently unavailable

415

Husqvarna 690283

Plug

Note: (Crankcase Cover/Sump)

$

$

Currently unavailable

415A

Husqvarna 690283

Plug

Note: (Intake Manifold)

$

$

Currently unavailable

431

Husqvarna 790816

Elbow-Intake

$

$

Currently unavailable

445

499486s

Filter-Air Cleaner Cartridge

$

$

Not available

447

Husqvarna 691003

Screw

Note: (Air Guide Cover)

$

$

Not available

447A

Husqvarna 691108

Screw

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 20+

0

467

Husqvarna 691008

Knob-Air Cleaner

$

$

Not available

467

Husqvarna 790697

Knob-Air Cleaner

$

$

Currently unavailable

523

Husqvarna 691036

Dipstick

$

$

Not available

524

Husqvarna 691032

Seal-Dipstick Tube

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

525

Husqvarna 691037

Tube-Dipstick

$

$

Not available

552

Husqvarna 690552

Bushing-Governor Crank

$

$

Not available

615

Husqvarna 698290

Retainer-Governor Shaft

$

$

Currently unavailable

617

Husqvarna 697891

Seal-O Ring

Note: (Intake Manifold)

$

$

Currently unavailable

654

Husqvarna 690958

Nut

Note: (Carburetor)

$

$

Not available

691

Husqvarna 790574

Seal-Governor Shaft

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Currently unavailable

703

Husqvarna 691010

Clip

$

$

Not available

718

Husqvarna 690959

Pin-Locating

$

$

Not available

741

Husqvarna 690980

Gear-Timing

$

$

Not available

750

Husqvarna 696999

Screw

Note: (Oil Pump Cover)

$

$

Currently unavailable

842

Husqvarna 691031

Seal-Dipstick/Tube

Note: Included in Engine Gasket Set, Key. No. 358

$

$

Not available

847

Husqvarna 499602

Dipstick/Tube Assembly

$

$

Not available

865

Husqvarna 691012

Cover-Air Guide

$

$

Not available

865A

Husqvarna 691014

Cover-Air Guide

$

$

Not available

865B

Husqvarna 691015

Cover-Air Guide

$

$

Not available

929

Husqvarna 691003

Screw

Note: (Choke Control Bracket)

$

$

Not available

943

Husqvarna 690589

Seal-O Ring

Note: (Oil Pump Cover); Included in Engine Gasket Set, Key. No. 358

$

$

Not available

965

Husqvarna 499613

Cover-Oil Pump

$

$

Not available

967

273638s

Filter-Pre Cleaner

$

$

Not available

968

Husqvarna 790689

Cover-Air Cleaner

$

$

Currently unavailable

1013

Husqvarna 690954

Nipple-Oil Filter

$

$

Not available

1017

Husqvarna 690770

Screen-Oil Pump

$

$

Not available

1024

Husqvarna 499054

Pump-Oil

$

$

Not available

1026

Husqvarna 690981

Rod-Push
(Superseded to 597785)

Note: (Steel)

$7.99

$

In Stock, Qty 20+

0

1026A

Husqvarna 690982

Rod-Push

Note: (Aluminum)

$

$

Not available

1027

492932s

Filter-Oil

$

$

Not available

1035

Husqvarna 691042

Shaft-Pump

$

$

Not available

1036

Husqvarna 792019

Label-Emissions

$

$

Currently unavailable

1058

Husqvarna 276245

Owner's Manual

$

$

Currently unavailable

1329

Husqvarna 4417770027

Replacement Engine

$

$

Currently unavailable

1330

Husqvarna 273521

Repair Manual

$

$

Currently unavailable
