917.279081 (960130007) - Craftsman Yard Tractor (2005-08) (Sears) Mower Lift Parts Diagram

Yard Tractor

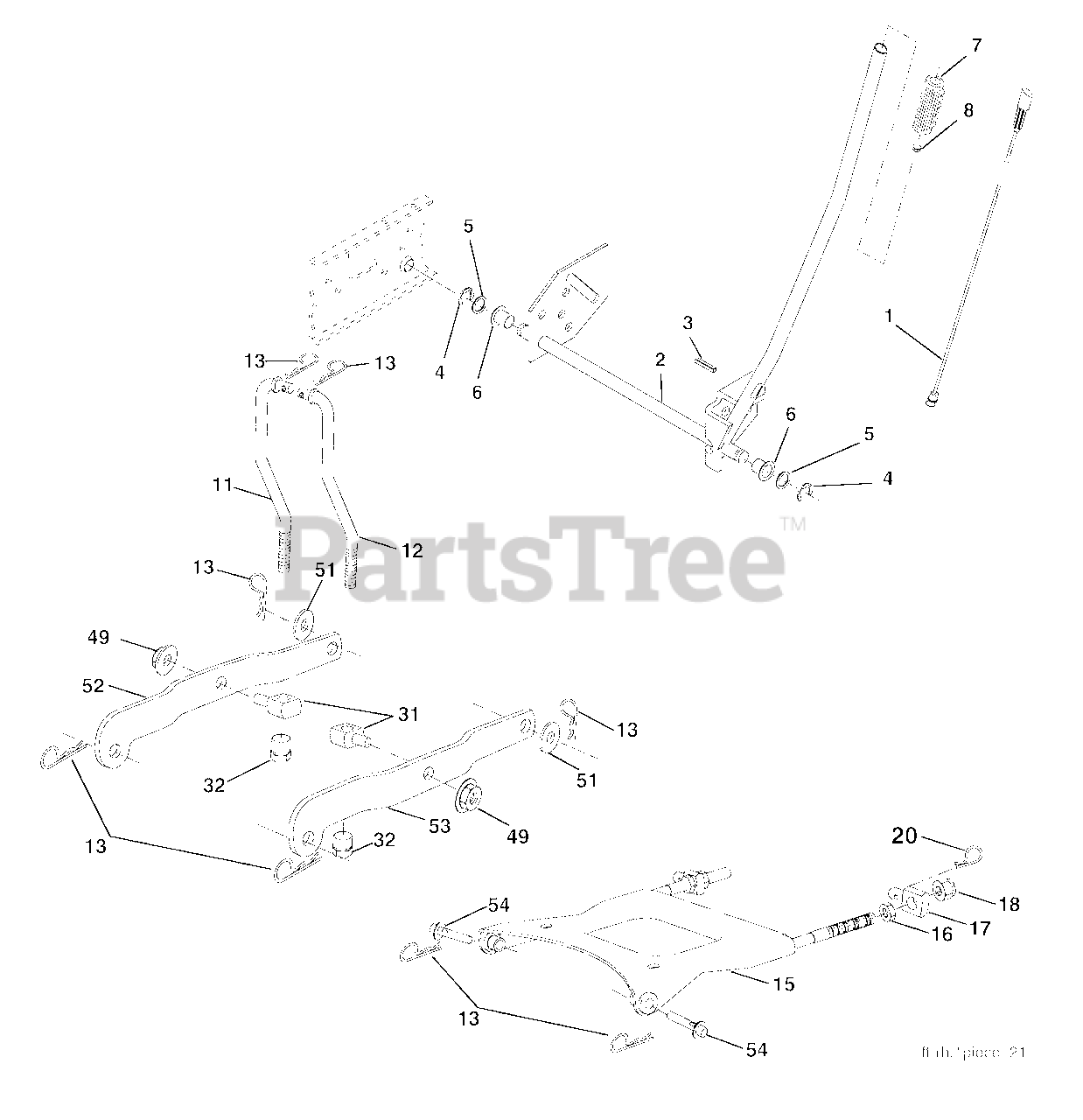

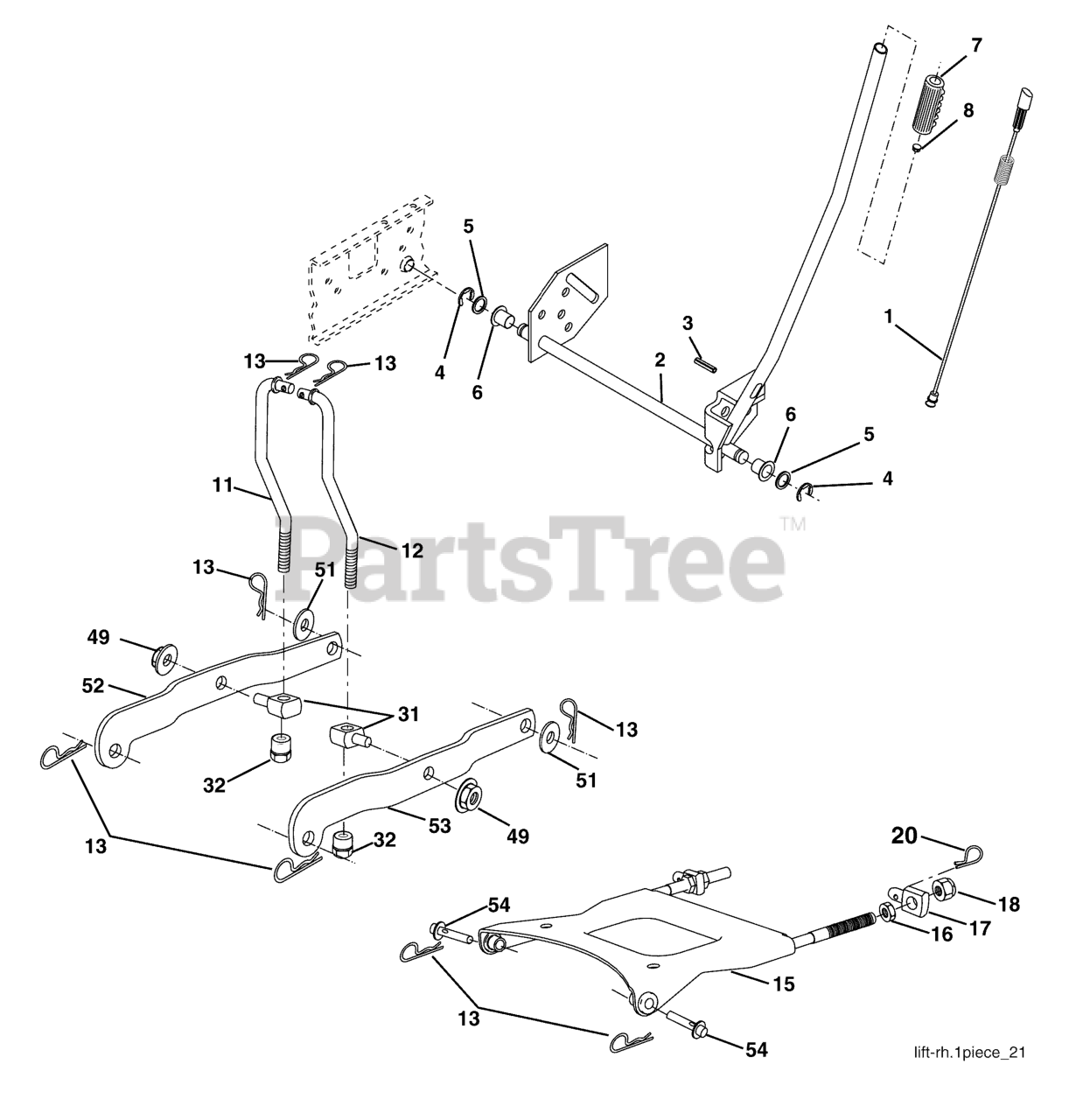

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532159460

Wire Asm Inner W/plunger 17 32

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

Shaft Asm Lift LH Inf Hgt P/L

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

Pin Groove 1 500 Zinc

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211621

Washer 21/32 x 1 x 21 Ga.

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

7

Husqvarna 532125631

Grip Handle

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger
(Superseded to 532125925)

$

$

Not available

11

Husqvarna 532175370

Link Lift LH

$

$

Not available

12

Husqvarna 532175371

Link Lift RH

$14.99

$

In Stock, only 1 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

15

Husqvarna 532175562

Plate Asm Suspension Front

$109.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873350800

Nut Jam Hex 1/2-13 unc

$

$

Not available

17

Husqvarna 532175689

Trunnion Blk Zinc

$

$

Not available

18

Husqvarna 873800800

Nut Lock W/wsh 1/2-13 unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532176205

Trunnion Suspension Arm

$7.99

$

In Stock, Qty 5

0

32

Husqvarna 532175994

Nut Lift Link 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0

52

Husqvarna 532175378

Arm Suspension Rear LH

$

$

Not available

53

Husqvarna 532175802

Arm Suspension Rear RH

$103.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532175560

Pin Flange

$13.99

$

In Stock, only 2 left!

0
