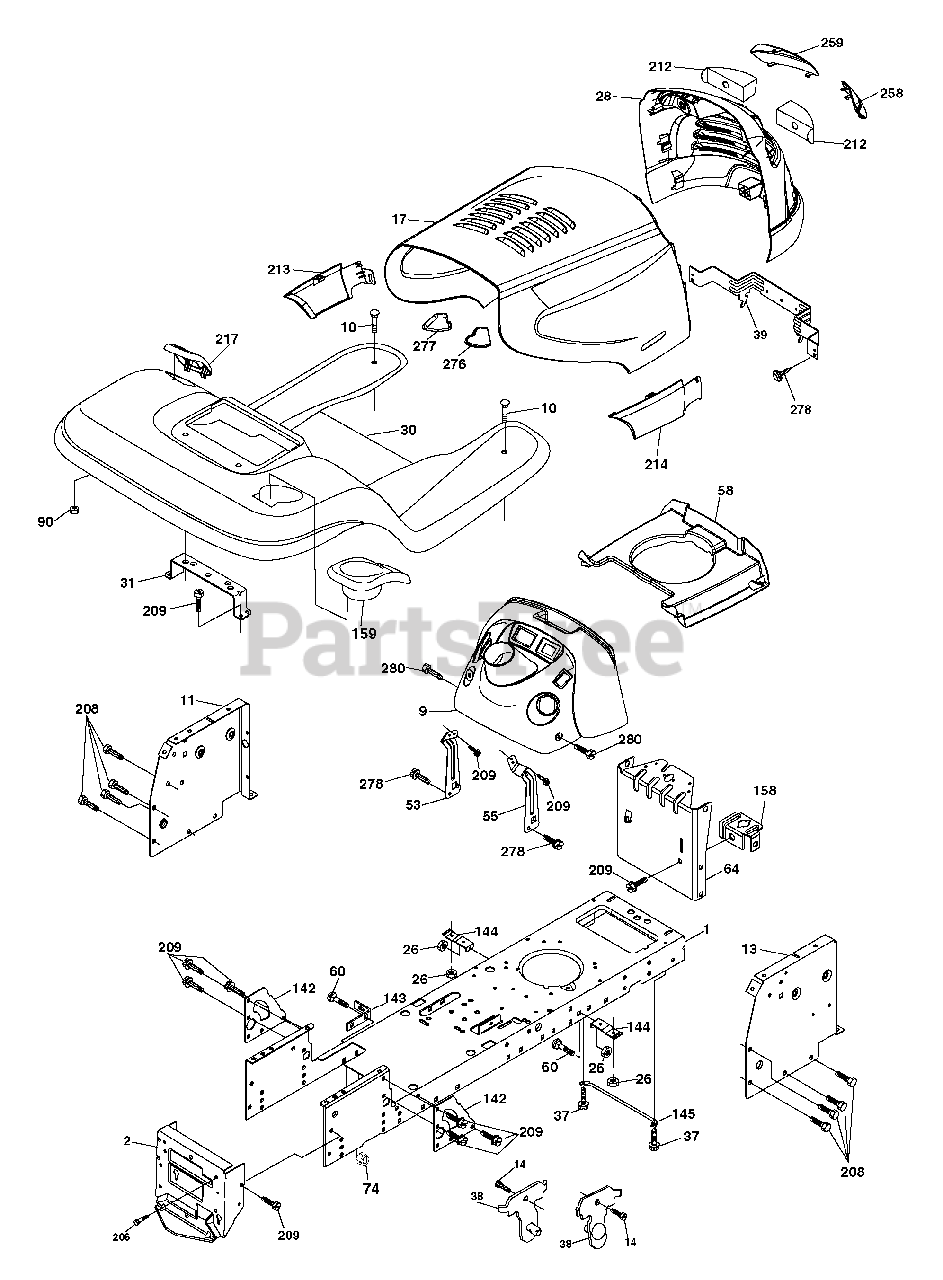

917.279060 (960130002) - Craftsman Yard Tractor (2005-03) (Sears) Chassis Parts Diagram

Yard Tractor

Chassis Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$43.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532195111

Dash

$47.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

Panel Dash Lh

$

$

Not available

13

Husqvarna 532181719

Panel Dash Rh
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532189977

Hood
(Superseded to 532188374)

$157.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532188269

Grille/Lens Asm.

Note: (Includes Key nos. 212, 258 and 259)

$157.99

$

In Stock, only 1 left!

0

30

Husqvarna 532194806

Fender Footrest
(Superseded to 532192814)

$

$

Not available

31

Husqvarna 532139976

Bracket Fender

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532174714

Bracket Pivot Hood
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532188373

Bracket Dash LH

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532188372

Bracket Dash RH

$

$

Not available

58

Husqvarna 532150127

Duct Air

$

$

Not available

60

Husqvarna 872140606

Bolt RDHD Sqnk 3/8-16 unc x 3/4

$

$

Not available

64

Husqvarna 532174997

Dash Lower STLT

$30.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16 unc

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut Self Thd Wsh - HD 1/4 Zinc

$7.99

$

In Stock, only 1 left!

0

142

Husqvarna 532175702

Plate Reinforcement STLT

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

Bracket Swaybar Chassis

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532175582

Bracket Footrest Step-thru

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

158

Husqvarna 532162037

Bracket Parking Brake

$

$

Not available

159

Husqvarna 532192404

Cupholder
(Superseded to 532191120)

$10.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0

208

Husqvarna 917670608

Screw Thdrl 3/8-16 x 1/2

$

$

Currently unavailable

209

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532188267

Insert Lens

$10.99

$

Usually ships in 3-10 days

0

213

Husqvarna 532189979

Skirt Grille LH
(Superseded to 532188266)

$7.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532189978

Skirt Grille RH
(Superseded to 532188265)

$7.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532185436

Console Fuel Window
(Superseded to 532179132)

$9.49

$

Usually ships in 3-10 days

0

258

Husqvarna 532189981

Lens RH
(Superseded to 532188263)

$18.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532189982

Lens LH
(Superseded to 532188264)

$18.99

$

In Stock, only 1 left!

0

276

Husqvarna 532189274

Bumper Hood RH

$7.99

$

Usually ships in 3-10 days

0

277

Husqvarna 532189275

Bumper Hood LH

$

$

Not available

278

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

280

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0
