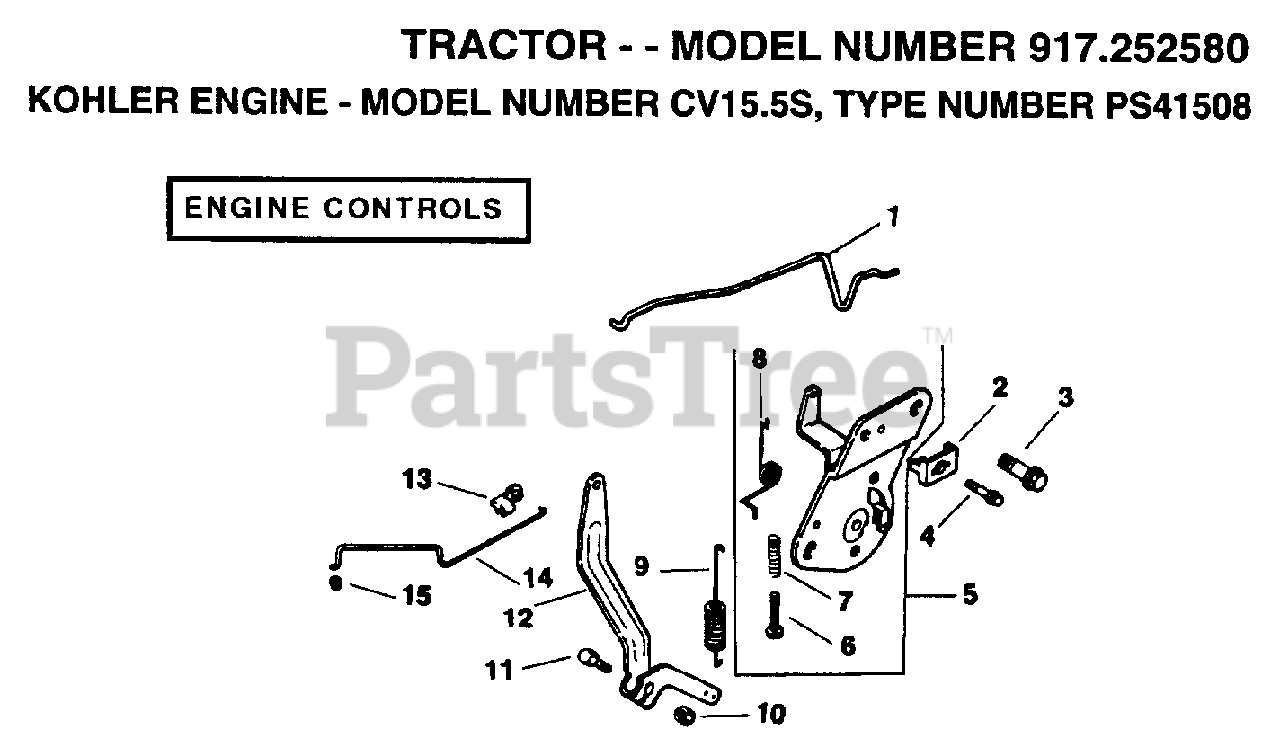

917.252580 - Craftsman Lawn Tractor (1999 & Before) ENGINE CONTROLS Parts Diagram

Lawn Tractor

ENGINE CONTROLS Parts Diagram

  • Title
1

Electrolux/AYP 12-079-07

LINKAGE, CHOKE

$

$

Not available

2

$

$

Not available

3

Electrolux/AYP SM-0645016

SCREW, HEX HEAD

$

$

Not available

4

Electrolux/AYP SM-0545016

SCREW, CABLE CLAMP

$

$

Not available

5

Electrolux/AYP 12-536-01

CONTROL, SPEED ASSEMBLY

$

$

Not available

$

$

Not available

7

Electrolux/AYP 12-089-11

SPRING, CHOKE ADJUST

$

$

Not available

8

Electrolux/AYP 12-089-04

SPRING, CHOKE RETURN

$

$

Not available

9

Electrolux/AYP 12-089-19

SPRING, GOVERNOR

$

$

Not available

10

Electrolux/AYP SM-0641060

NUT, GOVERNOR ARM

$

$

Not available

11

Electrolux/AYP SM-0642025

SCREW, GOVERNOR ARM

$

$

Not available

12

Electrolux/AYP 12-090-05

LEVER, GOVERNOR

$

$

Not available

$

$

Not available

14

Electrolux/AYP 12-079-01

LINKAGE, THROTTLE

$

$

Not available

$

$

Not available
