917.252580 - Craftsman Lawn Tractor (1999 & Before) ENGINE Parts Diagram

Lawn Tractor

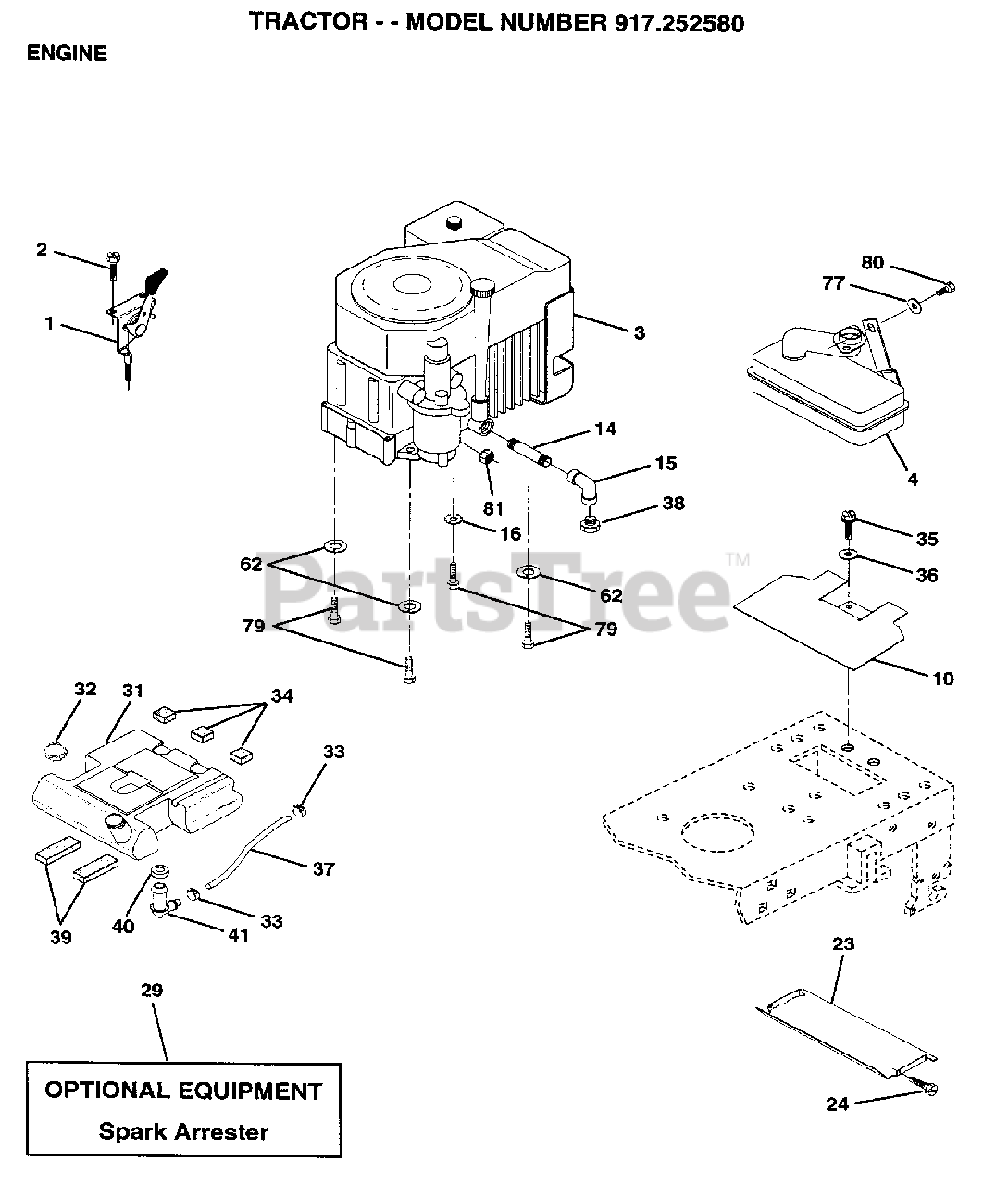

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 147025

SUB= 162156
(Superseded to 583046101)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 140846

ENG KOHLER MODEL NO. CV15S PS41508

$

$

Not available

4

Electrolux/AYP 137350

MUFFLER.LT.12.5
(Superseded to 532159420)

$121.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145552

SHIELD.HEAT.
(Superseded to 532145552)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

$

$

Not available

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

$

$

Not available

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 141069

SUB= 151346
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

REFER TO IMAGE

$

$

Not available

39

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

62

$

$

Not available

77

Electrolux/AYP STD551031

WASHER 5/16 X 3/4 X 16 GA.

$

$

Not available

$

$

Not available

$

$

Not available

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
