917.252580 - Craftsman Lawn Tractor (1999 & Before) BLOWER HOUSING AND BAFFLES Parts Diagram

Lawn Tractor

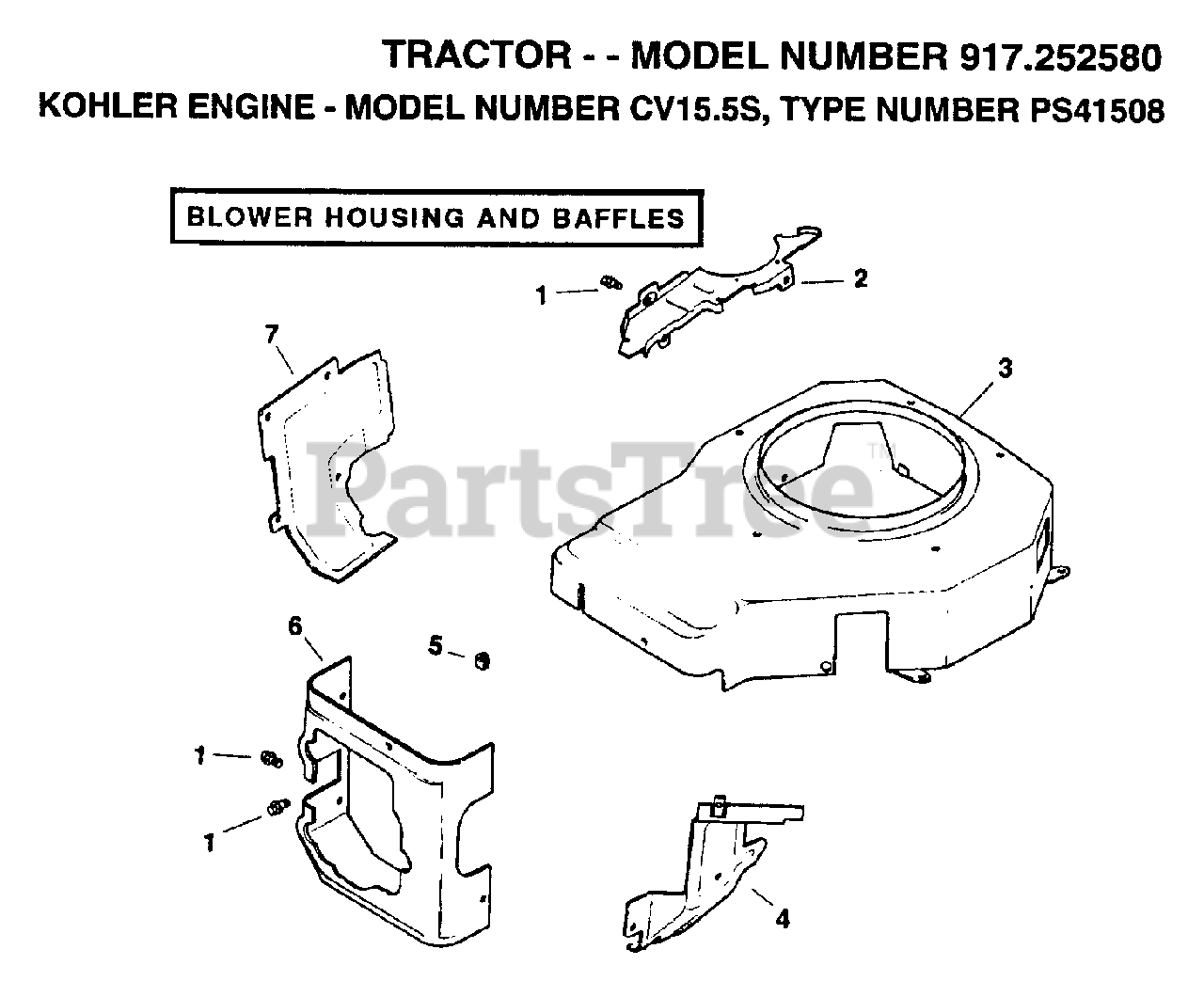

BLOWER HOUSING AND BAFFLES Parts Diagram

  • Title
1

Kohler M-0545010

SCREW, MOUNTING
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

2

Electrolux/AYP 12-146-07

PLATE, BLOWER HOUSING

$

$

Not available

3

Electrolux/AYP 12-027-14

HOUSING, BLOWER

$

$

Not available

4

Electrolux/AYP 12-063-05

BAFFLE, CARBURETOR

$

$

Not available

5

Electrolux/AYP 12-313-03

GROMMET, BLOWER HOUSING

$

$

Not available

6

Electrolux/AYP 12-063-08

BAFFLE, CYLINDER HEAD

$

$

Not available

7

Electrolux/AYP 12-063-01

BAFFLE, CYLINDER

$

$

Not available

Electrolux/AYP 12-113-51

DECAL, HORSEPOWER

$

$

Not available
