917.252580 - Craftsman Lawn Tractor (1999 & Before) AIR INTAKE Parts Diagram

Lawn Tractor

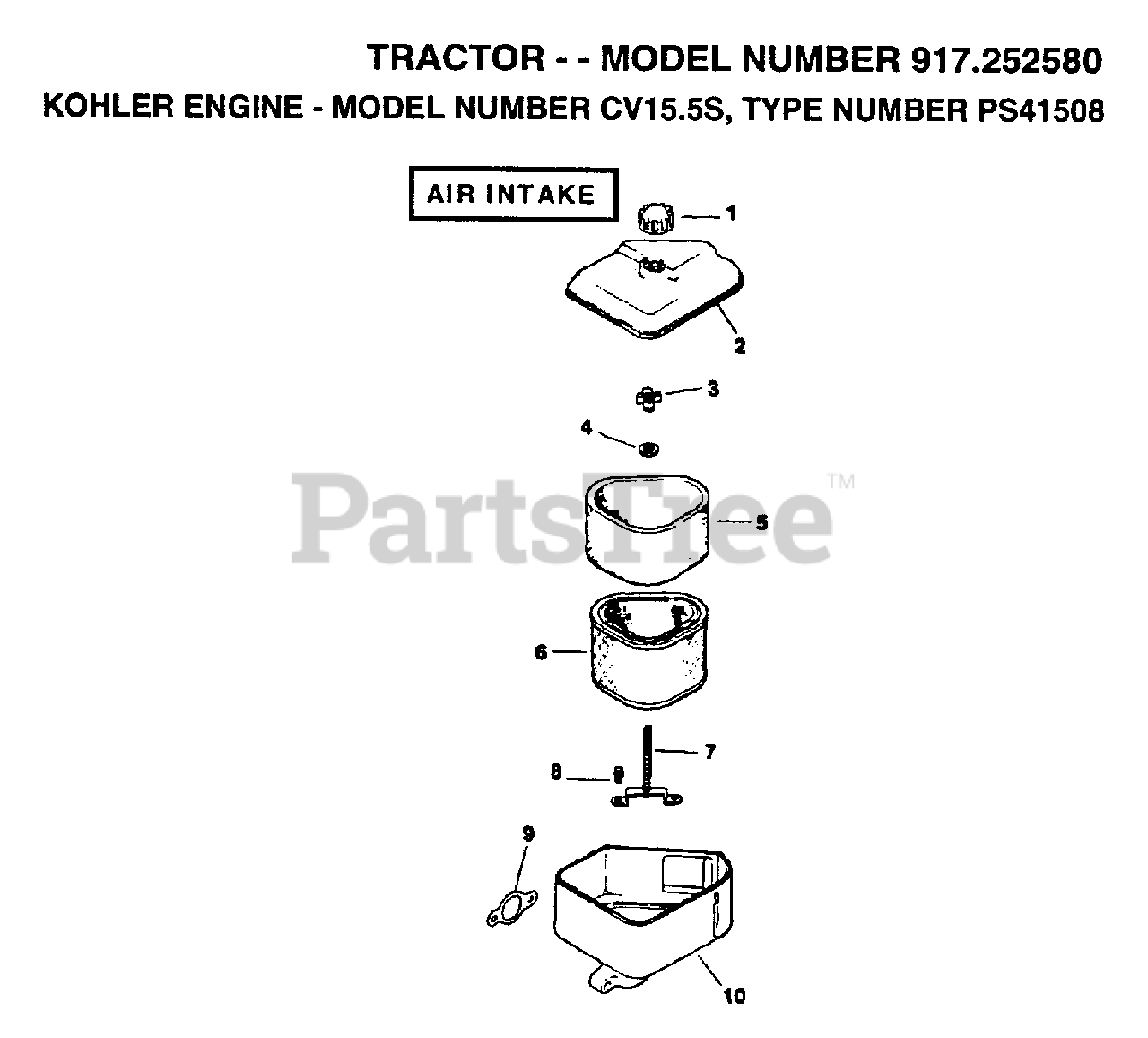

AIR INTAKE Parts Diagram

  • Title
1

Electrolux/AYP 12-341-01

KNOB, AIR CLEANER COVER

$

$

Not available

2

Electrolux/AYP 12-096-06

COVER, AIR CLEANER

$

$

Not available

$

$

Not available

4

Electrolux/AYP X-25-63

WASHER, PLAIN 1/4

$

$

Not available

5

Electrolux/AYP 12-083-08

PRECLEANER ELEMENT

$

$

Not available

6

Electrolux/AYP 12-083-05

ELEMENT, AIR CLEANER

$

$

Not available

7

Electrolux/AYP 12-072-03

STUD, MOUNTING PLATE

$

$

Not available

8

Electrolux/AYP 12-086-01

SCREW, MOUNTING PLATE STUD

$

$

Not available

9

Electrolux/AYP 12-041-02

GASKET, AIR CLEANER

$

$

Not available

10

Electrolux/AYP 12-094-01

BASE, AIR CLEANER

$

$

Not available

Electrolux/AYP 12-113-27

DECAL, AIR CLEANER

$

$

Not available
