917.252520 - Craftsman Lawn Tractor (1999 & Before) DECALS Parts Diagram

Lawn Tractor

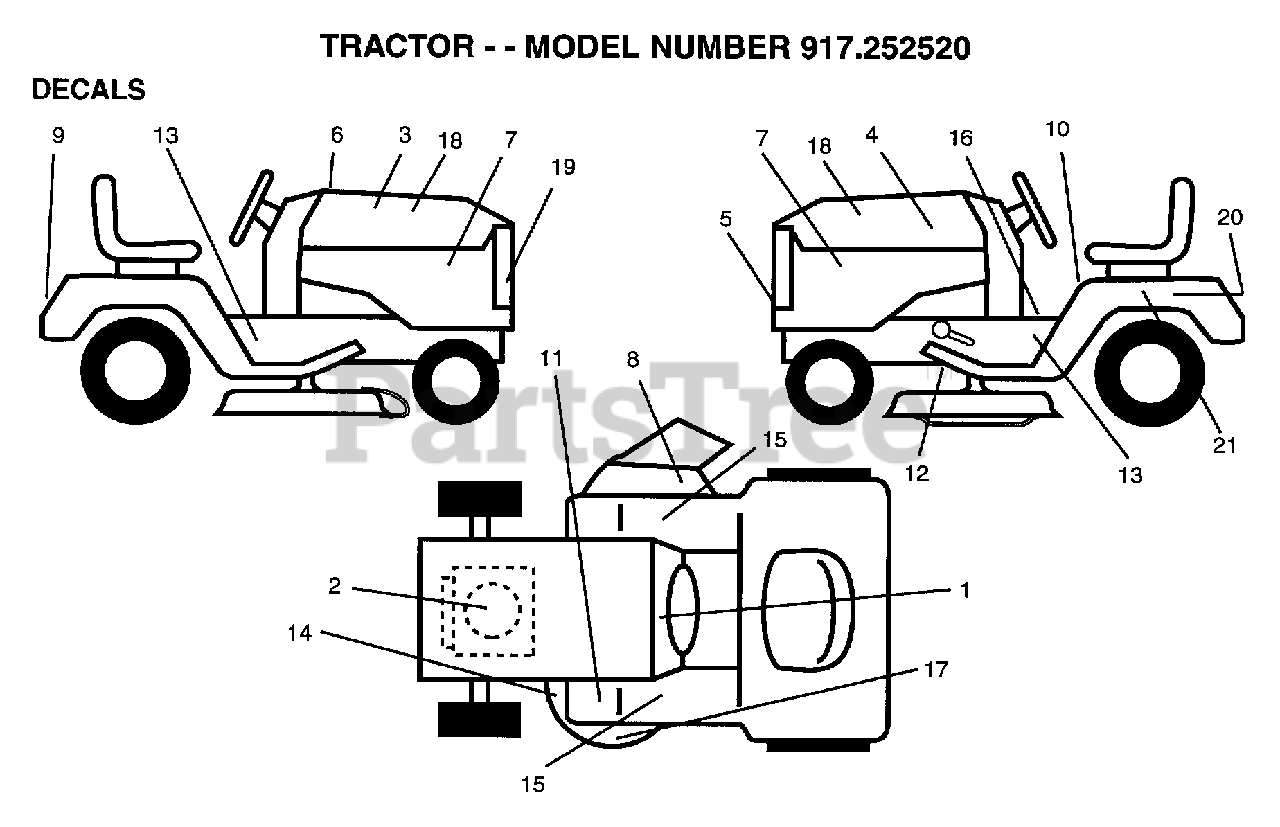

DECALS Parts Diagram

  • Title
1

Electrolux/AYP 138955

DECAL.DASH.INST.

$

$

Not available

2

Electrolux/AYP 272938

DECAL,B&S 15HP IC/GOLD OHV

$

$

Not available

3

Electrolux/AYP 143735

DECAL.HD.RH.CRAFT

$

$

Not available

4

Electrolux/AYP 143736

DECAL.HD.LH.CRAFT

$

$

Not available

5

Electrolux/AYP 132674

GRILL DECAL
(Superseded to 539132674)

$11.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 133644

DECAL
(Superseded to 426076)

$

$

Not available

7

Electrolux/AYP 142235

DECAL SIDE PAN IC

$

$

Not available

8

Electrolux/AYP 133178

MOWER DECAL

$

$

Not available

9

Electrolux/AYP 128314

SUB= 918128314

$

$

Not available

10

Electrolux/AYP 137537

SUB= 156439
(Superseded to 582985601)

$15.99

$

Usually ships in 3-10 days

0

$

$

Not available

12

Electrolux/AYP 146046

DECAL.BELT-V.SCHM
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 131473

CHASSIS DECAL

$

$

Not available

14

Electrolux/AYP 136832

DECAL
(Superseded to 532136832)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 145245

SUB= 918145245
(Superseded to 582964001)

$

$

Not available

16

Electrolux/AYP 140837

DECAL BRAK PARK
(Superseded to 532140837)

$

$

Not available

17

Electrolux/AYP 133179

DECAL MWR QC SYS

$

$

Not available

18

Electrolux/AYP 142234

DECAL INS HOOD

$

$

Not available

19

Electrolux/AYP 131265

DECAL LIGHTBOX

$

$

Not available

20

Electrolux/AYP 145003

DECAL.BTRY.SRS.EN

$

$

Not available

21

Electrolux/AYP 145023

DECAL.BTRY.CRAFT.
(Superseded to 582963101)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 145247

FASTNER.POPIN.(8)
(Superseded to 532145247)

$

$

Not available

Electrolux/AYP 138311

DECAL HANDLE LIFT
(Superseded to 581724901)

$15.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 146831

OWNER'S MANUAL, ENGLISH
(Superseded to 917146831)

$11.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 146832

OWNER'S MANUAL, SPANISH
(Superseded to 917146832)

$5.99

$

Usually ships in 3-10 days

0
