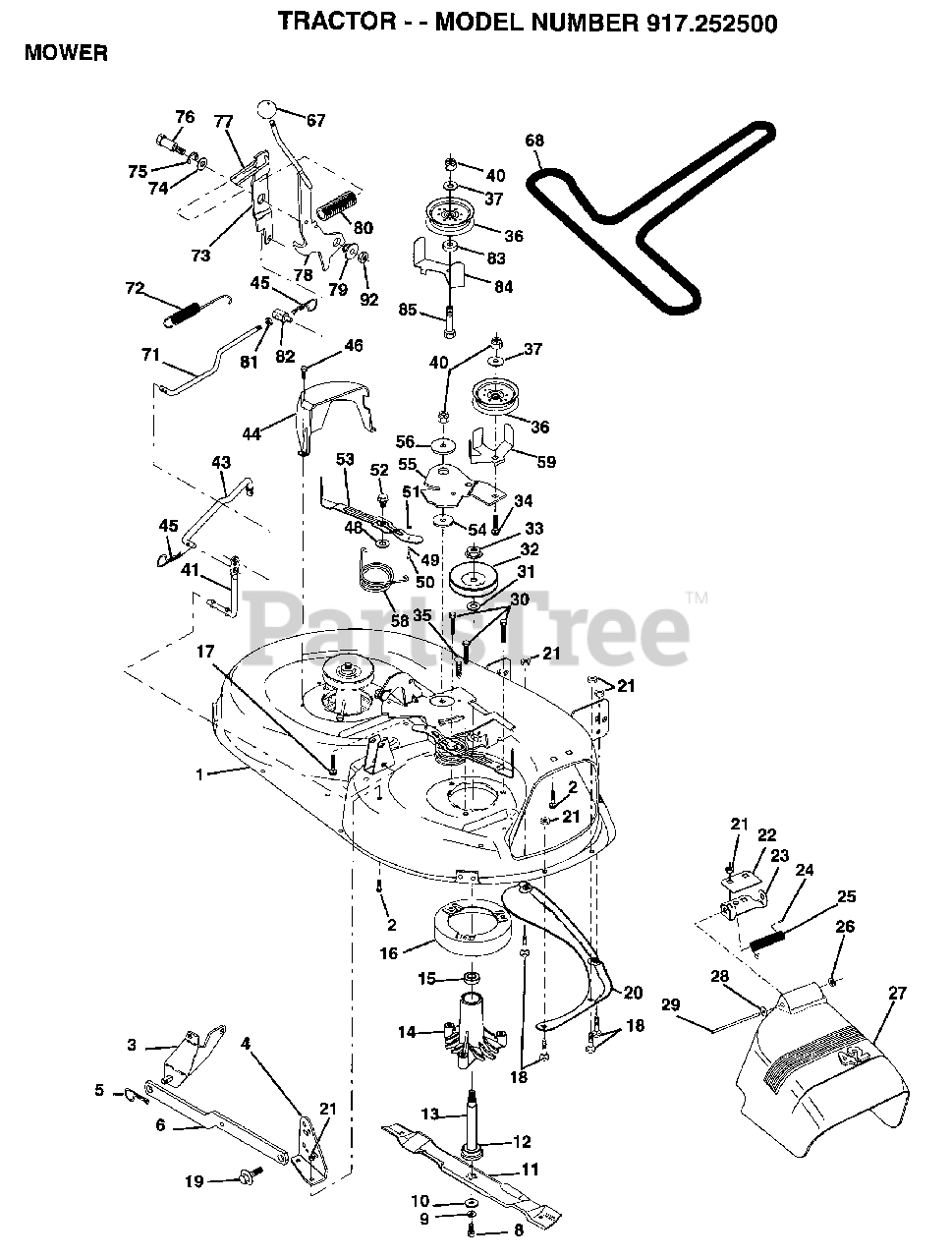

917.252500 - Craftsman Lawn Tractor (1999 & Before) MOWER Parts Diagram

Lawn Tractor

MOWER Parts Diagram

  • Title
1

Electrolux/AYP 144393

DECK.WELD.42.
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 138440

BRKT DECK SW BAR
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP STD624008

RETAINER RING

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 134149

"BLADE.42"" MULCHER"
(Superseded to 532134149)

$

$

Not available

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110610

BOLT RDHD 3/8-16
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 136888

SUB= 918136888
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

$

$

Not available

35

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 140083

ROD CLUTCH W/NIBS
(Superseded to 532140083)

$

$

Not available

44

Electrolux/AYP 140088

GUARD MAND LH BLK
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

$

$

Not available

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

48

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 133940

SUB= 151785
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

$

$

Not available

52

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 131845

BRAKE PAD ARM ASM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 140084

SUB= 151785
(Superseded to 532140084)

$

$

Not available

56

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 140086

SPRING TORSN BRAK
(Superseded to 532140086)

$6.49

$

In Stock, only 1 left!

0

59

Electrolux/AYP 141043

GUARD IDLER TUV
(Superseded to 532141043)

$

$

Not available

67

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 144200

BELT.V.T-PATH
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 142427

ROD CLUTCH 38/42
(Superseded to 532142427)

$

$

Not available

72

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

73

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$2.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

75

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

77

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

78

Electrolux/AYP 140334

SUB= 154810

$

$

Not available

79

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

80

Electrolux/AYP 128759

SUB= 918128759
(Superseded to 532153701)

$

$

Not available

81

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Electrolux/AYP 142028

TRUNION ADJ
(Superseded to 532142028)

$

$

Not available

83

Electrolux/AYP 120958X

WASHER
(Superseded to 532120958)

$

$

Not available

84

Electrolux/AYP 144394

SUB= 156084
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP STD533725

BOLT CARRIAGE

$

$

Not available

92

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 5

0

Electrolux/AYP 145411

SUB= 164963
(Superseded to 532164963)

$728.99

$

Usually ships in 3-10 days

0
