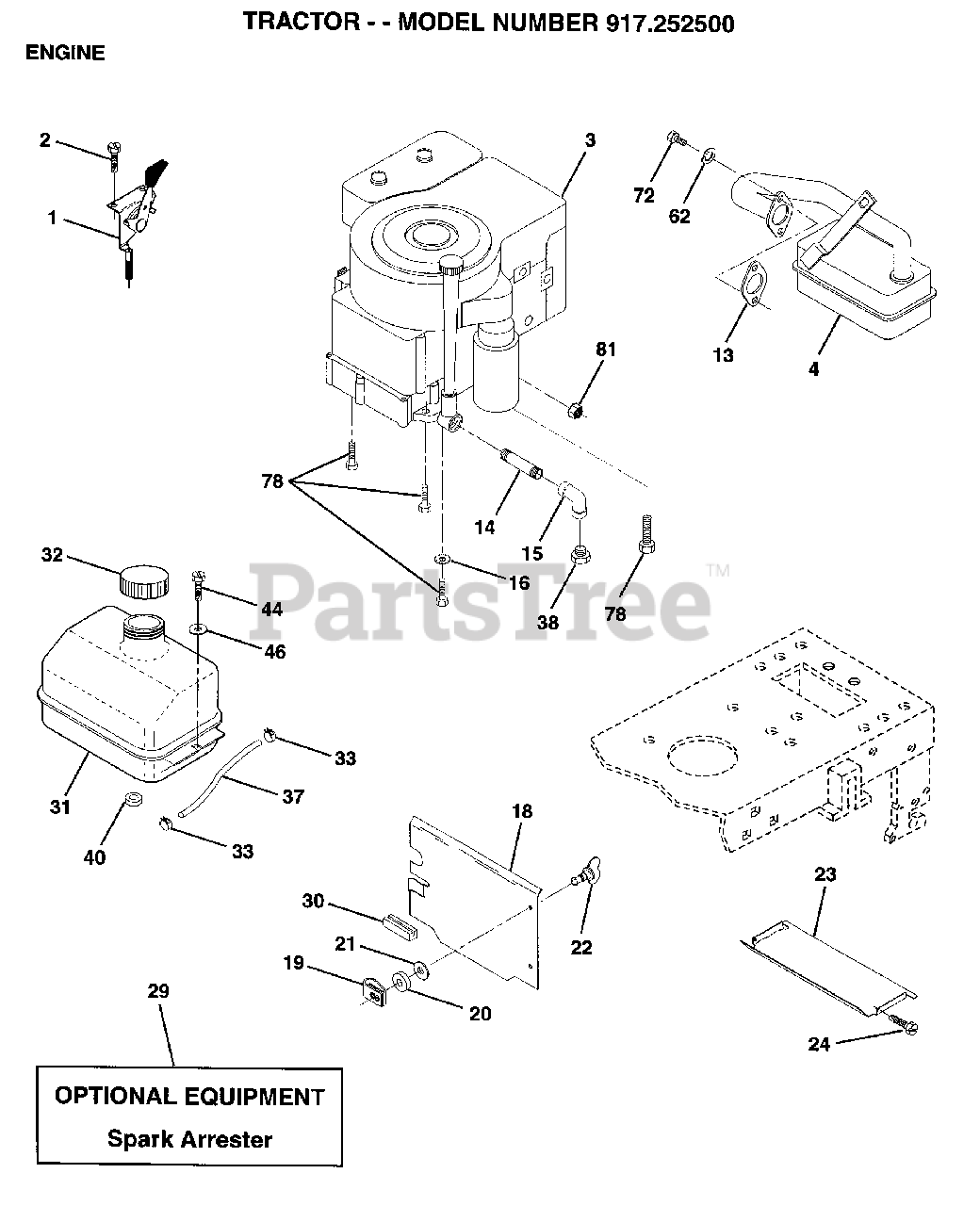

917.252500 - Craftsman Lawn Tractor (1999 & Before) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132759

SUB= 918132759
(Superseded to 583004601)

$24.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 140591

ENGINE SAM B&S DMD 13EEC ICGLD

$

$

Not available

4

Electrolux/AYP 137348

MUFFLER
(Superseded to 532137348)

$102.99

$

In Stock, only 1 left!

0

13

$

$

Not available

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 136718

SHIELD HEAT
(Superseded to 532136718)

$

$

Not available

19

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

30

Electrolux/AYP 127057X

SUB= 532127057

$

$

Not available

31

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 137040

LINE FUEL
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

REFER TO IMAGE

$

$

Not available

40

Murray 124028X

SUB= 532124028

$

$

Not available

44

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

78

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
