917.250550 - Craftsman Lawn Tractor (1999 & Before) CYLINDER HEAD / VALVE / BREATHER Parts Diagram

Lawn Tractor

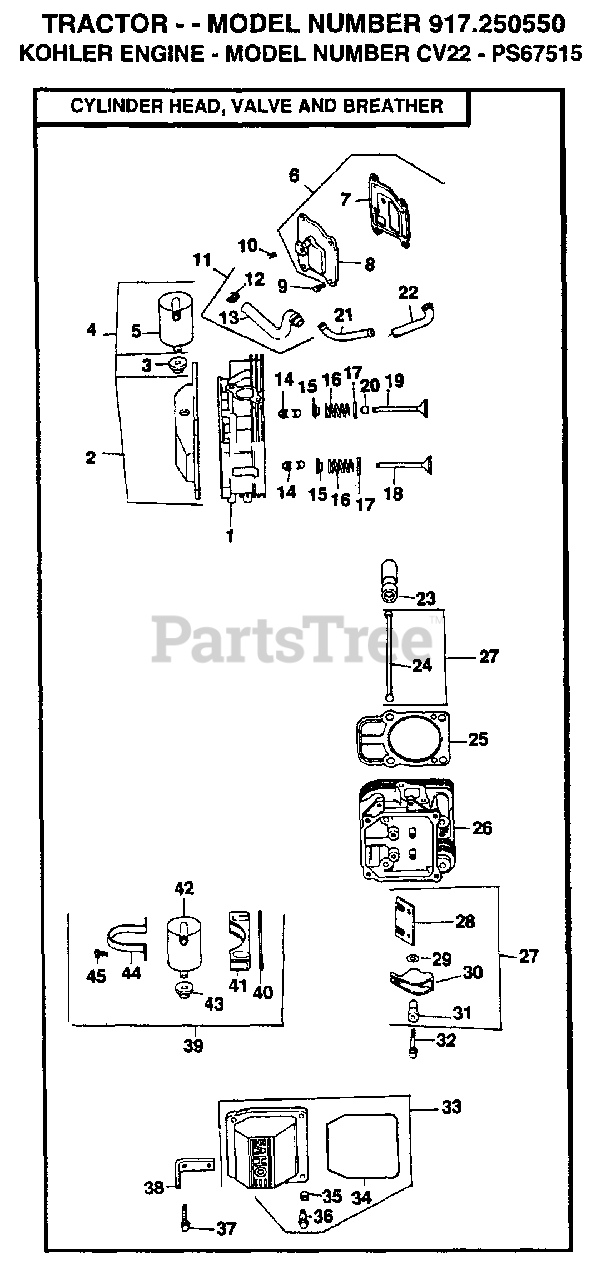

CYLINDER HEAD / VALVE / BREATHER Parts Diagram

  • Title
1

Electrolux/AYP 24-318-11

HEAD ASSEMBLY

$

$

Not available

2

Electrolux/AYP 24-096-16

COVER, ROCKER

$

$

Not available

3

Electrolux/AYP 24-755-20

KIT, BREATHER

$

$

Not available

4

Electrolux/AYP 25-313-02

GROMMET, RUBBER

$

$

Not available

5

Electrolux/AYP 24-096-15

COVER, BREATHER

$

$

Not available

$

$

Not available

7

Electrolux/AYP SM-0645020

SCREW, FUEL PUMP

$

$

Not available

$

$

Not available

9

Electrolux/AYP 12-755-03

KIT, RETAINER

$

$

Not available

10

Electrolux/AYP 12-173-01

CAP, VALVE SPRING

$

$

Not available

11

Electrolux/AYP 24-089-02

SPRING, VALVE

$

$

Not available

$

$

Not available

13

Electrolux/AYP 24-016-01

VALVE, EXHAUST, STANDARD SIZE

$

$

Not available

14

Electrolux/AYP 24-017-01

VALVE, INTAKE, STANDARD SIZE

$

$

Not available

15

Electrolux/AYP 24-032-05

SEAL, VALVE STEM

$

$

Not available

$

$

Not available

$

$

Not available

18

Electrolux/AYP 12-351-01

LIFTER, VALVE

$

$

Not available

$

$

Not available

20

Electrolux/AYP 24-041-08

GASKET, CYLINDER HEAD

$

$

Not available

21

Electrolux/AYP 24-318-12

HEAD ASSEMBLY

$

$

Not available

$

$

Not available

$

$

Not available

24

Electrolux/AYP M-0640034

SCREW, ROCKER ARM

$

$

Not available

25

Electrolux/AYP 25-096-12

No Desciption for Part

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available
